Wire Rings

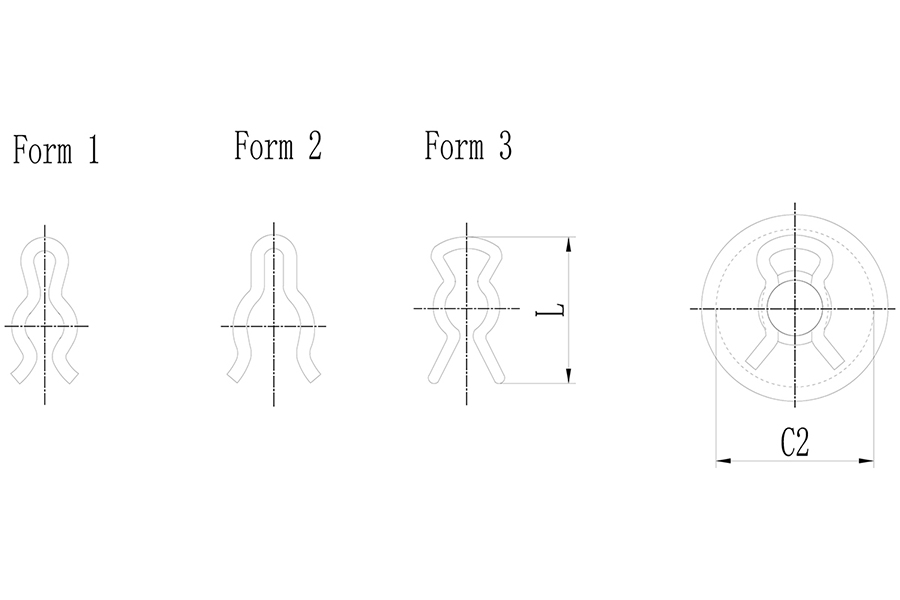

Image may differ from product. See technical specification for details.

Search for the bearing model you need

Wire Rings

Filters

NO. Product Product Number Shaft diameter Groove width (m) Thickness (T)
1 A1200 A1200 YHE7 0.125 inch 0.036 inch 0.032 dia.
2 A1200 A1200 YHE11 0.156 inch 0.036 inch 0.032 sq.
3 A1200 A1200 YHE13 0.188 inch 0.040 inch 0.036 dia.
4 A1200 A1200 YHE14 0.188 inch 0.036 inch 0.032 sq.
5 A1200 A1200 YHE15 0.219 inch 0.052 inch 0.048 sq.
6 A1200 A1200 YHE17 0.219 inch 0.036 inch 0.032 sq.
7 A1200 A1200 YHE19 0.250 inch 0.044 inch 0.040 sq.
8 A1200 A1200 YHE21 0.250 inch 0.036 inch 0.032 sq.
9 A1200 A1200 YHE22 0.266 inch 0.044 inch 0.040 sq.
10 A1200 A1200 YHE23 0.281 inch 0.052 inch 0.048 dia.
11 A1200 A1200 YHE25 0.313 inch 0.044 inch 0.040 sq.
12 A1200 A1200 YHE34 0.375 inch 0.044 inch 0.040 sq.
13 A1200 A1200 YHE43 0.500 inch 0.060 inch 0.056 sq.
14 A1100 A1100 YHP8 0.172 inch 0.026 inch 0.022 dia.
15 A1100 A1100 YHP12 0.218 inch 0.040 inch 0.036 dia.
16 A1100 A1100 YHP15 0.234 inch 0.040 inch 0.036 sq.
17 A1100 A1100 YHP18 0.250 inch 0.040 inch 0.036 dia.
18 A1100 A1100 YHP21 0.297 inch 0.040 inch 0.040 dia.
19 A1100 A1100 YHP28 0.438 inch 0.060 inch 0.056 dia.
20 A1100 A1100 YHP37 0.531 inch 0.060 inch 0.056 dia.
21 A1100 A1100 YHP43 0.562 inch 0.060 inch 0.056 dia.
22 A1100 A1100 YHP50 0.656 inch 0.068 inch 0.064 dia.
