Rings For Radial Assembly

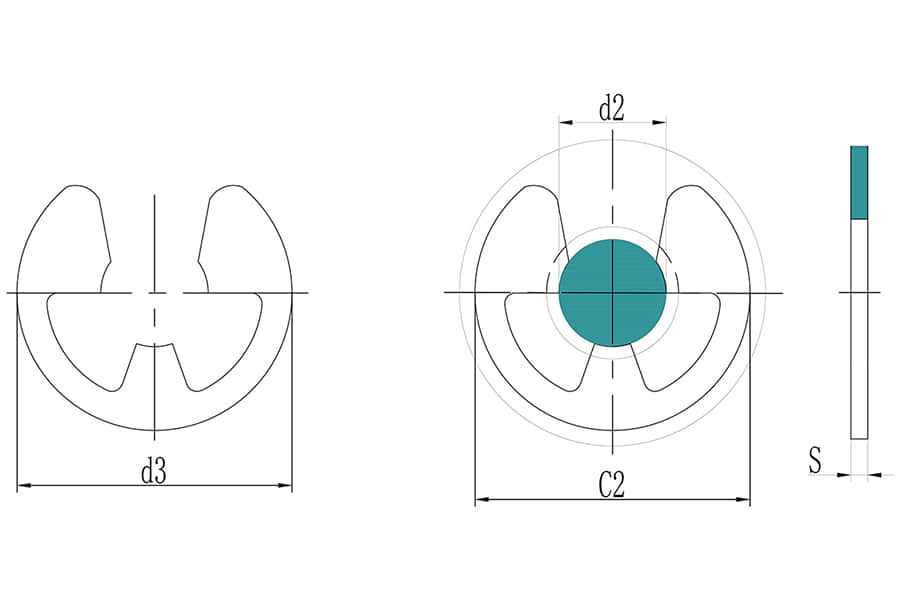

Image may differ from product. See technical specification for details.

Search for the bearing model you need

Rings For Radial Assembly

Filters

NO. Product Product Number Shaft diameter Thickness (T) Weight
1 DIN6799 DIN6799 D1500 RA1.2 1.5 mm 0.3 mm 0.009 g
2 DIN6799 DIN6799 D1500 RA1.5 2.0 mm 0.4 mm 0.021 g
3 DIN6799 DIN6799 D1500 RA1.9 2.5 mm 0.5 mm 0.040 g
4 DIN6799 DIN6799 D1500 RA2.3 3.0 mm 0.6 mm 0.069 g
5 DIN6799 DIN6799 D1500 RA3.2 4.0 mm 0.6 mm 0.088 g
6 DIN6799 DIN6799 D1500 RA4.0 4.0 mm 0.7 mm 0.158 g
7 DIN6799 DIN6799 D1500 RA5.0 7.0 mm 0.7 mm 0.236 g
8 DIN6799 DIN6799 D1500 RA6.0 8.0 mm 0.7 mm 0.255 g
9 DIN6799 DIN6799 D1500 RA7.0 9.0 mm 0.9 mm 0.474 g
10 DIN6799 DIN6799 D1500 RA8.0 10.0 mm 1.0 mm 0.660 g
11 DIN6799 DIN6799 D1500 RA9.0 11.0 mm 1.1 mm 1.000 g
12 DIN6799 DIN6799 D1500 RA10.0 12.0 mm 1.2 mm 1.120 g
13 DIN6799 DIN6799 D1500 RA12.0 15.0 mm 1.3 mm 1.770 g
14 DIN6799 DIN6799 D1500 RA15.0 20.0 mm 1.5 mm 3.370 g
15 DIN6799 DIN6799 D1500 RA19.0 25.0 mm 1.75 mm 6.420 g
16 DIN6799 DIN6799 D1500 RA24.0 30.0 mm 2.00 mm 8.550 g
17 N1500 N1500 NRF006 0.062 inch 0.010 inch 0.000028 lbs
18 N1500 N1500 NRA006 0.062 inch 0.010 inch 0.000030 lbs
19 N1500 N1500 NRG006 0.062 inch 0.020 inch 0.000094 lbs
20 N1500 N1500 NRF009 0.094 inch 0.015 inch 0.0001 lbs
21 N1500 N1500 NRA009 0.094 inch 0.015 inch 0.000058 lbs
22 N1500 N1500 NRF011 0.110 inch 0.015 inch 0.00031 lbs
23 N1500 N1500 NRA012 0.125 inch 0.015 inch 0.000087 lbs
24 N1500 N1500 NRF014 0.140 inch 0.015 inch 0.000060 lbs
25 N1500 N1500 NRG014 0.140 inch 0.015 inch 0.0001 lbs
26 N1500 N1500 NRA014 0.140 inch 0.025 inch 0.000210 lbs
27 N1500 N1500 NRA015 0.156 inch 0.025 inch 0.000210 lbs
28 N1500 N1500 NRF017 0.172 inch 0.025 inch 0.00024 lbs
29 N1500 N1500 NRF018 0.188 inch 0.025 inch 0.00045 lbs
30 N1500 N1500 NRA018 0.188 inch 0.025 inch 0.00029 lbs
31 N1500 N1500 NRA021 0.219 inch 0.025 inch 0.00047 lbs
32 N1500 N1500 NRA025 0.250 inch 0.025 inch 0.00076 lbs
33 N1500 N1500 NRF031 0.312 inch 0.025 inch 0.00057 lbs
34 N1500 N1500 NRA037 0.375 inch 0.035 inch 0.0015 lbs
35 N1500 N1500 NRA043 0.438 inch 0.035 inch 0.0015 lbs
36 N1500 N1500 NRF043 0.438 inch 0.035 inch 0.001 lbs
37 N1500 N1500 NRA050 0.500 inch 0.042 inch 0.0025 lbs
38 N1500 N1500 NRA062 0.625 inch 0.042 inch 0.0032 lbs
39 N1500 N1500 NRF074 0.744 inch 0.050 inch 0.0043 lbs
40 N1500 N1500 NRA075 0.750 inch 0.050 inch 0.0058 lbs
41 N1500 N1500 NRA087 0.875 inch 0.050 inch 0.0076 lbs
42 N1500 N1500 NRF098 0.984 inch 0.050 inch 0.0092 lbs
43 N1500 N1500 NRF188 1.188 inch 0.062 inch 0.0113 lbs
44 N1500 N1500 NRF137 1.375 inch 0.062 inch 0.0154 lbs
45 9133 9133 NRL2 2 mm 0.25 mm 0.02 g
46 9133 9133 NRL2.5 2.5 mm 0.40 mm 0.04 g
47 9133 9133 NRL3 3 mm 0.40 mm 0.05 g
48 9133 9133 NRL4 4 mm 0.60 mm 0.10 g
49 9133 9133 NRL4.5 4.5 mm 0.60 mm 0.13 g
50 9133 9133 NRL5 5 mm 0.60 mm 0.14 g
51 9133 9133 NRL6 6 mm 0.60 mm 0.18 g
52 9133 9133 NRL7 7 mm 0.60 mm 0.20 g
53 9133 9133 NRL8 8 mm 0.60 mm 0.24 g
54 9133 9133 NRL9 9 mm 0.80 mm 0.39 g
55 9133 9133 NRL10 10 mm 0.80 mm 0.45 g
56 9133 9133 NRL11 11 mm 0.80 mm 0.56 g
57 9133 9133 NRL12 12 mm 0.80 mm 0.58 g
58 9133 9133 NRL13 13 mm 1.00 mm 0.82 g
59 9133 9133 NRL14 14 mm 1.00 mm 0.95 g
60 9133 9133 NRL15 15 mm 1.00 mm 1.04 g
61 9133 9133 NRL16 16 mm 1.00 mm 1.11 g
62 9133 9133 NRL17 17 mm 1.00 mm 1.29 g
63 9133 9133 NRL18 18 mm 1.00 mm 1.47 g
64 9133 9133 NRL19 19 mm 1.20 mm 1.76 g
65 9133 9133 NRL20 20 mm 1.20 mm 2.12 g
66 9133 9133 NRL22 22 mm 1.20 mm 2.30 g
67 9133 9133 NRL25 25 mm 1.20 mm 2.71 g
68 9133 9133 NRL30 30 mm 1.50 mm 3.00 g
69 9133 9133 NRL35 35 mm 1.50 mm 3.50 g
70 M1800 M1800 H3 3 mm 0.40 mm 0.02 g
71 M1800 M1800 H4 4 mm 0.40 mm 0.04 g
72 M1800 M1800 H5 5 mm 0.60 mm 0.08 g
73 M1800 M1800 H6 6 mm 0.70 mm 0.11 g
74 M1800 M1800 H6.5 6.5 mm 0.70 mm 0.12 g
75 M1800 M1800 H7 7 mm 0.80 mm 0.13 g
76 M1800 M1800 H8 8 mm 0.80 mm 0.17 g
77 M1800 M1800 H9 9 mm 1.00 mm 0.22 g
78 M1800 M1800 H10 10 mm 1.00 mm 0.26 g
79 M1800 M1800 H11 11 mm 1.00 mm 0.29 g
80 M1800 M1800 H12 12 mm 1.00 mm 0.32 g
81 M1800 M1800 H13 13 mm 1.00 mm 0.36 g
82 M1800 M1800 H14 14 mm 1.00 mm 0.40 g
83 M1800 M1800 H15 15 mm 1.00 mm 0.46 g
84 M1800 M1800 H16 16 mm 1.00 mm 0.54 g
85 M1800 M1800 H17 17 mm 1.00 mm 0.64 g
86 M1800 M1800 H18 18 mm 1.20 mm 0.72 g
87 M1800 M1800 H19 19 mm 1.20 mm 0.80 g
88 M1800 M1800 H20 20 mm 1.20 mm 0.87 g
89 M1800 M1800 H22 22 mm 1.20 mm 1.10 g
90 M1800 M1800 H23 23 mm 1.20 mm 1.15 g
91 M1800 M1800 H24 24 mm 1.20 mm 1.52 g
92 M1800 M1800 H25 25 mm 1.20 mm 1.74 g
93 M1800 M1800 H26 26 mm 1.20 mm 1.88 g
94 M1800 M1800 H28 28 mm 1.50 mm 2.32 g
95 M1800 M1800 H30 30 mm 1.50 mm 2.43 g
96 M1800 M1800 H32 32 mm 1.50 mm 3.02 g
97 M1800 M1800 H35 35 mm 1.50 mm 3.30 g
98 M1800 M1800 H36 36 mm 1.75 mm 4.40 g
99 M1800 M1800 H38 38 mm 1.75 mm 4.62 g
100 M1800 M1800 H40 40 mm 1.75 mm 5.05 g
