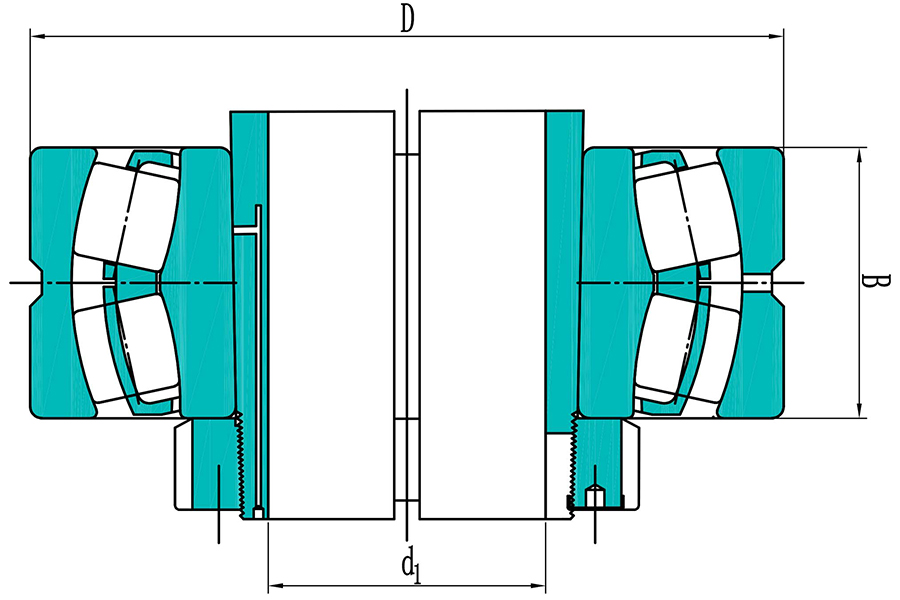

Double row Spherical roller bearing with an adapter sleeve

Image may differ from product. See technical specification for details.

Standard

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh,DIN / VDEh

Inner ring diameter

20mm-1000mm

Inner ring diameter

52mm-1580mm

Weight

0.3kg-4340kg

Material

52100/100Cr6/SUJ2/20Cr2Ni4A

Brand

QIBR/OEM/Neutral

Package

QIBR/Standard Industrial Package/OEM

Applications

Conveyor, crushers, screens, conveyors, Paper machines, wind turbine, rolling mills, continuous casting machines

Double row Spherical roller bearing with an adapter sleeve

Filters

NO. Product Product Number Adapter sleeve Basic dynamic load rating Inner diameter (d) Outer diameter (D) Overall width (B) Weight
1 22205 22205 EK+H 305 H 305 49.9 KN 52 mm 18 mm 0.33 kg
2 22206 22206 EK+H 306 H 306 66.1 KN 62 mm 20 mm 0.39 kg
3 22207 22207 EK+H 307 H 307 88.8 KN 72 mm 23 mm 0.59 kg
4 22208 22208 EK+H 308 H 308 98.5 KN 80 mm 23 mm 0.68 kg
5 BS2-2208-2RSK/VT143+H BS2-2208-2RSK/VT143+H 2308 E H 2308 98.5 KN 80 mm 28 mm 0.8 kg
6 21308 21308 EK+H 308 H 308 107 KN 90 mm 23 mm 0.92 kg
7 22308 22308 EK+H 2308 H 2308 155 KN 90 mm 33 mm 1.25 kg
8 22209 22209 EK+H 309 H 309 104 KN 85 mm 23 mm 0.81 kg
9 BS2-2209-2RSK/VT143+H BS2-2209-2RSK/VT143+H 309 E H 309 E 104 KN 85 mm 28 mm 0.9 kg
10 21309 21309 EK+H 309 H 309 129 KN 100 mm 25 mm 1.2 kg
11 22309 22309 EK+H 2309 H 2309 190 KN 100 mm 36 mm 1.7 kg
12 22210 22210 EK+H 310 H 310 107 KN 90 mm 23 mm 0.9 kg
13 BS2-2210-2RSK/VT143+H BS2-2210-2RSK/VT143+H 310 E H 310 E 107 KN 90 mm 28 mm 1.0 kg
14 21310 21310 EK+H 310 H 310 159 KN 110 mm 27 mm 1.6 kg
15 22310 22310 EK+H 2310 H 2310 228 KN 110 mm 40 mm 2.25 kg
16 22211 22211 EK+H 311 H 311 129 KN 100 mm 25 mm 1.1 kg
17 BS2-2211-2RSK/VT143/ BS2-2211-2RSK/VT143 H 311 E 129 KN 100 mm 31 mm 1.3 kg
18 21311 21311 EK+H 311 H 311 159 KN 120 mm 29 mm 1.95 kg
19 22311 22311 EK+H 2311 H 2311 280 KN 120 mm 43 mm 2.85 kg
20 22212 22212 EK+H 312 H 312 159 KN 110 mm 28 mm 1.45 kg
21 BS2-2212-2RSK/VT143+H BS2-2212-2RSK/VT143+H 312 E H 312 E 159 KN 110 mm 34 mm 1.7 kg
22 21312 21312 EK+H 312 H 312 217 KN 130 mm 31 mm 2.35 kg
23 22312 22312 EK+H 2312 H 2312 325 KN 130 mm 46 mm 3.5 kg
24 22213 22213 EK+H 313 H 313 198 KN 120 mm 31 mm 1.95 kg
25 BS2-2213-2RSK/VT143+H BS2-2213-2RSK/VT143+H 2313 E H 2313 E 198 KN 120 mm 38 mm 2.1 kg
26 22214 22214 EK+H 314 H 314 213 KN 125 mm 31 mm 2.15 kg
27 BS2-2214-2RSK/VT143+H BS2-2214-2RSK/VT143+H 314 E H 314 E 213 KN 125 mm 38 mm 2.4 kg
28 21313 21313 EK+H 313 H 313 243 KN 140 mm 33 mm 2.9 kg
29 22313 22313 EK+H 2313 H 2313 357 KN 140 mm 48 mm 4.2 kg
30 21314 21314 EK+H 314 H 314 291 KN 150 mm 35 mm 3.7 kg
31 22314 22314 EK+H 2314 H 2314 413 KN 150 mm 51 mm 5.35 kg
32 22215 22215 EK+H 315 H 315 217 KN 130 mm 31 mm 2.45 kg
33 BS2-2215-2RSK/VT143+H BS2-2215-2RSK/VT143+H 315 E H 315 E 217 KN 130 mm 38 mm 2.8 kg
34 21315 21315 EK+H 315 H 315 291 KN 160 mm 37 mm 4.5 kg
35 22315 22315 EK+H 2315 H 2315 462 KN 160 mm 55 mm 6.5 kg
36 22216 22216 EK+H 316 H 316 243 KN 140 mm 33 mm 3 kg
37 BS2-2216-2RSK/VT143+H BS2-2216-2RSK/VT143+H 316 E H 316 E 243 KN 140 mm 40 mm 3.3 kg
38 21316 21316 EK+H 316 H 316 331 KN 170 mm 39 mm 5.3 kg
39 22316 22316 EK+H 2316 H 2316 516 KN 170 mm 58 mm 7.65 kg
40 22217 22217 EK+H 317 H 317 291 KN 150 mm 36 mm 3.7 kg
41 BS2-2217-2RSK/VT143+H BS2-2217-2RSK/VT143+H 317 E H 317 E 291 KN 150 mm 44 mm 4.1 kg
42 21317 21317 EK+H 317 H 317 331 KN 180 mm 41 mm 6.2 kg
43 22317 22317 EK+H 2317 H 2317 577 KN 180 mm 60 mm 8.85 kg
44 22218 22218 EK+H 318 H 318 331 KN 160 mm 40 mm 4.55 kg
45 BS2-2218-2RSK/VT143+H BS2-2218-2RSK/VT143+H 2318 E/L73 H 2318 E/L73 331 KN 160 mm 48 mm 5.1 kg
46 23218 23218 CCK/W33+H 2318 H 2318 372 KN 160 mm 52.4 mm 6 kg
47 21318 21318 EK+H 318 H 318 393 KN 190 mm 43 mm 7.25 kg
48 22318 22318 EK+H 2318 H 2318 637 KN 190 mm 64 mm 10.5 kg
49 22219 22219 EK+H 319 H 319 393 KN 170 mm 43 mm 5.45 kg
50 21319 21319 EK+H 319 H 319 433 KN 200 mm 45 mm 8.25 kg
51 22319 22319 EK+H 2319 H 2319 699 KN 200 mm 67 mm 12 kg
52 23120 23120 CCK/W33+H 3120 H 3120 385 KN 165 mm 52 mm 6.15 kg
53 22220 22220 EK+H 320 H 320 433 KN 180 mm 46 mm 6.4 kg
54 BS2-2220-2RS5K/VT143+H BS2-2220-2RS5K/VT143+H 2320 E H 2320 E 433 KN 180 mm 55 mm 7.4 kg
55 23220 23220 CCK/W33+H 2320 H 2320 498 KN 180 mm 60.3 mm 8.75 kg
56 21320 21320 EK+H 320 H 320 433 KN 215 mm 47 mm 10.5 kg
57 22320 22320 EK+H 2320 H 2320 847 KN 215 mm 73 mm 15 kg
58 23022 23022 CCK/W33+H 322 H 322 326 KN 170 mm 45 mm 5.75 kg
59 23122-2CS5K/VT143+H 23122-2CS5K/VT143+H 3122 E H 3122 E 451 KN 180 mm 56 mm 7.7 kg
60 23122 23122 CCK/W33+H 3122 H 3122 450 KN 180 mm 56 mm 7.7 kg
61 22222 22222 EK+H 322 H 322 572 KN 200 mm 53 mm 8.9 kg
62 BS2-2222-2RS5K/VT143+H BS2-2222-2RS5K/VT143+H 2322 E H 2322 E 572 KN 200 mm 63 mm 10 kg
63 23222-2CS5K/VT143/ 23222-2CS5K/VT143 H 2322 E 627 KN 200 mm 69.8 mm 12.5 kg
64 23222 23222 CCK/W33+H 2322 E H 2322 626 KN 200 mm 69.8 mm 12.5 kg
65 22322 22322 EK+H 2322 H 2322 989 KN 240 mm 80 mm 21 kg
66 23024 23024 CCK/W33+H 3024 H 3024 366 KN 180 mm 46 mm 5.95 kg
67 23124 23124 CCK/W33+H 3124 H 3124 534 KN 200 mm 62 mm 10 kg
68 22224 22224 EK+H 3124 H 3124 652 KN 215 mm 58 mm 11 kg
69 BS2-2224-2RS5K/VT143+H BS2-2224-2RS5K/VT143+H 2324 EH H 2324 EH 652 KN 215 mm 69 mm 12.5 kg
70 23224-2CS5K/VT143+H 23224-2CS5K/VT143+H 2324 L H 2324 L 734 KN 215 mm 76 mm 14.5 kg
71 23224 23224 CCK/W33+H 2324 H 2324 732 KN 215 mm 76 mm 14.5 kg
72 22324-2CS5K/VT143+H 22324-2CS5K/VT143+H 2324 H 2324 1022 KN 260 mm 86 mm 25.5 kg
73 22324 22324 CCK/W33+H 2324 H 2324 1019 KN 260 mm 86 mm 25.5 kg
74 23026-2CS5K/VT143+H 23026-2CS5K/VT143+H 3026 E H 3026 E 452 KN 200 mm 52 mm 8.7 kg
75 23026 23026 CCK/W33+H 3026 H 3026 452 KN 200 mm 52 mm 8.6 kg
76 23126 23126 CCK/W33+H 3126 H 3126 586 KN 210 mm 64 mm 12 kg
77 22226 22226 EK+H 3126 H 3126 758 KN 230 mm 64 mm 14 kg
78 BS2-2226-2CS5K/VT143+H BS2-2226-2CS5K/VT143+H 2326 L H 2326 L 758 KN 230 mm 75 mm 14.5 kg
79 23226-2CS5K/VT143+H 23226-2CS5K/VT143+H 2326 L H 2326 L 828 KN 230 mm 80 mm 18 kg
80 23226 23226 CCK/W33+H 2326 H 2326 826 KN 230 mm 80 mm 18.5 kg
81 23028-2CS5K/VT143+H 23028-2CS5K/VT143+H 3028 E H 3028 E 485 KN 210 mm 53 mm 9.4 kg
82 23028 23028 CCK/W33+H 3028 H 3028 485 KN 210 mm 53 mm 9.4 kg
83 23128 23128 CCK/W33+H 3128 H 3128 659 KN 225 mm 68 mm 14.5 kg
84 22228-2CS5K/VT143+H 22228-2CS5K/VT143+H 3128 L H 3128 L 744 KN 250 mm 68 mm 17.5 kg
85 22228 22228 CCK/W33 H 3128 743 KN 250 mm 68 mm 18 kg
86 23228-2CS5K/VT143+H 23228-2CS5K/VT143+H 2328 H 2328 963 KN 250 mm 88 mm 24 kg
87 23228 23228 CCK/W33+H 2328 H 2328 962 KN 250 mm 88 mm 24 kg
88 22328-2CS5K/VT143+H 22328-2CS5K/VT143+H 2328 H 2328 1359 KN 300 mm 102 mm 41 kg
89 22328 22328 CCK/W33+H 2328 H 2328 1357 KN 300 mm 102 mm 41 kg
90 23030-2CS5K/VT143+H 23030-2CS5K/VT143+H 3030 E H 3030 E 532 KN 225 mm 56 mm 11.5 kg
91 23030 23030 CCK/W33+H 3030 H 3030 531 KN 225 mm 56 mm 11 kg
92 22326-2CS5K/VT143+H 22326-2CS5K/VT143+H 2326 H 2326 1178 KN 280 mm 93 mm 33 kg
93 22326 22326 CCK/W33+H 2326 H 2326 1176 KN 280 mm 93 mm 33 kg
94 23130-2CS5K/VT143+H 23130-2CS5K/VT143+H 3130 E H 3130 E 884 KN 250 mm 80 mm 20 kg
95 23130 23130 CCK/W33+H 3130 H 3130 883 KN 250 mm 80 mm 21 kg
96 22230-2CS5K/VT143+H 22230-2CS5K/VT143+H 3130 H 3130 899 KN 270 mm 73 mm 23 kg
97 22230 22230 CCK/W33 +H 3130 H 3130 898 KN 270 mm 73 mm 23 kg
98 23230-2CS5K/VT143+H 23230-2CS5K/VT143+H 2330 L H 2330 L 1132 KN 270 mm 96 mm 30 kg
99 23230 23230 CCK/W33+ H 2330 H 2330 1129 KN 270 mm 96 mm 30 kg
100 22330-2CS5K/VT143+ 22330-2CS5K/VT143+ H 2330 H 2330 1541 KN 320 mm 108 mm 49 kg

Features and advantages of QIBR double-row spherical roller bearings with adapter sleeves

QIBR double-row spherical roller bearings with adapter sleeves have solved many key problems in various fields, which are mainly reflected in the following aspects:

1. Self-aligning ability

The raceways of the inner and outer rings of double-row spherical roller bearings with adapter sleeves are curved, and the bearings have the function of self-aligning, that is, they can automatically compensate for the angular deviation caused by the bending of the shaft or the installation error. Therefore, it can withstand a certain axial load while bearing radial loads, and is particularly suitable for applications with low requirements for installation accuracy.

2. Strong load-bearing capacity

The rollers of double-row spherical roller bearings with adapter sleeves are cylindrical or slightly inclined, with a large contact surface, and can withstand large radial loads and bidirectional axial loads. Due to the large number of rollers, it has a higher load-bearing capacity, especially in high-load and high-impact application scenarios, and performs outstandingly.

3. Suitable for harsh working conditions

This type of bearing is often used in harsh environments such as high temperature, high speed, and heavy load, and can operate reliably under relatively harsh working conditions. Double-row spherical roller bearings with adapter sleeves have strong adaptability and can adapt to large axial offsets and radial load changes.

4. Easy to install

Compared with other types of roller bearings, double-row spherical roller bearings with adapter sleeves use adapter sleeves to prevent the bearings from loosening or slipping during operation. The adapter sleeve fixes the bearing to the shaft with bolts, usually with an internal hexagon or external hexagon design, which is easy to disassemble and install.


The performance improvement and solution of QIBR double-row spherical roller bearing with adapter sleeve

1. Lubricant optimization

Select appropriate lubricating oil or grease, and make appropriate additions and blends to reduce friction and improve wear resistance. The use of synthetic lubricants or nano-lubricants can significantly improve the efficiency and life of bearings.

2. Heat treatment process

Optimize the heat treatment process to ensure that the hardness and toughness of the bearing material are in the best state, and enhance its fatigue resistance and wear resistance.

3. Improve the quality of rolling elements

 Reduce friction and wear by improving the surface finish and hardness of the rolling elements. The use of high-precision rolling elements (such as ceramics) can significantly improve the operating performance of the bearing.

4. Cage design optimization

 Use a more optimized cage structure, such as using high-temperature and corrosion-resistant materials and designs to improve the durability of the cage and the stability of the bearing.


Main application areas of QIBR double-row spherical roller bearings with adapter sleeves

1.Mining machinery

Such as crushers, conveyors, ball mills and other equipment, due to their harsh working environment and heavy loads, spherical roller bearings can provide high load-bearing capacity and avoid failures caused by installation errors.

2.Metallurgical equipment

Such as rolling mill equipment and roller tables in steel plants, spherical roller bearings can effectively withstand heavy loads and impacts generated in metallurgical production.

3. Hydropower generator sets

Bearings of large power equipment such as turbines and generators. Since power equipment needs to withstand a large amount of load and long-term operation, spherical roller bearings have good self-alignment and are suitable for this type of equipment.

4. Agricultural machinery

Key components of agricultural machinery such as tractors and combine harvesters, especially those operating in rough environments. Due to the uneven ground or large vibrations in the working environment of agricultural machinery, spherical roller bearings can effectively reduce the loss caused by inaccurate equipment alignment.
