A Guide to 6000 Series Bearings: Open, Sealed & Stainless Steel Types

A Comparative Analysis of the 6000, 6000-2RS Deep Groove Ball Bearings and Their Stainless Steel counterparts

In the realm of mechanical design, selecting the optimal bearing is a critical decision that dictates the performance, durability, and reliability of an application. QIBR, a forefront innovator in bearing technology, today releases a detailed technical analysis of four essential components: the open 6000, the shielded 6000-2RS, and their specialized stainless-steel equivalents. Understanding the nuanced differences between these models is crucial for engineers designing for diverse operational environments.

The Foundation: Open 6000 vs. Sealed 6000-2RS Deep Groove Ball Bearings

The 6000 series, with its standard 10mm bore, is a cornerstone of modern machinery. The primary distinction within this series often lies in the presence or absence of protective sealing.

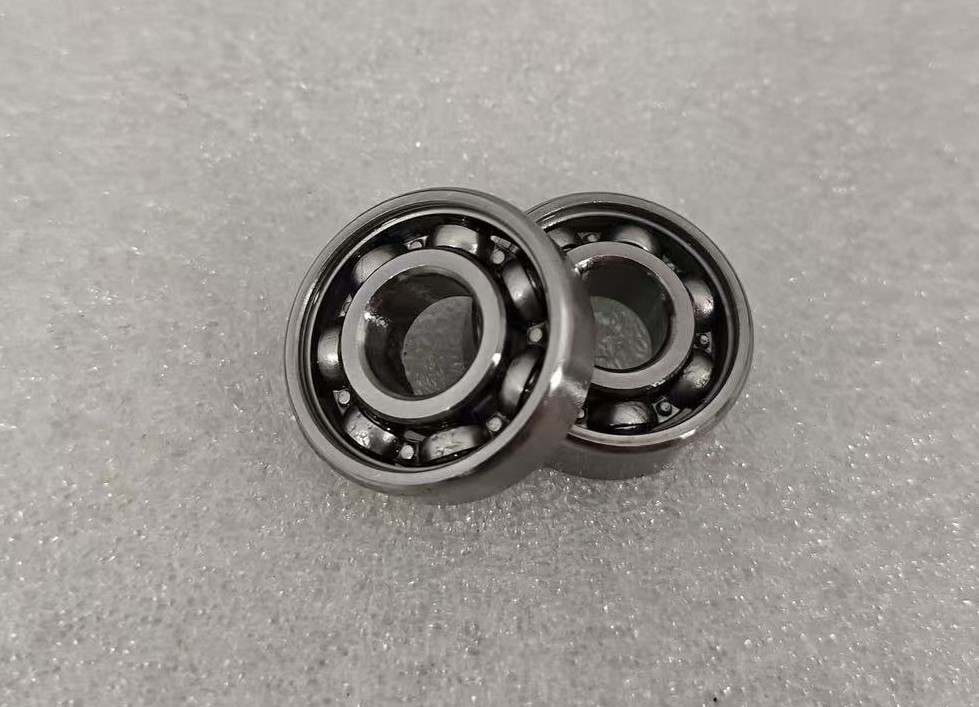

• Open 6000 Bearing: This is the fundamental, unsealed version. It offers the highest possible speed capability and is designed for applications where the operating environment is clean and the lubrication system is external and well-controlled. It requires regular maintenance to ensure lubricant integrity and prevent contamination.

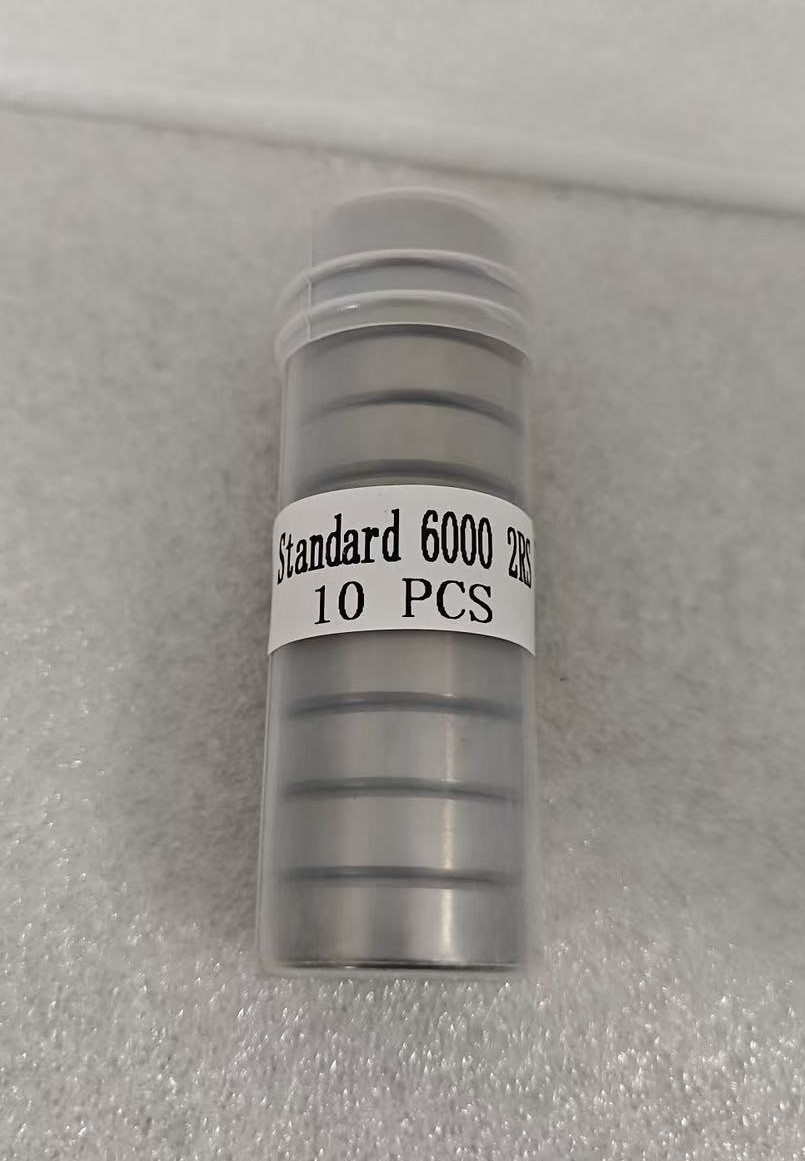

• 6000-2RS Bearing: The "2RS" designation indicates that the bearing is fitted with rubber seals (RS) on both sides. These contact seals effectively protect the bearing's internals from contaminants like dust and moisture and retain the lubricant within the bearing. This makes it a "maintenance-free" solution for most of its service life, albeit with a marginally lower maximum speed rating due to seal friction. It is the go-to choice for electric motors, appliances, and general industrial applications where reliability and minimal upkeep are priorities.

Both standard versions are predominantly manufactured from chrome steel (SAE 52100), providing an excellent balance of hardness, wear resistance, and load capacity for their size.

The Corrosion-Resistant Specialists: Stainless Steel Equivalents

For environments where moisture, chemicals, or corrosion are concerns, stainless steel versions of these bearings are available, maintaining the same 6000 and 6000-2RS dimensions.

• Stainless Steel Open 6000: Made typically from AISI 440C, this bearing retains the high-speed advantage of the open design while providing significantly improved resistance to rust and corrosion compared to chrome steel. It is suited for applications in mild corrosive environments where external lubrication is still feasible.

• Stainless Steel 6000-2RS: This variant combines the best of both worlds: the full protection of bilateral rubber seals and the superior corrosion resistance of stainless steel (often AISI 304 or 440C). It is the ultimate solution for harsh conditions, such as food and beverage processing (withstanding frequent wash-downs), medical equipment, marine applications, and chemical handling. It is important to note that stainless steel bearings have a lower load capacity than their chrome steel equivalents.

The QIBR Advantage: Engineering Support for Informed Selection

Choosing between an open, sealed, chrome steel, or stainless-steel model is a nuanced decision that impacts the entire system. "The choice between a standard 6000 and a 6000-2RS is a question of environment and maintenance," noted Engineer Zheng of QIBR. "Upgrading to a stainless steel variant then addresses the material compatibility. However, engineers must factor in the trade-offs, including reduced speed limits for sealed types and lower load capacity for stainless steel. There is no one-size-fits-all answer."

QIBR provides more than just components; we offer a comprehensive engineering partnership. Our technical team works closely with clients to analyze their specific application requirements—load, speed, environmental exposure, and maintenance schedules—to recommend the perfect bearing solution, whether it's the versatile open 6000, the protected 6000-2RS, or their stainless-steel counterparts.

Conclusion

From the high-speed simplicity of the open 6000 to the sealed protection of the 6000-2RS, and further to their corrosion-resistant stainless-steel versions, this product family offers a solution for nearly every challenge. By carefully considering the operational environment and performance needs, engineers can leverage these differences to build more reliable, efficient, and longer-lasting machinery.

For further technical data, application support, or to discuss your specific bearing requirements, please contact the QIBR engineering team.
