Needle Roller Bearing HK 1612: A Compact Powerhouse for Industrial Applications

Needle roller bearings are indispensable components in modern machinery, offering high load-carrying capacity in a compact design. Among these, the HK 1612 model stands out as a particularly versatile and widely used representative. This article delves into the technical specifications, design features, applications, and selection considerations for the HK 1612 needle roller bearing.

Technical Specifications and Design Features

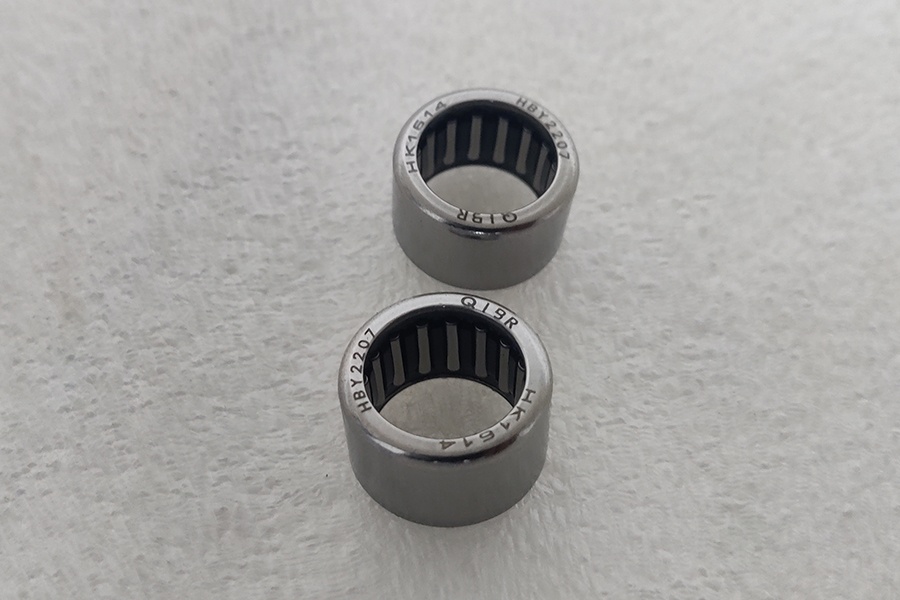

The HK 1612 is a standardized metric needle roller bearing with a drawn cup design. Its dimensions are a key identifier: it features a 16 mm inner diameter (Fw), an outer diameter (D) of 22 mm, and a width (C) of 12 mm. This slim cross-section makes it ideal for applications where radial space is severely limited.

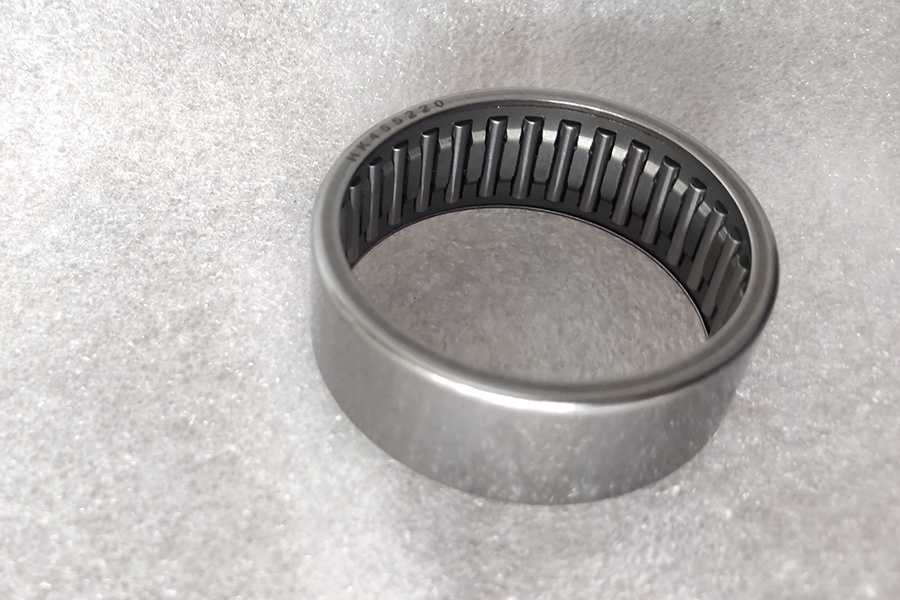

The bearing typically consists of a thin, precision-drawn outer ring (the cup) made from hardened steel strip. This outer ring acts as the raceway for the needle rollers. Inside, a set of fine-finish needle rollers, guided by a steel plate cage, ensures smooth operation and even load distribution. The open-ended design allows for easy installation and accommodates shaft variations.

 Despite its small size, the HK 1612 is engineered for performance. Its basic dynamic load rating (Cr) is typically between 7.1 kN and 7.6 kN, while its basic static load rating (C0r) ranges from 9.2 kN to 9.8 kN. This means it can handle significant radial loads for its size, both in continuous operation and when stationary. The fatigue limit load (Pu) is around 1.16 kN, indicating its ability to endure load cycles under certain conditions.

 Speed capability is another advantage. With limiting speeds of up to 14,000 rpm for oil lubrication and 9,300 rpm for grease lubrication, it is suitable for various high-speed applications. The bearing's weight is approximately 11 to 12 grams, contributing to lightweight design goals.

Key Technical Data of HK 1612 Needle Roller Bearing

Inner Diameter (Fw)  16  mm

 Outer Diameter (D)  22  mm

 Width (C)  12  mm

 Dynamic Load Rating (Cr)  7.1 - 7.6  kN

 Static Load Rating (C0r)  9.2 - 9.8  kN

 Fatigue Limit Load (Pu)  ~1.16  kN

 Limiting Speed (Oil)  Up to 14,000  rpm

 Limiting Speed (Grease)  Up to 9,300  rpm

 Weight  ~0.012  kg

Applications and Common Uses

The HK 1612's combination of small size and high load capacity makes it a preferred choice across numerous industries.

Automotive Systems: It is commonly found in transmissions, gearboxes, rocker arm pivots, and other assemblies within vehicles where space is constrained but reliable rotation is critical.

Industrial Machinery: This bearing is extensively used in packaging equipment, printing presses, industrial drives, pumps, and compressors. Its low sectional height allows for more compact machine designs.

Agricultural Equipment: Machinery like harvesters often utilizes these bearings in various linkages and rotational joints.

Two- and Three-Wheeled Vehicles: The compact size and performance are beneficial in motorcycle and scooter components.

Household Appliances: Durable and reliable bearings like the HK 1612 can be part of mechanisms in larger appliances.

Selection, Installation, and Maintenance Notes

Choosing and correctly handling the HK 1612 is crucial for optimal performance and longevity.

1.  Shaft Requirements: A fundamental characteristic of drawn cup needle roller bearings like the HK 1612 is that they require a hardened and ground shaft. The inner raceway is formed directly on the surface of the shaft itself. If the host shaft is not hardened, a separate inner ring (IR), such as an IR12x16x13, must be used to provide a suitable hardened raceway.

2.  Housing Fit: The outer ring is designed for a tight interference fit (press fit) into the housing bore. This secures the bearing axially without the need for additional retaining elements, simplifying housing design.

3.  Lubrication: Proper lubrication is vital. Grease lubrication is common for its simplicity, but oil lubrication allows for higher operational speeds. Manufacturers' recommendations for lubrication type, quantity, and relubrication intervals should be followed. Applying lubricant to the bearing and shaft before installation is essential.

4.  Installation: Care must be taken during installation. The outer ring, being thin-walled, can be easily damaged if pressed in unevenly. Using proper mandrels or tools is advised to avoid distorting the bearing.

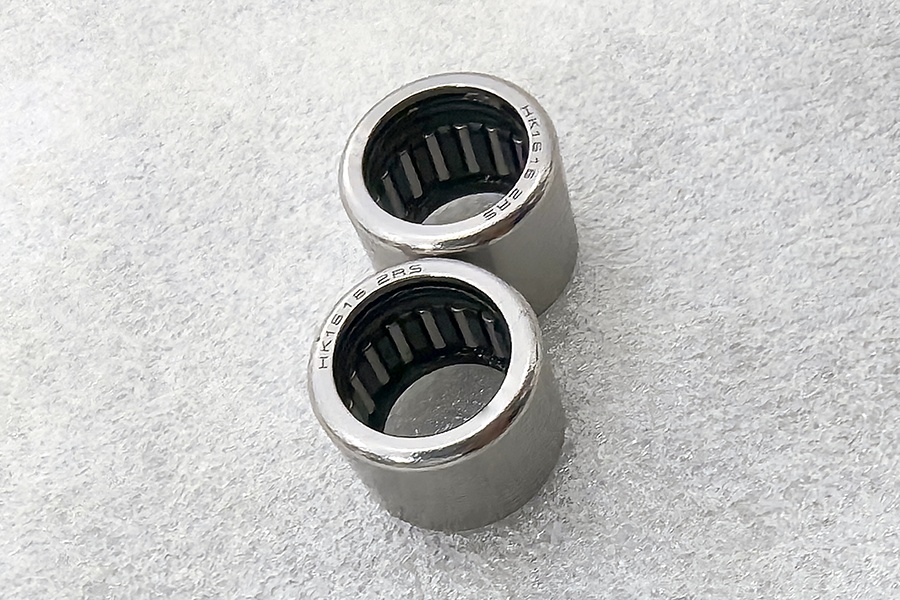

5.  Environmental Considerations: For operation in contaminated environments, complementary seals (e.g., designated with suffixes like `-2RS` or `-ZZ`) might be necessary, though standard HK 1612 is often open. Its operating temperature range is typically between -30°C and 140°C.

Advantages and Considerations

Advantages:

Extremely High Radial Load Capacity for its size.

Compact Design with a very low cross-section, saving space and weight.

Cost-Effective manufacturing due to the drawn cup construction.

High-Speed Capability with appropriate lubrication.

Considerations:

Requires a hardened and ground shaft or a separate inner ring.

The thin outer ring is less suitable for shock loads compared to heavier bearings.

Generally not designed to carry significant axial loads.

Conclusion

The HK 1612 needle roller bearing is a remarkable example of engineering efficiency, offering an outstanding strength-to-size ratio. Its standardized dimensions and reliable performance from manufacturers like SKF, INA, and others have made it a fundamental component in countless automotive, industrial, and consumer applications. By understanding its specifications, ensuring proper installation on a suitable shaft, and providing adequate lubrication, designers and maintenance engineers can fully leverage the capabilities of this compact powerhouse to build robust and efficient machinery.
