QIBR Joint Bearings: Precision, Flexibility, and Strength in Motion

In modern mechanical systems, joint bearings—also known as spherical plain bearings or rod end bearings—play a vital role in connecting components that must move smoothly while withstanding heavy loads and misalignment. From hydraulic cylinders and construction equipment to automation systems and agricultural machinery, joint bearings ensure flexibility, reliability, and durability where dynamic motion meets demanding conditions.

As a global bearing manufacturer, QIBR has developed a full range of joint bearings that combine advanced materials, precision manufacturing, and surface treatment technologies. Among them, models such as GE20ES and GE20FW represent two high-performance solutions tailored for different operating environments.

What are Joint Bearings?

Joint bearings are designed to accommodate oscillating motion, tilting, and rotational alignment between two connected parts. Structurally, they consist of an inner ring with a spherical outer surface and an outer ring with a corresponding spherical inner surface. This geometry enables the bearing to absorb misalignment and transmit forces efficiently.

Unlike standard rolling bearings, joint bearings operate with sliding contact surfaces rather than rolling elements, which makes them ideal for applications involving low-speed, high-load oscillating movements—such as those in hydraulic actuators, steering systems, and mechanical linkages.

Key Advantages of QIBR Joint Bearings

1. Self-Alignment Capability

The spherical contact design allows automatic adjustment of the angle between the shaft and housing, reducing stress and extending service life.

2. High Load Capacity

Designed to handle heavy radial and axial loads simultaneously, even under vibration and impact conditions.

3. Wear and Corrosion Resistance

QIBR applies special surface treatments and uses premium bearing steel or stainless steel, ensuring excellent resistance to wear and rust.

4. Maintenance-Free Options

Some QIBR joint bearings feature self-lubricating liners such as PTFE, allowing long-term operation without additional lubrication.

Highlighted Models: GE20ES and GE20FW

1. GE20ES – The Classic Steel-on-Steel Bearing

The GE20ES is one of QIBR’s most widely used spherical plain bearings.

• Design: Steel-on-steel contact type with hard chromium plating on the inner ring and phosphate-treated outer ring.
• Features: Exceptional load capacity, precise alignment, and shock resistance.
• Applications: Commonly found in hydraulic cylinders, construction machines, and heavy-duty linkages.

Thanks to its robustness and cost efficiency, the GE20ES has become a benchmark product for standard industrial machinery requiring dependable joint connections.

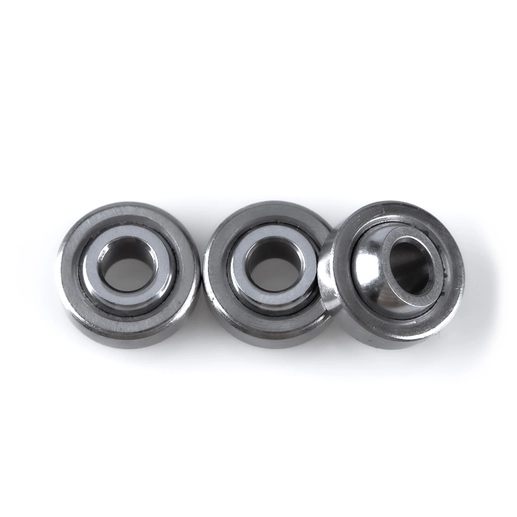

2. GE0FW – The Advanced Maintenance-Free Bearing

The GE20FW model represents the next evolution in joint bearing technology.

• Design: Maintenance-free type with PTFE composite liner between the inner and outer rings.
• Features: Self-lubricating, corrosion-resistant, and capable of silent operation in oscillating motion.
• Applications: Ideal for automation systems, agricultural equipment, and environments where frequent maintenance is difficult.

The GE20FW delivers consistent performance even without relubrication, making it suitable for industries that demand both efficiency and longevity.

Engineering Excellence and Quality Control

Every QIBR joint bearing undergoes precision grinding, heat treatment, and strict dimensional inspection. The company’s advanced production facilities ensure tight tolerances and uniform surface quality, minimizing friction and wear during operation.

QIBR also follows global bearing standards, ensuring interchangeability with international brands while maintaining competitive pricing and superior after-sales support.

Applications Across Industries

• Construction Equipment: Hydraulic joints, excavator arms, and suspension linkages.
• Agricultural Machinery: Steering and control linkages in tractors and harvesters.
• Automotive Systems: Shock absorbers, chassis linkages, and steering rods.
• Industrial Automation: Robotic arms, pneumatic actuators, and motion control systems.
• Marine and Energy Sectors: Equipment requiring oscillating motion under corrosive or high-load conditions.

Future Outlook

As industries advance toward automation and lightweight design, joint bearings will continue to evolve. QIBR is developing next-generation products featuring composite materials, sensor integration, and environmentally friendly lubricants to meet the growing demand for smart and sustainable solutions.

With its rich experience, technical expertise, and customer-focused innovation, QIBR is positioned to remain a trusted global partner for joint bearing solutions—offering products that perform with precision, flexibility, and strength.

Conclusion

From traditional models like GE20ES to modern maintenance-free versions such as GE20FW, QIBR’s joint bearings embody the company’s philosophy of durability, innovation, and reliability.

Whether used in heavy machinery or advanced automation systems, QIBR joint bearings ensure motion with confidence—supporting the world’s industries where movement and stability must coexist in perfect balance.
