QIBR Studded Guide Wheels: Reliable Grip for Precision and Heavy-Duty Motion

As automation and precision machinery continue to evolve, motion components must deliver not only smooth movement but also dependable traction and durability. To meet these growing demands, QIBR introduces its comprehensive line of studded guide wheels, engineered to combine precision, grip, and endurance across a wide range of industrial applications.

Enhanced Traction and Stability

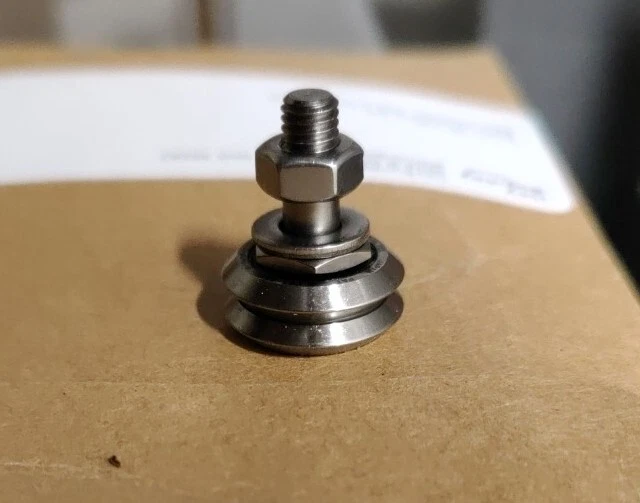

QIBR studded wheels, also known as track rollers with studded outer surfaces, are designed to provide superior friction and control on rails or guide tracks. The unique studded profile increases contact stability, reducing the risk of slippage under high-speed or high-load conditions.

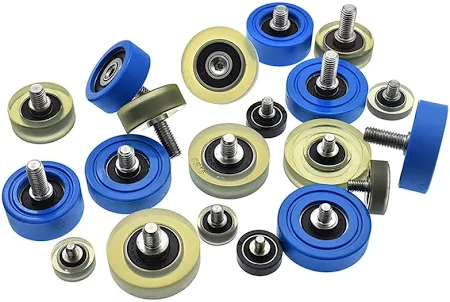

The lineup includes a wide range of sizes, such as:

• SWIC0P — Compact and lightweight (outer diameter 14.83 mm, weight 6 g), ideal for miniature guiding systems.
• SWSC1A — Medium-size model (outer diameter 19.58 mm), offering a balance of strength and precision for moderate loads.
• SWSC3XA — Large version (outer diameter 45.8 mm), suitable for industrial conveyors and automated transport systems.
• SWSC4XA — Heavy-duty model (outer diameter 59.94 mm, weight 338 g), designed for high-load and harsh-environment applications.

Each QIBR studded wheel integrates a precision bearing core, ensuring stable rotation, low friction, and consistent guidance even in challenging conditions.

Precision Design and Versatility

Every studded wheel undergoes strict machining and heat treatment, ensuring a hard, wear-resistant surface while maintaining inner race precision. The integrated structure simplifies assembly and minimizes system complexity, allowing for direct mounting in conveyor frames, sliding doors, or automation tracks.

QIBR offers different groove and stud patterns to match diverse requirements — from smooth linear guiding in textile and packaging machines to enhanced grip in vertical lifting or robotic track systems.

Advantages of QIBR Studded Wheels

1. Reliable Grip and Reduced Slippage — The studded design enhances traction on steel or coated rails.
2. High-Strength Construction — Made from high-grade bearing steel, hardened and ground for superior load capacity.
3. Sealed and Maintenance-Free — Equipped with 2RS seals and long-life grease for continuous operation.
4. Broad Application Range — From compact machinery (SWIC0P) to heavy-duty automation systems (SWSC4XA).

These features make QIBR studded wheels suitable for automation lines, conveyors, lifting systems, robotic rails, and industrial doors, where consistent movement and safety are critical.

Innovation and Quality at the Core

QIBR continues to advance in precision bearing and motion technology. Through constant improvement in surface engineering, lubrication systems, and sealing designs, QIBR ensures each studded wheel performs reliably under long-term dynamic stress.

As industries push toward higher efficiency and automation, QIBR’s studded guide wheels represent not just a motion component — but a key enabler of smooth, stable, and reliable performance in every movement system.
