Spherical Roller Bearings: The Backbone of Heavy-Duty Applications

In the world of industrial machinery and automotive engineering, bearings play an indispensable role in ensuring smooth, efficient, and reliable operation. Among the many types of bearings available, spherical roller bearings stand out for their ability to handle extremely high loads, compensate for misalignment, and perform reliably under challenging conditions. These bearings have become the backbone of heavy-duty applications, including mining, steel mills, construction equipment, paper production, and power generation.

What Are Spherical Roller Bearings?

Spherical roller bearings are self-aligning bearings that incorporate two rows of barrel-shaped rollers. Unlike ball bearings, which use spherical balls as rolling elements, these bearings use cylindrical-shaped rollers with slightly convex surfaces. This unique design allows them to carry both radial loads and axial loads in both directions, making them highly versatile.

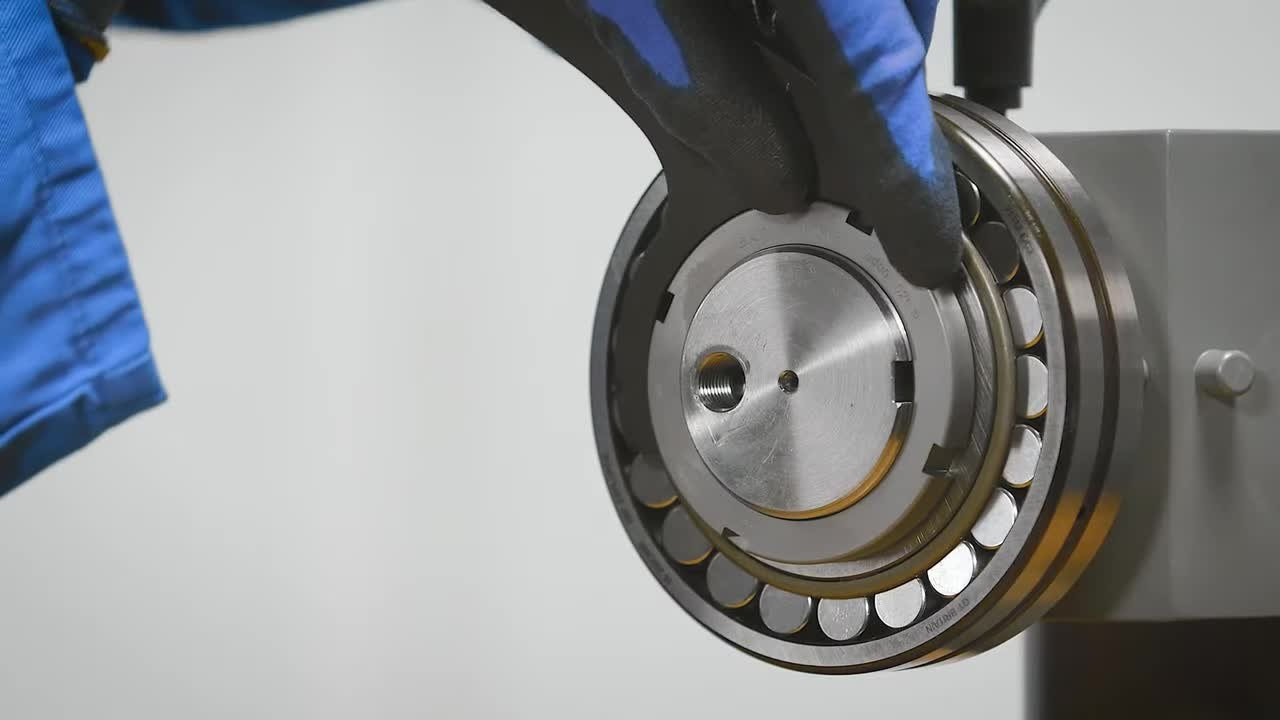

One of their defining features is self-alignment. Thanks to their spherical raceway in the outer ring, spherical roller bearings can compensate for shaft misalignments caused by installation errors, shaft deflections, or operating conditions. This property is particularly valuable in heavy-duty environments where maintaining perfect alignment is challenging.

Key Features and Advantages

1. High Load-Carrying Capacity

Spherical roller bearings can withstand both heavy radial and axial loads simultaneously, making them ideal for applications with extreme working conditions.

2. Self-Aligning Ability

Their design compensates for angular misalignment of up to several degrees, reducing stress and preventing premature failure.

3. Durability in Harsh Conditions

Whether in dusty environments like mining, corrosive conditions in marine engineering, or high-temperature operations in steel mills,spherical roller bearings offer long service life and reliable performance.

4. Versatility in Applications

They are widely used in gearboxes, conveyors, rolling mills, crushers, fans, and pumps, supporting industries where downtime is costly.

Design Variants

Spherical roller bearings come in multiple designs to suit different applications:

• Cylindrical Bore vs. Tapered Bore

Available in both straight and tapered inner ring designs, with tapered versions often used for applications requiring easy mounting and dismounting.

• Sealed and Open Types

Sealed spherical roller bearings are pre-lubricated, offering protection against contamination and reducing maintenance requirements.

• Different Internal Clearances

Designed with specific clearances (C2, C3, C4, etc.) to accommodate operating temperatures and load conditions.

Featured Models: 22215E and 22226CC/W33

To illustrate the versatility of spherical roller bearings, let us consider two widely used models:

• 22215E

The 22215E spherical roller bearing is a compact yet powerful option suitable for general industrial machinery. It provides excellent load-carrying capacity while maintaining smooth operation. With its optimized internal geometry, the 22215E is often used in gearboxes, conveyors, and pumps, where both performance and durability are essential.

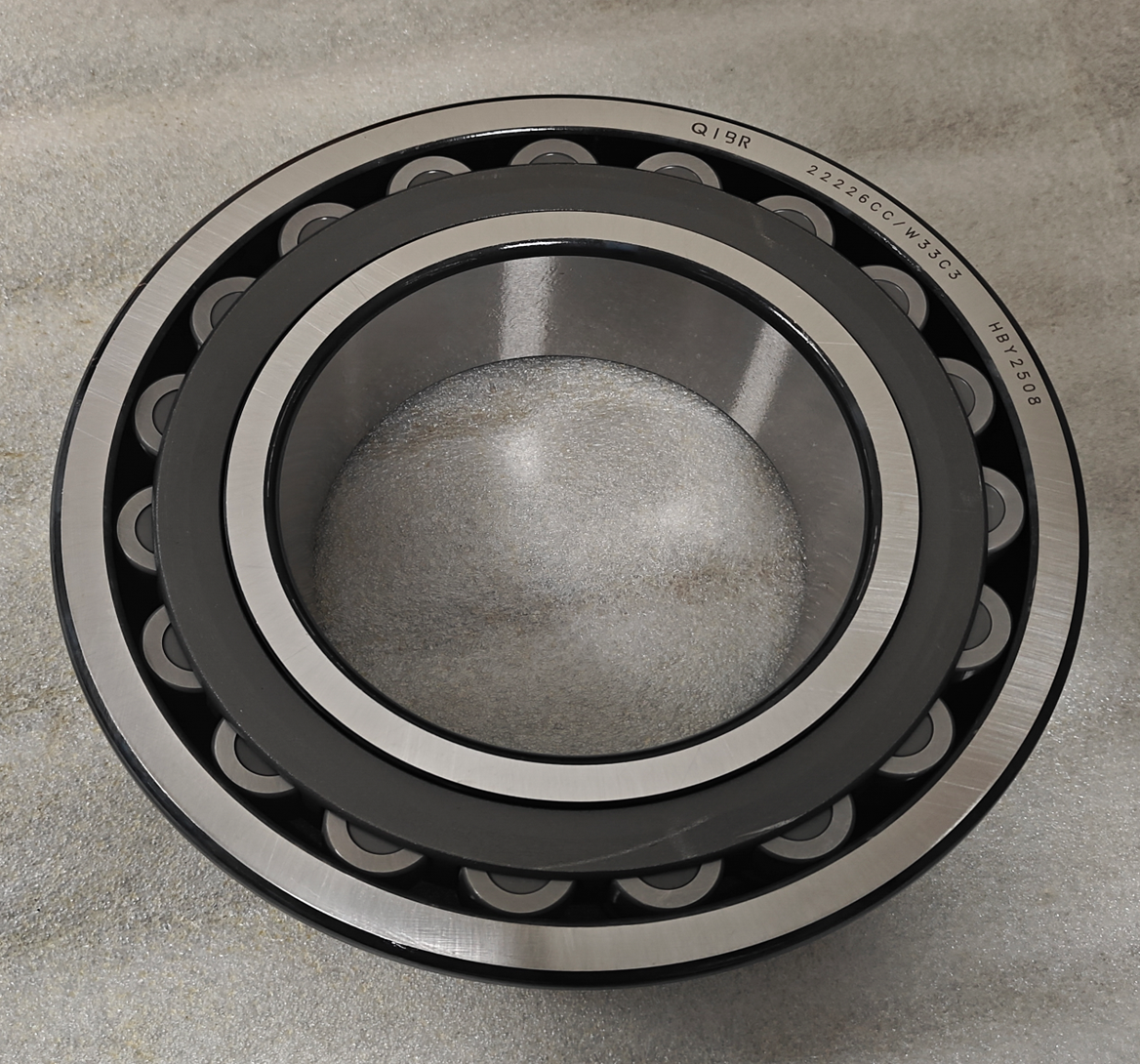

• 22226CC/W33 C3

The 22226CC/W33 C3 is a larger and more heavy-duty design, equipped with a lubrication groove and three lubrication holes (W33 designation). This feature ensures efficient lubrication during continuous operation, making it ideal for mining equipment, crushers, and steel mill applications. With its ability to handle high radial and axial loads, the 22226CC/W33 C3 is a perfect choice for industries where extreme reliability is mandatory.

Materials and Heat Treatment

Modern spherical roller bearings are manufactured from high-quality bearing steel with optimized heat treatment to resist wear, fatigue, and thermal stress. Some versions may also feature special coatings to provide additional resistance against corrosion or electrical erosion.

Applications Across Industries

1. Mining and Quarrying

Bearings in crushers, vibrating screens, and conveyors must withstand shock loads and heavy contamination. Spherical roller bearingsexcel in this environment.

2. Steel and Metal Processing

High-temperature conditions in rolling mills require bearings that can maintain precision and durability.

3. Paper and Pulp Industry

High-speed paper machines rely on spherical roller bearings for smooth and continuous operation.

4. Wind Energy

Wind turbines use spherical roller bearings in gearboxes and main shafts, where misalignment and heavy loads are constant challenges.

5. Marine and Offshore

Bearings must endure corrosive saltwater conditions and dynamic loads from waves, making spherical roller bearings the preferred choice.

QIBR Spherical Roller Bearings

QIBR, as a leading bearing manufacturer, offers a wide range of spherical roller bearings designed for global industries. Their products combine advanced metallurgy, precision engineering, and optimized lubrication solutions to maximize performance.

Some popular QIBR spherical roller bearing series include:

22200 Series: Compact, versatile, widely used in general industrial machinery.

22300 Series: Heavy-duty capacity, suitable for mining and crushing equipment.

24000 & 24100 Series: High load capacity, designed for steel mills and heavy machinery.

Future Trends in Spherical Roller Bearings

With the rise of smart factories and predictive maintenance, the future of spherical roller bearings lies in sensor integration and smart lubrication systems. Bearings equipped with condition-monitoring sensors can provide real-time data on temperature, vibration, and lubrication status, helping operators prevent unexpected downtime.

Furthermore, environmentally friendly lubricants and energy-efficient designs are shaping the next generation of spherical roller bearings, reducing carbon footprints while enhancing performance.

Conclusion

Spherical roller bearingsrepresent the perfect balance of strength, adaptability, and reliability. From the mining pits to offshore oil rigs, from wind turbines to rolling mills, these bearings ensure continuous operation under the harshest conditions.

QIBR’s commitment to research, innovation, and quality places its spherical roller bearings—whether in compact models like 22215E or heavy-duty options like 22226CC/W33—at the forefront of global engineering solutions. As industries evolve and demands for efficiency and sustainability grow, spherical roller bearings will continue to play a crucial role in driving progress across the world.
