The 51148X Thrust Ball Bearing: Engineering Excellence for Axial Load Applications

In the realm of mechanical engineering, bearings serve as the unsung heroes that enable smooth, efficient motion while mitigating friction and wear. Among the diverse range of bearing types, thrust ball bearings stand out for their specialized ability to handle axial loads—forces acting parallel to the shaft’s axis—making them indispensable in countless industrial applications. The 51148X, a high-performance member of the 511 series thrust ball bearings, embodies precision engineering and robust design, tailored to meet the demands of heavy-duty operations and high-reliability environments. This article delves into the technical specifications, design innovations, material selection, application scenarios, and performance advantages that define the 51148X bearing.

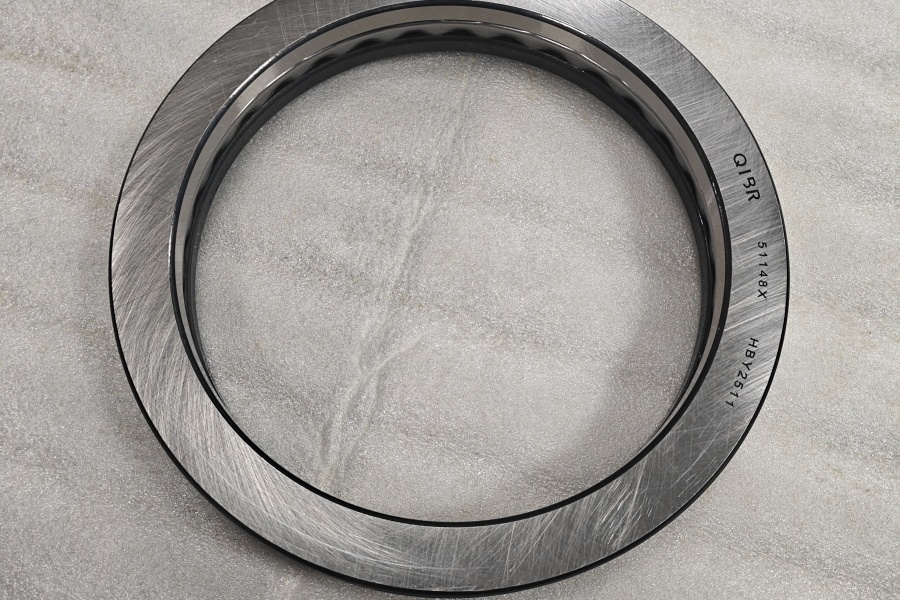

At its core, the 51148X is classified as a single-direction thrust ball bearing, meaning it is engineered to accommodate axial loads in one direction while providing minimal friction during rotational movement. Its naming convention follows industry standards, where the “511” prefix identifies the bearing as part of the light-series thrust ball bearing family—characterized by a compact structure and optimized load-carrying capacity relative to its size. The “48” denotes the bearing’s inner diameter, which adheres to the metric system’s modular design: multiplying the last two digits by 5 yields the inner diameter of 240 millimeters (mm). The “X” suffix signifies a key design optimization, typically related to enhanced structural integrity, improved lubrication retention, or a refined raceway finish, distinguishing it from standard 51148 models. Complementing its inner diameter, the 51148X features an outer diameter of 300 mm and a thickness (or height) of 51 mm, dimensions that strike a balance between compactness and load-bearing capability, making it suitable for installations where space is constrained but performance cannot be compromised.

The technical specifications of the 51148X underscore its reliability and performance. Its dynamic load rating—representing the maximum axial load the bearing can sustain for a rated lifespan of 1 million revolutions—reaches approximately 285 kilonewtons (kN), while the static load rating, which reflects the bearing’s capacity to withstand stationary or slow-moving loads without permanent deformation, exceeds 1120 kN. These impressive load ratings are attributed to the bearing’s optimized contact geometry between the steel balls and the raceways, which distributes stress evenly and minimizes localized wear. The 51148X also boasts a high limit speed, with a maximum rotational velocity of around 1200 revolutions per minute (rpm) under grease lubrication and 1800 rpm with oil lubrication. This versatility in speed performance allows it to adapt to both moderate and high-speed applications, from industrial machinery spindles to heavy-equipment transmissions.

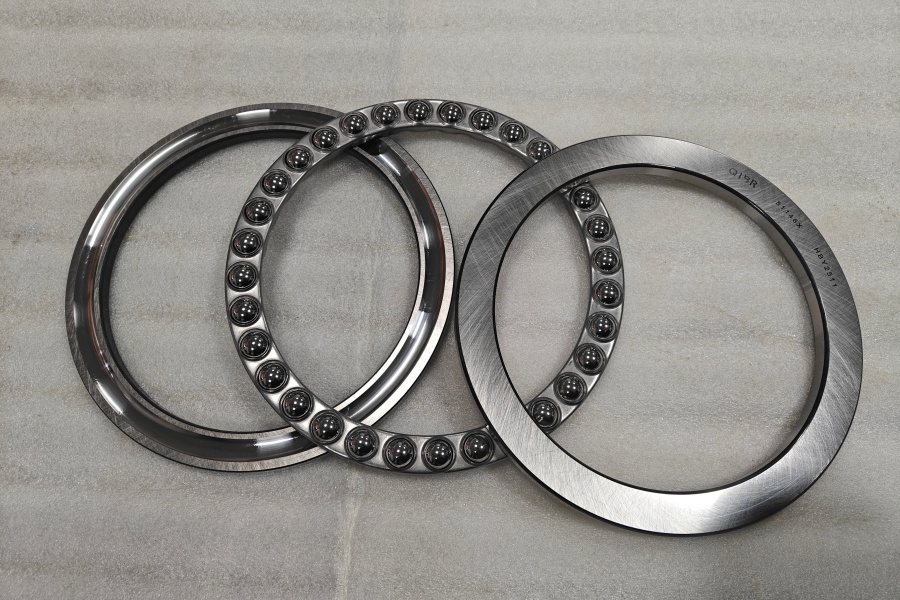

Design-wise, the 51148X incorporates several innovations that enhance its functionality and durability. Like all thrust ball bearings, it consists of three primary components: a stationary washer (housing washer), a rotating washer (shaft washer), and a cage assembly containing precision-ground steel balls. The raceways on both washers are spherically curved to match the radius of the steel balls, ensuring point contact that reduces friction and heat generation during operation. The “X” optimization is particularly evident in the cage design, which is typically fabricated from high-strength steel or brass. Unlike standard cages that may use a single-piece stamping, the 51148X’s cage features a reinforced structure with thicker walls and precision-machined pockets, which securely retain the steel balls even under high loads and centrifugal forces. This design minimizes ball skidding, a common cause of premature wear, and improves the bearing’s stability at extreme speeds. Additionally, the bearing’s washers are heat-treated to achieve a hardness of HRC 60-64, enhancing their resistance to wear, fatigue, and deformation under heavy loads.

Material selection plays a critical role in the 51148X’s performance. The inner and outer washers, as well as the steel balls, are crafted from high-carbon chromium bearing steel (GCr15), a material renowned for its excellent combination of hardness, toughness, and wear resistance. GCr15 undergoes a rigorous heat-treatment process—including quenching and tempering—to refine its microstructure, ensuring uniform hardness and minimizing internal stresses. For applications requiring enhanced corrosion resistance, the 51148X is also available in a stainless steel variant, where the components are manufactured from AISI 440C stainless steel, suitable for use in humid, chemical-exposed, or food-processing environments. The cage material is selected based on application requirements: steel cages offer high strength and temperature resistance (up to 200°C), while brass cages provide superior corrosion resistance and reduced noise levels, making them ideal for precision machinery.

The 51148X’s robust design and versatile performance make it suitable for a wide range of industrial applications. One of its primary use cases is in heavy machinery, such as hydraulic presses, crushers, and extruders, where it withstands the massive axial loads generated during material processing. In machine tools—including lathes, milling machines, and grinders—the bearing’s high precision and low friction contribute to the accuracy of cutting operations, ensuring consistent part quality. It is also commonly employed in electric motors and generators, where it supports the rotor shaft and accommodates axial thrust from the motor’s operation. Automotive applications, such as transmissions and differential systems, benefit from the 51148X’s durability and high-speed capabilities, while renewable energy systems—particularly wind turbines—rely on its ability to handle the axial loads from rotor shafts in harsh outdoor conditions. Additionally, the bearing finds use in marine equipment, such as ship propeller shafts and steering systems, where corrosion resistance (in stainless steel variants) and load-bearing capacity are critical.

Beyond its technical specifications, the 51148X offers several performance advantages that set it apart from standard bearings. Its compact design allows for easy integration into existing machinery, reducing the need for extensive modifications. The optimized cage and raceway design minimize friction, which not only improves energy efficiency but also reduces heat generation, extending the bearing’s service life and reducing maintenance requirements. The high load ratings ensure reliability even under extreme operating conditions, minimizing downtime and replacement costs. Furthermore, the 51148X is compatible with a wide range of lubricants, including mineral oils, synthetic oils, and greases, allowing engineers to tailor the lubrication to specific application needs—whether high temperature, high speed, or heavy load.

Proper installation and maintenance are essential to maximizing the 51148X’s performance and lifespan. During installation, it is critical to ensure accurate alignment of the bearing washers, as misalignment can lead to uneven load distribution and premature failure. The bearing should be mounted with the shaft washer (marked with the bearing number) fitted to the rotating shaft, while the housing washer is secured to the stationary housing. Lubrication should be applied evenly to the raceways and steel balls before operation, with regular re-lubrication scheduled based on operating speed, temperature, and load. Additionally, periodic inspection for signs of wear—such as abnormal noise, vibration, or temperature rise—can help identify potential issues early, preventing costly breakdowns.

In conclusion, the 51148X thrust ball bearing represents a pinnacle of engineering design, combining high load-carrying capacity, precision, durability, and versatility to meet the demands of modern industrial applications. Its technical specifications, innovative design features, and robust material selection make it an ideal choice for applications requiring reliable axial load support, from heavy machinery to precision tools. Whether operating in high-speed, high-load, or corrosive environments, the 51148X delivers consistent performance, minimizing downtime and maximizing operational efficiency. As industries continue to evolve and demand higher performance from mechanical components, the 51148X remains a trusted solution, embodying the principles of engineering excellence and reliability.
