Cross roller bearings, featuring two rows of rollers arranged perpendicularly to achieve high rigidity and precision, play a pivotal role in enhancing the operational efficiency and accuracy of logistics transportation robots. Below are their core applications across key functional systems:

1. AGV Steering and Rotation Systems: Ultra-Precision Navigation

• Narrow-Aisle AGV Turning Joints
  RB-seriescross roller bearings (e.g., RB40) with a vertical cross-roller structure enable AGVs to achieve P2-class positioning accuracy (rotation error <0.05°). In e-commerce warehouses, this allows AGVs to navigate through 1.2-meter-wide aisles while maintaining a turning radius of ≤800 mm, increasing storage space utilization by 30%.
• Omni-Directional Mobile Robots
  CRBH-series cross roller bearings (e.g., CRBH80) with an inner diameter of 80 mm integrate into omnidirectional wheel hubs, supporting radial loads up to 15 tons. Their preloaded design eliminates clearance, ensuring zero offset during 360° movement—critical for heavy-duty AGVs transporting 3-ton pallet loads in automated container terminals.

2. Manipulator Base and Wrist Joints: High-Rigidity Operation

• Palletizing Robot Base Rotation

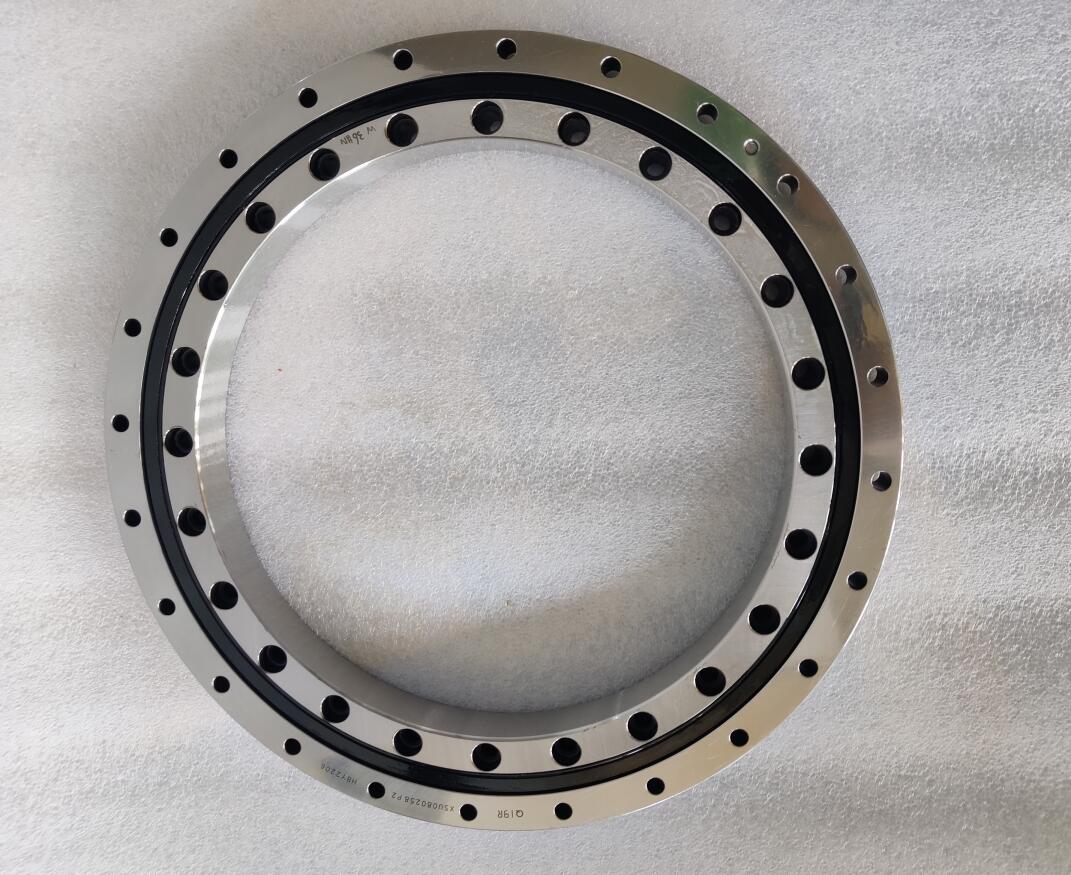

  Large-diameter cross roller bearings (e.g., XSU1200) with a 1.2-meter outer diameter support the base rotation of heavy-duty palletizing robots. Their crossed roller arrangement increases radial rigidity by 2.5 times compared to traditional bearings, enabling robots to handle 1.5-ton pallet stacks with ≤0.1 mm radial runout during 360° rotation.
• Surgical-Like Picking Wrists
  Miniature cross roller bearings (e.g., RA15) with a 30 mm outer diameter are embedded in robotic wrists for pharmaceutical sorting. The bearings’ 0.002 mm radial clearance allows end-effectors to grasp vials with a 5 mm diameter without shaking, meeting GMP standards for sterile drug handling.

3. Conveyor Turntables and Lifting Platforms: Stable Heavy-Load Transmission

• High-Speed Parcel Sorting Turntables
  XU-series cross roller turntable bearings (e.g., XU500) with a 500 mm diameter support sorting turntables rotating at 60 rpm. Their 4-point contact design distributes 2-ton dynamic loads evenly, ensuring 10,000+ parcels/hour can be sorted with a deviation of <5 mm from target chutes.
• Vertical Lifting AGV Platforms
  Crossed cylindrical roller bearings (e.g., CRBU120) in lifting columns enable 3-meter vertical movements with ≤0.2 mm verticality error. For cold storage logistics, these bearings (stainless steel + PTFE coating) maintain stability at -25°C, supporting the precise lifting of 800 kg frozen pallets.

4. Rotary Encoders and Sensors: Precision Position Feedback

• High-Accuracy Navigation Encoders
  Ultra-thin cross roller bearings (e.g., RB8) with a 16 mm outer diameter are integrated into rotary encoders of AGVs. Their P4-class precision (angular runout <0.003°) provides real-time position feedback with ≤0.02° error, enabling AGVs to navigate along racking systems with 50 mm clearance between shelves.
• 3D LiDAR Rotation Units
  CRBS-series cross roller bearings (e.g., CRBS60) allow LiDAR scanners to rotate at 20 Hz with <0.01° jitter, ensuring 3D environmental mapping accuracy within 10 mm. This is critical for dynamic obstacle avoidance in mixed human-robot warehouse environments.

5. Specialized Heavy-Duty Applications: Extreme Load Resistance

• Automated Container Stacking Cranes
  Custom cross roller bearings (inner diameter 2–3 meters) with segmented raceways withstand radial loads up to 500 tons, supporting the rotation of crane arms in port logistics. Their lubrication-free design (solid film lubricant) reduces maintenance by 80% in saltwater-corrosive environments.

Technical Comparison in Logistics Robotics

Cross roller bearings thus serve as the backbone for precision and heavy-load applications in logistics robotics, enabling the seamless integration of high-speed operation, accurate positioning, and durable performance in smart warehouse ecosystems.
