The NU28/900 MA Bearing: Engineering Excellence for Heavy-Duty Applications

In the realm of industrial machinery, bearings serve as the unsung heroes that enable smooth rotation, reduce friction, and support massive loads. Among the diverse range of bearing solutions, the NU28/900 MA stands out as a high-performance cylindrical roller bearing designed to meet the rigorous demands of heavy-duty applications. From large-scale motors and generators to rolling mills and mining equipment, this bearing plays a critical role in ensuring operational reliability and efficiency. To fully appreciate its value, it is essential to explore its design features, material composition, performance capabilities, and practical applications.

First and foremost, the designation “NU28/900 MA” carries specific engineering meanings that define the bearing’s core characteristics. The prefix “NU” indicates that this is a cylindrical roller bearing with two fixed outer rings and a separable inner ring without flanges. This structural design offers a key advantage: it allows for axial displacement of the shaft relative to the housing, making it ideal for applications where thermal expansion or slight misalignment may occur. The “28” denotes the bearing’s series, which classifies it as a heavy-duty variant optimized for high radial load capacity. The number “900” specifies the inner diameter of the bearing, measuring 900 millimeters—a dimension that places it in the category of large-sized bearings, tailored for equipment with substantial shaft diameters. Finally, “MA” signifies the type of cage used in the bearing, typically a brass cage with a solid structure, chosen for its durability and ability to maintain stable roller guidance even under extreme conditions.

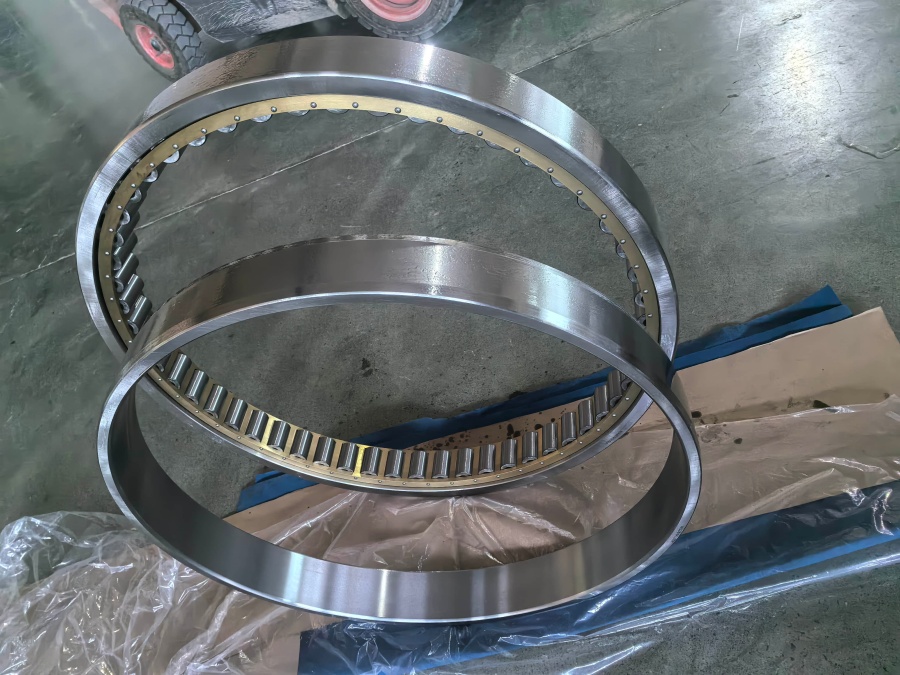

The structural design of the NU28/900 MA is a result of meticulous engineering aimed at balancing load-bearing capacity and operational flexibility. Cylindrical roller bearings, by nature, excel at handling radial loads, and the NU28/900 MA enhances this capability through its robust construction. The absence of flanges on the inner ring, combined with the double-flanged outer ring, creates a configuration that supports high radial loads while accommodating axial movement. This is particularly important in applications such as large electric motors, where the shaft may expand due to heat generated during operation; the bearing’s ability to absorb this expansion prevents damage to both the bearing and the surrounding components. Additionally, the bearing features precision-machined raceways on both the inner and outer rings, which ensure uniform load distribution across the rollers. This uniform distribution minimizes stress concentrations, reducing the risk of premature failure and extending the bearing’s service life.

Material selection is another critical factor that contributes to the NU28/900 MA’s exceptional performance. The bearing’s rings and rollers are typically manufactured from high-quality chrome steel, such as SUJ2 (JIS standard) or 100Cr6 (ISO standard). This material is renowned for its high hardness, excellent wear resistance, and superior fatigue strength—properties that are essential for withstanding the constant stress and friction encountered in heavy-duty operations. The steel undergoes a rigorous heat treatment process, including quenching and tempering, to achieve a hardness of approximately 60-64 HRC (Rockwell Hardness Scale), ensuring that it can resist deformation under heavy loads. The MA-design brass cage complements the steel components by providing a lightweight yet strong structure that guides the rollers smoothly. Brass is chosen for its excellent thermal conductivity, which helps dissipate heat generated during operation, and its resistance to corrosion, making the bearing suitable for use in harsh environments where moisture or chemical contaminants may be present.

When it comes to performance capabilities, the NU28/900 MA sets a high standard for large-sized cylindrical roller bearings. Its radial load capacity is one of its most notable features; depending on the operating conditions, it can support radial loads exceeding several hundred kilonewtons. This makes it an ideal choice for equipment such as rolling mills, where the bearing must withstand the immense pressure exerted during the metal rolling process. The bearing also exhibits excellent rotational accuracy, thanks to its precision manufacturing tolerances. This accuracy is crucial in applications like generators, where even slight deviations in rotation can affect power output and efficiency. Furthermore, the NU28/900 MA is designed to operate at moderate speeds, with a limiting speed typically ranging from 300 to 600 revolutions per minute (RPM), depending on the lubrication and cooling conditions. While it is not optimized for high-speed applications, its performance at moderate speeds is characterized by low friction and stable operation, which helps reduce energy consumption and operational costs.

Lubrication plays a vital role in maximizing the performance and service life of the NU28/900 MA. Proper lubrication forms a thin film between the rolling elements and the raceways, reducing friction and preventing metal-to-metal contact. For this bearing, grease lubrication is the most common choice, as it provides long-term lubrication and helps seal out contaminants. The type of grease selected depends on the operating temperature and load; for example, lithium-based greases are suitable for moderate temperatures, while polyurea-based greases offer better performance at higher temperatures. In addition to proper lubrication, regular maintenance is essential to ensure the bearing’s reliability. This includes periodic inspections to check for signs of wear, contamination, or lubricant degradation, as well as proper mounting and dismounting procedures to avoid damaging the bearing components. Given its large size, the NU28/900 MA often requires specialized tools for installation, and adherence to manufacturer guidelines is critical to prevent misalignment or excessive preload.

The practical applications of the NU28/900 MA span a wide range of industries, each with its own unique requirements. In the power generation sector, it is used in large generators and turbines, where it supports the heavy shafts and accommodates thermal expansion during operation. In the steel industry, it is a key component in rolling mills, where it withstands the high radial loads and shock loads associated with metal processing. The mining industry also relies on this bearing for equipment such as crushers and grinding mills, where it operates in harsh environments characterized by dust, moisture, and heavy vibrations. Additionally, it finds use in large industrial fans, blowers, and marine propulsion systems, where its durability and load-bearing capacity ensure reliable performance. In each of these applications, the NU28/900 MA contributes to minimizing downtime, reducing maintenance costs, and improving overall operational efficiency.

In conclusion, the NU28/900 MA cylindrical roller bearing represents a pinnacle of engineering design for heavy-duty industrial applications. Its unique combination of structural flexibility, high-quality materials, and exceptional load-bearing capacity makes it indispensable in equipment where reliability and performance are non-negotiable. From its carefully crafted designation that reveals its core characteristics to its practical role in powering critical industrial processes, every aspect of this bearing is tailored to meet the demands of modern heavy industry. As technology continues to advance, the NU28/900 MA and its derivatives will likely remain at the forefront of bearing solutions, adapting to new challenges and enabling the development of more efficient and durable machinery. For engineers and maintenance professionals, understanding the capabilities and requirements of this bearing is essential to ensuring the optimal performance of the equipment it serves.
