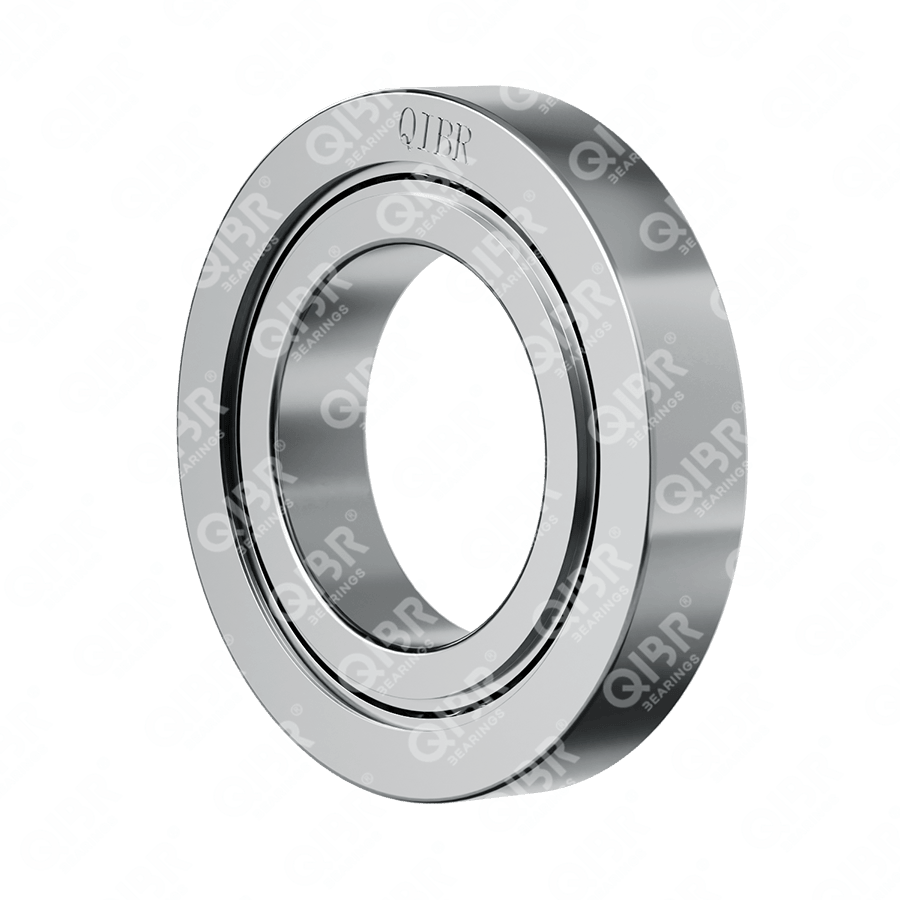

Image may differ from product. See technical specification for details.

CRBS

The crossed roller bearing is a special type of bearing in which the inner ring is split and the outer ring rotates. Since the separated inner ring or outer ring is equipped with rollers and spacer rings, which are fixed together with the cross roller ring to prevent separation from each other, it is easy to install the cross roller bearing. Since the rollers are arranged in a cross, only one set of crossed roller bearings can bear loads in all directions. Compared with standard bearings, the rigidity is increased by 3 to 4 times. At the same time, because the inner ring or outer ring of the crossed roller bearing is a separate structure, the bearing gap can be adjusted, and even if the preload is applied, high-precision rotational movement can be obtained. Moreover, due to its special structure, it is usually used as an articulated bearing in industrial robots.

Standard

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN / VDEh

Material

52100/100Cr6/SUJ2/Stainless Steel

Brand

QIBR/OEM/Neutral

Package

QIBR/Standard Industrial Package/OEM

Inner diameter

50~200mm

Outer diameter

66~226mm

Applications

Aerospace Industry, Robotics, Medical Devices, Semiconductor Manufacturing Equipment, Optical Equipment, Industrial Machinery, Automotive, etc

QIBR Model Selection

Filters

Chamfer dimension (r1)

Inner diameter (d)

Outer diameter (D)

Thickness

Type

Weight

NO.	Product Number	Chamfer dimension (r1)	Inner diameter (d)	Outer diameter (D)	Thickness	Type	Weight
1	CRBS 508	0.4 mm	50 mm	66 mm	8 mm	Open	84 kg
2	CRBS 508 V	0.4 mm	50 mm	66 mm	8 mm	Open	84 kg
3	CRBS 608 V	0.4 mm	60 mm	76 mm	8 mm	Open	94 kg
4	CRBS 608	0.4 mm	60 mm	76 mm	8 mm	Open	94 kg
5	CRBS 708 V	0.4 mm	70 mm	86 mm	8 mm	Open	108 kg
6	CRBS 708	0.4 mm	70 mm	86 mm	8 mm	Open	108 kg
7	CRBS 808 V	0.4 mm	80 mm	96 mm	8 mm	Open	122 kg
8	CRBS 808	0.4 mm	80 mm	96 mm	8 mm	Open	122 kg
9	CRBS 908 V	0.4 mm	90 mm	106 mm	8 mm	Open	135 kg
10	CRBS 908	0.4 mm	90 mm	106 mm	8 mm	Open	135 kg
11	CRBS 1008 V	0.4 mm	100 mm	116 mm	8 mm	Open	152 kg
12	CRBS 1008	0.4 mm	100 mm	116 mm	8 mm	Open	152 kg
13	CRBS 1108 V	0.4 mm	110 mm	126 mm	8 mm	Open	163 kg
14	CRBS 1108	0.4 mm	110 mm	126 mm	8 mm	Open	163 kg
15	CRBS 1208	0.4 mm	120 mm	136 mm	8 mm	Open	184 kg
16	CRBS 1208 V	0.4 mm	120 mm	136 mm	8 mm	Open	184 kg
17	CRBS 1308	0.4 mm	130 mm	146 mm	8 mm	Open	199 kg
18	CRBS 1308 V	0.4 mm	130 mm	146 mm	8 mm	Open	199 kg
19	CRBS 1408	0.4 mm	140 mm	156 mm	8 mm	Open	205 kg
20	CRBS 1408 V	0.4 mm	140 mm	156 mm	8 mm	Open	205 kg
21	CRBS 1508	0.4 mm	150 mm	166 mm	8 mm	Open	220 kg
22	CRBS 1508 V	0.4 mm	150 mm	166 mm	8 mm	Open	220 kg
23	CRBS 16013	0.6 mm	160 mm	186 mm	13 mm	Open	620 kg
24	CRBS 16013 V	0.6 mm	160 mm	186 mm	13 mm	Open	620 kg
25	CRBS 17013 V	0.6 mm	170 mm	196 mm	13 mm	Open	675 kg
26	CRBS 17013	0.6 mm	170 mm	196 mm	13 mm	Open	675 kg
27	CRBS 18013 V	0.6 mm	180 mm	206 mm	13 mm	Open	710 kg
28	CRBS 18013	0.6 mm	180 mm	206 mm	13 mm	Open	710 kg
29	CRBS 19013 V	0.6 mm	190 mm	216 mm	13 mm	Open	740 kg
30	CRBS 19013	0.6 mm	190 mm	216 mm	13 mm	Open	740 kg
31	CRBS 20013 V	0.6 mm	200 mm	226 mm	13 mm	Open	780 kg
32	CRBS 20013	0.6 mm	200 mm	226 mm	13 mm	Open	780 kg

Features and advantages of QIBR Crossed Cylindrical Roller Bearings CRBS Series

QIBR Crossed Cylindrical Roller Bearings CRBS Series have many significant features and advantages, which can solve key problems in various fields, mainly in the following aspects:

1. QIBR crossed cylindrical roller bearings CRBS series have the characteristics of high rigidity and high load carrying capacity

QIBR Crossed Cylindrical Roller Bearings CRBS Series have good rigidity and load carrying capacity despite their compact design and are suitable for high load applications.

2. QIBR Crossed Cylindrical Roller Bearings CRBS Series Characteristics of optimized structural design

QIBR Crossed Cylindrical Roller Bearings CRBS series have extremely small inner and outer diameters and are particularly compact, making them more adaptable to space-restricted areas.

3. QIBR Crossed Cylindrical Roller Bearings CRBS Series low friction and high efficiency

QIBR Crossed Cylindrical Roller Bearings CRBS Series reduce bearing friction torque and are suitable for use where low driving torque is required, improving the overall operating efficiency of the equipment.

4. QIBR Crossed Cylindrical Roller Bearings CRBS Series Customized Service

QIBR Crossed Cylindrical Roller Bearings CRBS Series usually provide customized service, which can design the bearings according to the specific needs and meet the special requirements and working conditions of different industries.

QIBR Crossed Cylindrical Roller Bearings CRBS Series Performance Improvement and Solutions

1. Effective improvement of material properties to enhance high load carrying capacity

QIBR Crossed Cylindrical Roller Bearings CRBS Series are manufactured with high quality steel for the inner and outer rings and balls, and vacuum heat treatment is used to improve the surface hardness and material properties, thus increasing the load carrying capacity and service life of the bearings.

2. Improvement of manufacturing precision and load capacity

QIBR Crossed Cylindrical Roller Bearings CRBS Series adopt foreign advanced processing equipment and technology, such as precision grinding, etc., to improve the geometric accuracy of the inner and outer rings and balls, reduce processing errors, thus improving the rotational accuracy and stability of the bearing.

3. Personalized design

For different occasions on the QIBR Crossed Cylindrical Roller Bearings CRBS Series application requirements, to provide personalized structure and size of the program to meet specific performance requirements. This approach not only enriches the standard of bearings, but also provides effective guidance for manufacturers to meet the individual needs of users.

In a word, through optimizing materials, manufacturing precision, personalized design and other measures, the performance of QIBR Crossed Cylindrical Roller Bearings CRBS Series can be significantly improved to meet the increasingly demanding application requirements.

QIBR Crossed Cylindrical Roller Bearings CRBS Series Main Application Areas

High-end CNC machine tools

QIBR Crossed Cylindrical Roller Bearings CRBS Series can improve the machining accuracy of machine tools and ensure the production of high quality parts. They provide stable support and precise workpiece positioning in high-precision machining.

Industrial Robots

QIBR Crossed Cylindrical Roller Bearings CRBS Series have high rigidity and can effectively withstand loads from all directions while providing high-precision motion control for industrial robot joint parts.

Aerospace

QIBR Crossed Cylindrical Roller Bearings CRBS Series provide high load support in limited space, making them ideal for space-constrained applications. Ensure accuracy and stability in the attitude adjustment systems of satellites.
