Joint Bearing

Application: Agricultural Equipment, Material Handling Equipment, Automotive Industry, Mining and Construction, Food and Beverage Industry and Industrial Machinery, etc.

Alternative Brands: INA

Subseries:

GE..DO, GE..DO-2RS
GE..FO, GE..FO-2RS
GE..PB
...

Specifications:

Bore diameter: 4mm-1000mm
Outer diameter: 14mm-1320mm
Width: 6mm-438mm
Weight: 0.004kg-1755kg

Search for the bearing model you need

Joint Bearing

GE..AW

Sliding contact surfaces made of hard chromium/PTFE.

Accuracy

Temperature Resistance

GE..AW

Sliding contact surfaces made of hard chromium/PTFE.

GE..AX

GE spherical plain bearing, constructed from GCr15 bearing steel with quenched and phosphated inner and outer rings, featuring oil grooves, cylinders, axial slots, and MoS2 powder lubrication, offering superior abrasion and corrosion resistance.

GE..AX

GE..DO,GE..DO-2RS

The GE..DO series, ranging from sizes 6 to 300, have an outer ring with a single axial split. For the GE..DO series sized 320 to 1000, the outer ring is double split axially and is shipped with retaining rings.

Accuracy

Speed

Temperature Resistance

Stability

Lifetime

Price

GE..DO,GE..DO-2RS

GE..DW

Dimension series E-ISO 6124/3, features sliding contact surfaces made of hard chromium/PTFE.

GE..DW

Dimension series E-ISO 6124/3, features sliding contact surfaces made of hard chromium/PTFE.

GE..FO,GE..FO-2RS

This type of bearing features a wide inner ring with an increased tilting angle and an outer ring with a single axial split.

GE..FO,GE..FO-2RS

This type of bearing features a wide inner ring with an increased tilting angle and an outer ring with a single axial split.

GE..FW GE..FW-2RS

The metric DIN 648, dimension series G-ISO 6124/1, features sliding contact surfaces made of hard chromium/PTFE, matching the dimensions with series GE..FO.

GE..FW GE..FW-2RS

The metric DIN 648, dimension series G-ISO 6124/1, features sliding contact surfaces made of hard chromium/PTFE, matching the dimensions with series GE..FO.

GE..HO-2RS

The bearing features steel/steel sliding contact surfaces, hardened inner and outer rings, an extended inner ring for clevis mount, and an outer ring with a single axial split.

Accuracy

Speed

Temperature Resistance

Stability

Lifetime

Price

GE..HO-2RS

The bearing features steel/steel sliding contact surfaces, hardened inner and outer rings, an extended inner ring for clevis mount, and an outer ring with a single axial split.

GE..LO

This type of bearing adheres to DIN 648, dimension series EW-ISO 6124/2, and features sliding contact surfaces made of steel/steel.

GE..LO

This type of bearing adheres to DIN 648, dimension series EW-ISO 6124/2, and features sliding contact surfaces made of steel/steel.

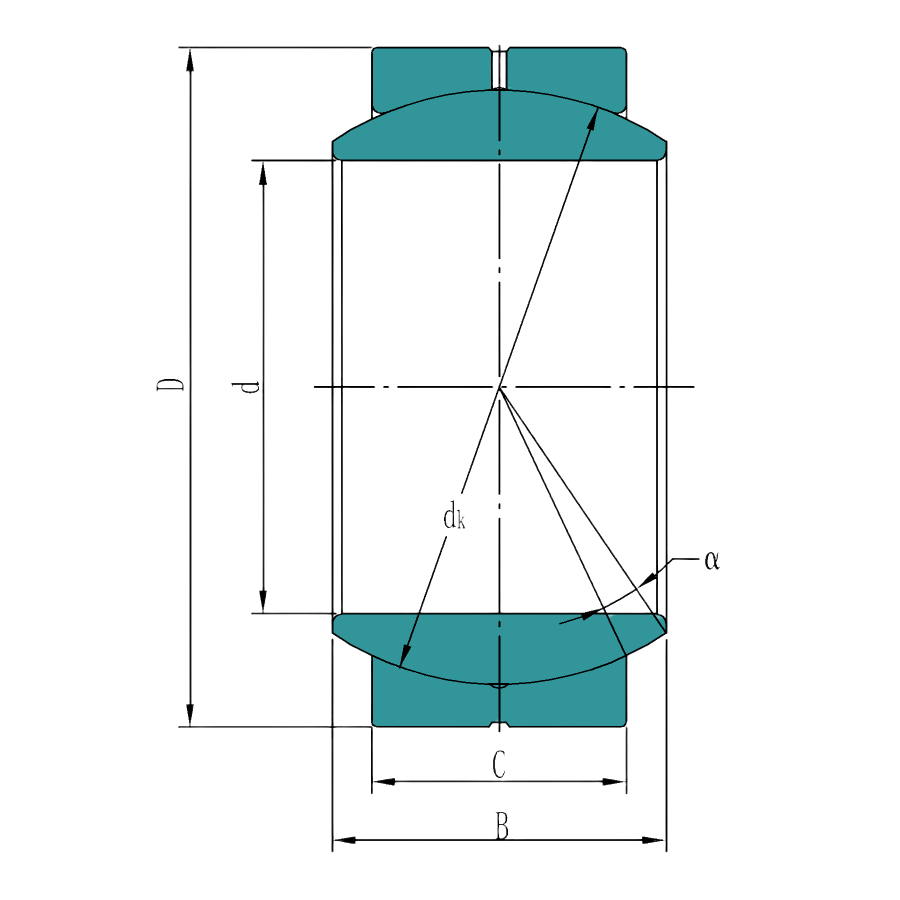

GE..PB

The bearing conforms to the DIN 648 dimension series K and features sliding contact surfaces made of steel/bronze.

GE..PB

The bearing conforms to the DIN 648 dimension series K and features sliding contact surfaces made of steel/bronze.

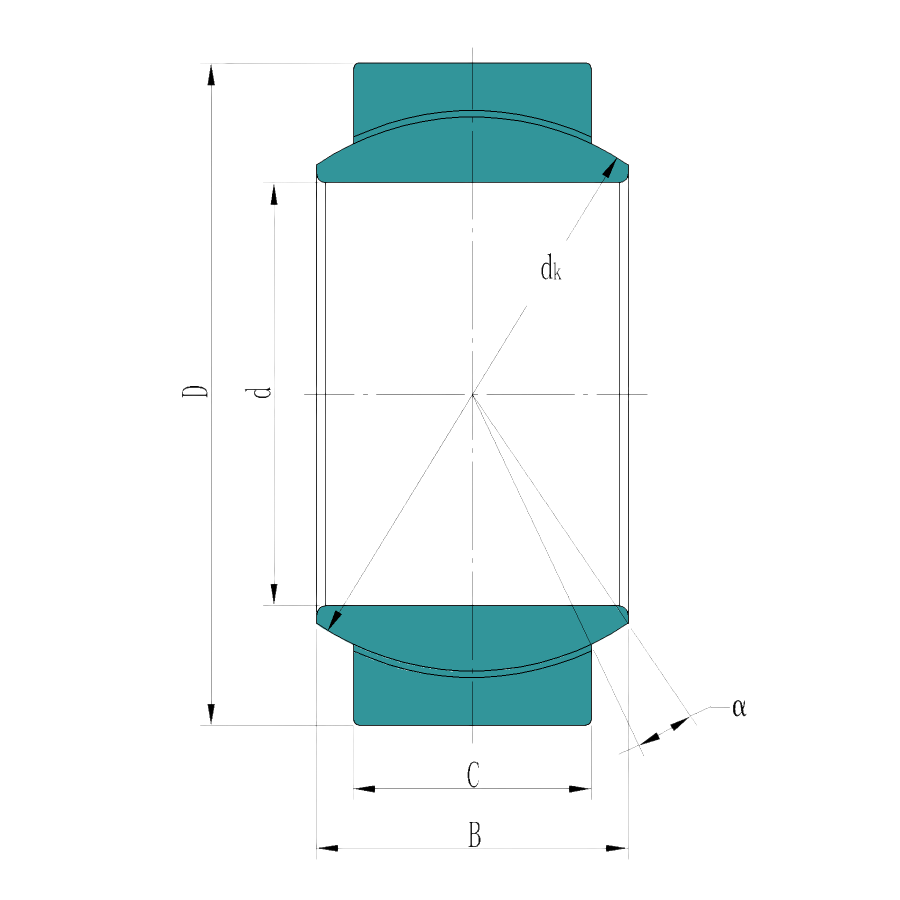

GE..PW

The metric DIN 648, dimension series K, is maintenance-free with sliding contact surfaces made of steel/PTFE.

Abrasion resistance

Temperature Resistance

GE..PW

The metric DIN 648, dimension series K, is maintenance-free with sliding contact surfaces made of steel/PTFE.

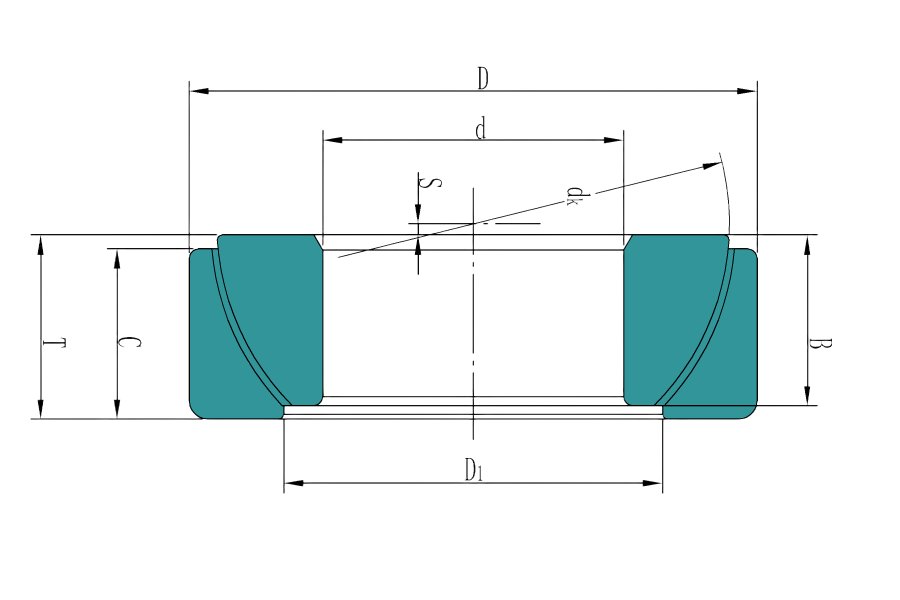

GE..SW

Sliding contact surfaces made of hard chromium/PTFE.

GE..SW

Sliding contact surfaces made of hard chromium/PTFE.

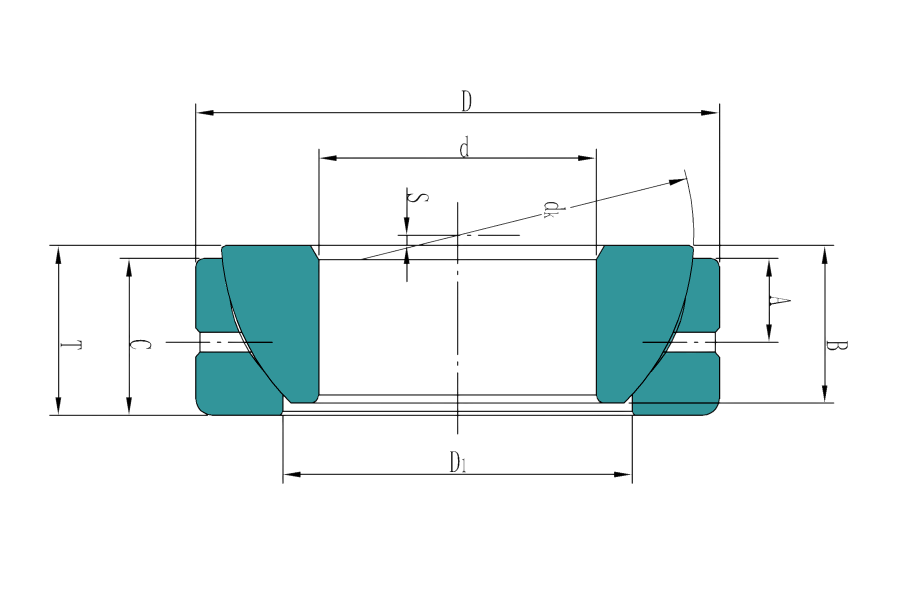

GE..SX

This type of sliding bearing with a steel contact surface.

GE..SX

This type of sliding bearing with a steel contact surface.

GE..UK-2RS GE..UK

Dimension series E-ISO 6124/1, features sliding contact surfaces made of hard chromium/PTFE. Additionally, sliding contact surfaces are available with corrosion-resistant steel/PTFE.

GE..UK-2RS GE..UK

Dimension series E-ISO 6124/1, features sliding contact surfaces made of hard chromium/PTFE. Additionally, sliding contact surfaces are available with corrosion-resistant steel/PTFE.

GE..ZO

This inch series bearing features steel/steel sliding contact surfaces, hardened inner and outer rings, and an outer ring with a single axial split.

GE..ZO

This inch series bearing features steel/steel sliding contact surfaces, hardened inner and outer rings, and an outer ring with a single axial split.

GE..ZO-2RS

The inch series bearing features steel/steel sliding contact surfaces, hardened inner and outer rings, and an outer ring with a single axial split.

GE..ZO-2RS

The inch series bearing features steel/steel sliding contact surfaces, hardened inner and outer rings, and an outer ring with a single axial split.
