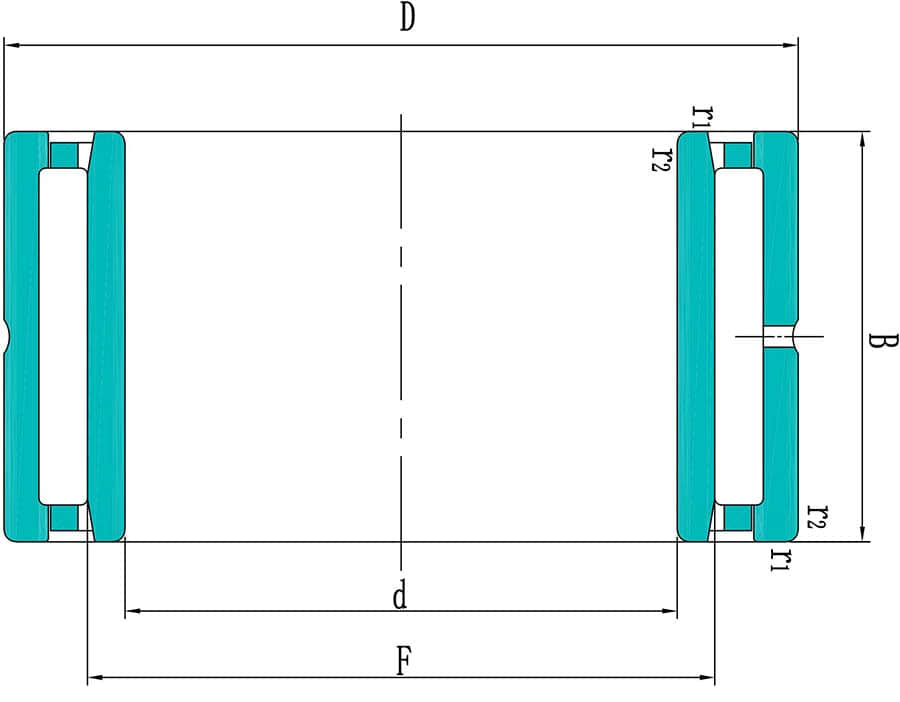

NA 4917
- Inner diameter:
- 85 mm
- Outer diameter:
- 120 mm
- Width:
- 35 mm
- Mass:
- 1.25 kg
We will provide you with the most suitable solution.
Image may differ from product. See technical specification for details.
Specifications
Seris - NA 4917
Description
QIBR - NA 4917 Needle Roller Bearing Advantages and Applications
NA 4917 Needle Roller Bearing, low friction, high load-bearing capacity, Bore is 85 mm, Outer diameter (D) is 120 mm, Width (B) is 35 mm, Mass is 1.25 kg, suitable for automobile engines, aircraft landing gear and gearboxes, etc., and is the most widely used bearing in working conditions with high load-bearing capacity requirements.
QIBR - NA 4917 Needle Roller Bearing Characteristics
NA 4917 Needle Roller Bearing, strong adaptability, easy installation and maintenance. NA 4917 Needle Roller Bearing, can withstand radial loads and small unidirectional axial loads, suitable for mechanical equipment with high stability requirements.
NA 4917 Needle Roller Bearing Features and Advantages
High load capacity: Needle bearings can withstand significant axial and radial loads, making them suitable for various heavy machinery and equipment.
High Precision: The manufacturing precision of needle bearings is high, with low rotational inertia, enabling high-precision operation.
Low Friction Coefficient: With a low friction coefficient, needle bearings effectively reduce frictional resistance during operation, minimizing energy loss.
Compact Structure and Lightweight: The overall structure is compact and lightweight, making it suitable for support structures with limited radial installation space.
Application: Needle roller bearings have a wide range of applications in industries such as automotive, aerospace, industrial machinery, construction and agricultural equipment, home appliances, shipbuilding, and medical devices.
QIBR - NA 4917 Needle Roller Bearing Optimization
Structural Optimization: Adjusting the arrangement of needles or the contact angle based on customer requirements and bearing operating conditions.
Cage Material: Material selection for the cage can be customized based on customer needs, including low carbon steel, stainless steel, PA66, etc.
High-Performance Materials: Choosing suitable materials based on customer requirements, such as DC03M, C15Mn, 16MnCr5, etc.
Heat Treatment: Carburizing or carbonitriding and quenching treatment of the outer ring and cage according to the bearing's operating conditions.
More customization: QIBR can design and optimize bearings based on customer operating conditions and requirements.
QIBR - NA 4917 Needle Roller Bearing Quality Control
Dimension measurement: Using various high-precision instruments to measure multiple dimensions of the bearings, achieving a maximum precision of 0.001mm.
Rotation accuracy: Measuring small defects or deviations on the bearing surface with a micrometer, with a measurement precision of up to 0.001mm.
Hardness measurement: Surface hardness is measured using a hardness tester, with an accuracy of ±0.5HRC.
Metallographic analysis: Internal metallographic structure is analyzed using a professional metallographic microscope.
Geometric tolerance: A contour gauge measures the bearing's geometric shape and relative position.
Noise monitoring: A vibration meter monitors vibration during operation to obtain noise data.
Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.
Features & Benefits
Needle roller bearings are used in various applications across different industries due to their high load-carrying capacity and compact design.
