Model Selection
| NO. | Product | Product Number | Overall height (H) | Outer diameter (Do) | Height of outer ring (Ho) | Inner diameter (di) | Gear Type | Height of inner ring (Hi) |
|---|---|---|---|---|---|---|---|---|
| 1 |
|
Q16282001 | 4.500in | 20.375in | 4.185in | 12.250in | No Gear | 4.185in |
| 2 |
|
Q16283001 | 7.000in | 29.750in | 6.500in | 18.620in | No Gear | 6.551in |
| 3 |
|
Q16284001 | 7.480in | 41.417in | 6.890in | 30.236in | No Gear | 6.890in |
| 4 |
|
Q16015001 | 6.750in | 56.250in | 6.380in | 43.750in | No Gear | 6.380in |
| 5 |
|
Q16285001 | 8.750in | 75.750in | 8.375in | 59.750in | No Gear | 8.375in |
| 6 |
|
Q16286001 | 8.000in | 131.000in | 7.500in | 114.000in | No Gear | 7.500in |
| 7 |
|
Q13004001 | 9.875in | 170.000in | 9.250in | 150.000in | No Gear | 9.250in |
| 8 |
|

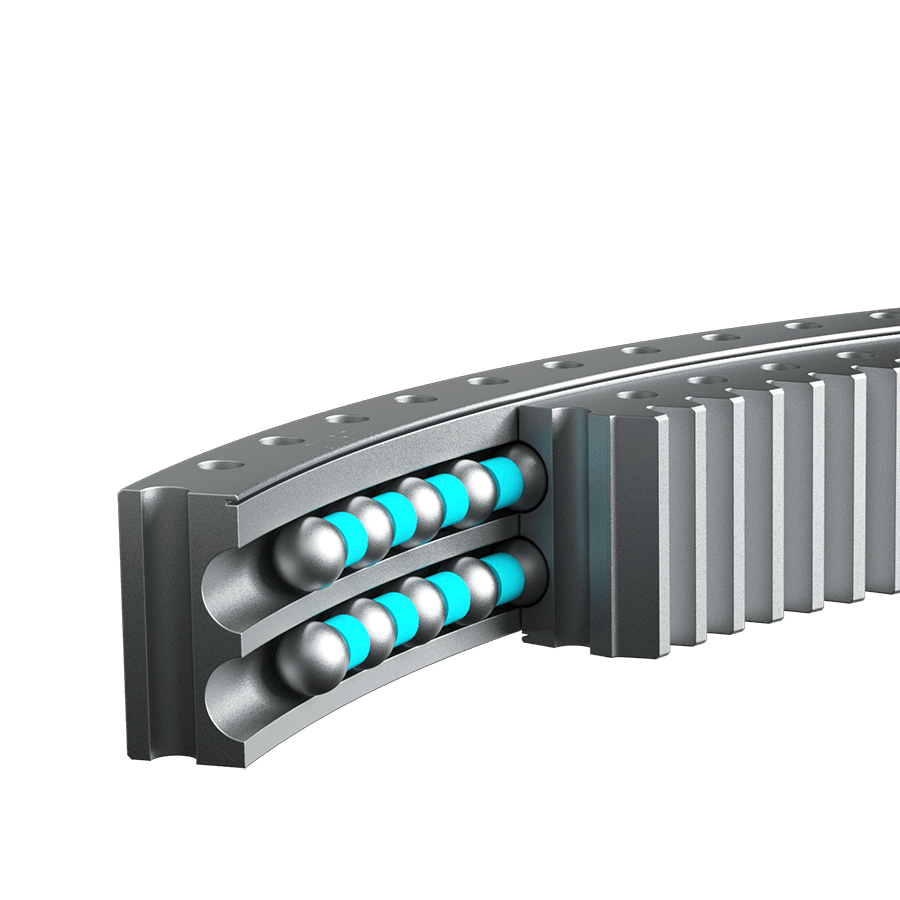

Q16274001 | 5.472in | 56.693in | 5.118in | 43.661in | Internal Gear | 5.118in |
| 9 |
|
Q16275001 | 8.000in | 66.000in | 7.625in | 47.600in | Internal Gear | 7.625in |
| 10 |
|
Q16276001 | 8.625in | 70.500in | 8.312in | 50.200in | Internal Gear | 8.312in |
| 11 |
|
Q16277001 | 5.591in | 81.890in | 5.197in | 65.248in | Internal Gear | 5.197in |
| 12 |
|
Q16278001 | 7.126in | 94.173in | 6.732in | 77.008in | Internal Gear | 6.732in |
| 13 |
|
Q16279001 | 9.312in | 109.375in | 8.937in | 87.170in | Internal Gear | 8.000in |
| 14 |
|
Q16280001 | 8.750in | 121.000in | 8.438in | 98.400in | Internal Gear | 8.438in |
| 15 |
|
Q16281001 | 11.180in | 141.000in | 10.000in | 114.941in | Internal Gear | 10.430in |
| 16 |
|
Q16258001 | 3.313in | 17.086in | 3.000in | 10.250in | External Gear | 3.000in |
| 17 |
|
Q16264001 | 5.512in | 50.016in | 5.517in | 38.504in | External Gear | 4.567in |
| 18 |
|
Q16265001 | 7.125in | 56.240in | 6.688in | 41.370in | External Gear | 6.688in |
| 19 |
|
Q16266001 | 7.375in | 68.800in | 6.875in | 51.250in | External Gear | 7.000in |
| 20 |
|
Q16267001 | 6.110in | 75.394in | 5.750in | 58.500in | External Gear | 5.750in |
| 21 |
|
Q16268001 | 7.090in | 89.181in | 6.650in | 71.400in | External Gear | 6.730in |
| 22 |
|
Q16269001 | 9.125in | 94.742in | 8.375in | 72.250in | External Gear | 8.750in |
| 23 |
|
Q16270001 | 7.205in | 102.992in | 6.654in | 84.134in | External Gear | 6.654in |
| 24 |
|
Q16271001 | 11.250in | 124.800in | 9.375in | 98.375in | External Gear | 10.750in |
| 25 |
|
Q16272001 | 11.062in | 143.800in | 10.250in | 114.000in | External Gear | 10.437in |
| 26 |
|
Q16273001 | 10.625in | 180.000in | 10.000in | 150.000in | External Gear | 10.000in |
