DBS Truck Crane Use

DBS Truck Crane Use

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Inner Diameter

120mm-8000mm

Outer Diameter

280mm-8000mm

Weight

20kg-8000kg

Structures

Outer Ring, Inner Ring, Spacer, Rolling element, Seal

Brand

QIBR/OEM/Neutral

Package

Standard Export Package

Material

42CrMo, 50Mn, or Stainless Steel

Applications

Hoisting machinery, construction machinery, material handling machinery, mining machinery, metallurgical machinery, medical instruments,ships and warships, radar,wind turbine

DBS Truck Crane Use

QIBR

Model Selection

Filters

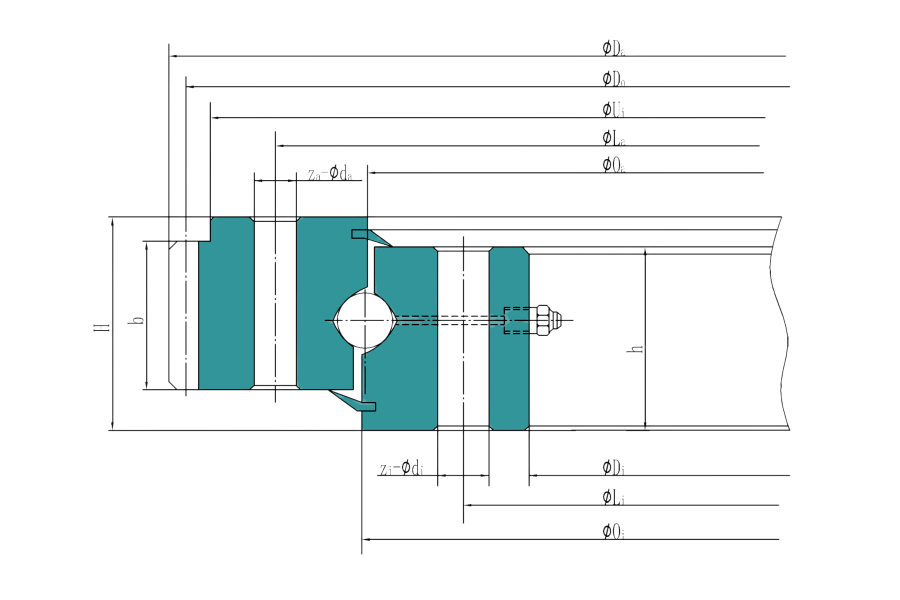

NO. Product Product Number Inner diameter (Di) Overall height (H) Gear Type Outer diameter （Da） Gear pitch circle Dia. (Do) Weigt (kg)
1 225DBS202y/ 225DBS202y 225mm 58mm External Gear 415mm 405mm 30
2 225DBS209y/ 225DBS209y 225mm 60mm External Gear 415mm 405mm 32
3 240DBS202y/ 240DBS202y 240mm 72mm External Gear 456mm 444mm 42
4 238DBS201y/ 238DBS201y 238mm 74mm External Gear 456mm 444mm 46
5 242DBS247y/ 242DBS247y 242mm 78mm External Gear 456mm 444mm 47
6 260DBS203y/ 260DBS203y 260mm 80mm External Gear 460mm 450mm 48
7 260DBS205y/ 260DBS205y 260mm 80mm External Gear 468mm 456mm 50
8 324DBS242t/ 324DBS242t 324mm 56mm External Gear 520.3mm 513.08mm 42
9 300DBS202y/ 300DBS202y 300mm 73mm External Gear 522mm 510mm 55
10 310DBS201y/ 310DBS201y 310mm 80mm External Gear 528mm 516mm 62
