KD600-type 625

KD600-type 625

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Inner Diameter

120mm-8000mm

Outer Diameter

280mm-8000mm

Weight

20kg-8000kg

Structures

Outer Ring, Inner Ring, Spacer, Rolling element, Seal

Brand

QIBR/OEM/Neutral

Package

Standard Export Package

Material

42CrMo, 50Mn, or Stainless Steel

Applications

Hoisting machinery, construction machinery, material handling machinery, mining machinery, metallurgical machinery, medical instruments,ships and warships, radar,wind turbine

KD600-type 625

QIBR

Model Selection

Filters

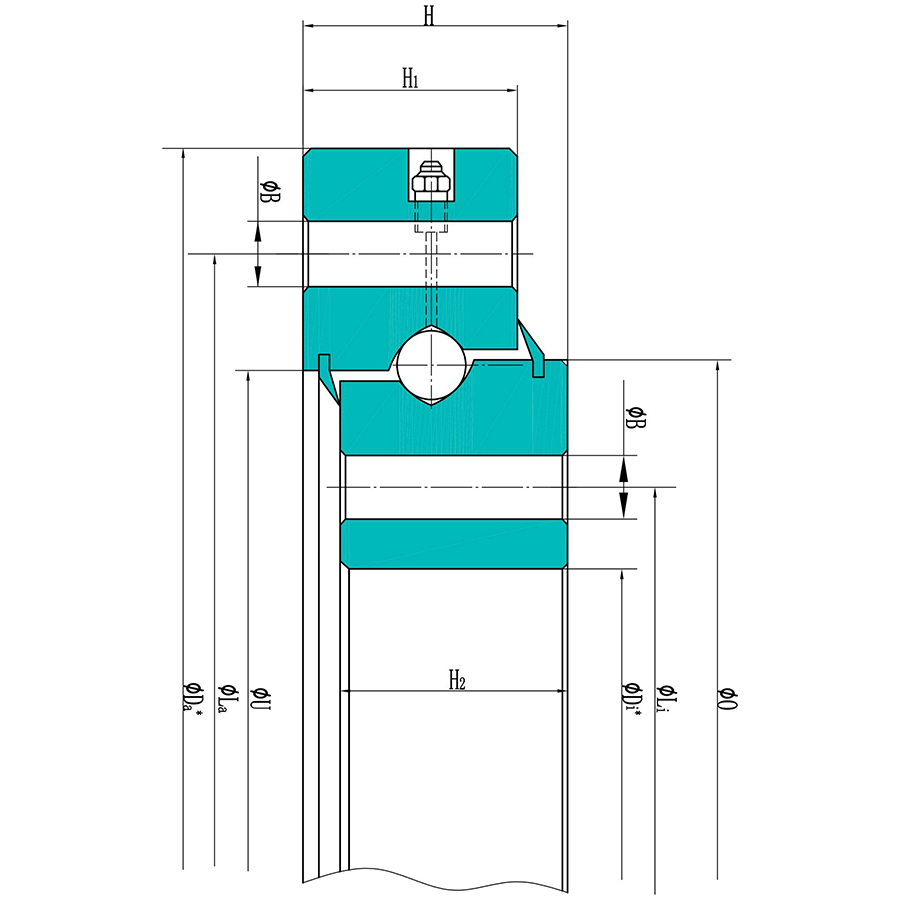

NO. Product Product Number Outer Diameter (Da) Inner diameter (Di) Overall height (H) External bolt circle diameter (La) Internal bolt circle diameter (Li) Gear Type
1 060.25.0855.500.11.1503/ 060.25.0855.500.11.1503 955mm 755mm 63mm 915mm 795mm No Gear
3 060.25.1055.500.11.1503/ 060.25.1055.500.11.1503 1155mm 955mm 63mm 1115mm 995mm No Gear
4 060.25.1155.500.11.1503/ 060.25.1155.500.11.1503 1255mm 1055mm 63mm 1215mm 1095mm No Gear
5 060.25.1255.500.11.1503/ 060.25.1255.500.11.1503 1355mm 1155mm 63mm 1315mm 1195mm No Gear
6 060.25.1355.500.11.1503/ 060.25.1355.500.11.1503 1455mm 1255mm 63mm 1415mm 1295mm No Gear
7 060.25.1455.500.11.1503/ 060.25.1455.500.11.1503 1555mm 1355mm 63mm 1515mm 1395mm No Gear
8 061.25.0855.500.11.1503/ 061.25.0855.500.11.1503 997.2mm 755mm 80mm 916mm 795mm External Gear
9 061.25.0955.500.11.1503/ 061.25.0955.500.11.1503 1096.2mm 855mm 80mm 1016mm 895mm External Gear
10 061.25.1055.500.11.1503/ 061.25.1055.500.11.1503 1198.2mm 955mm 80mm 1116mm 995mm External Gear
11 061.25.1155.500.11.1503/ 061.25.1155.500.11.1503 1298.2mm 1055mm 80mm 1216mm 1095mm External Gear
12 061.25.1255.500.11.1503/ 061.25.1255.500.11.1503 1398.2mm 1155mm 80mm 1316mm 1195mm External Gear
13 061.25.1355.500.11.1503/ 061.25.1355.500.11.1503 1498.2mm 1255mm 80mm 1416mm 1295mm External Gear
14 061.25.1455.500.11.1503/ 061.25.1455.500.11.1503 1598.2mm 1355mm 80mm 1516mm 1395mm External Gear
15 062.25.0855.500.11.1503/ 062.25.0855.500.11.1503 955mm 710mm 80mm 915mm 794mm Internal Gear
16 062.25.0955.500.11.1503/ 062.25.0955.500.11.1503 1055mm 810mm 80mm 1015mm 894mm Internal Gear
17 062.25.1055.500.11.1503/ 062.25.1055.500.11.1503 1155mm 910mm 80mm 1115mm 994mm Internal Gear
18 062.25.1155.500.11.1503/ 062.25.1155.500.11.1503 1255mm 1010mm 80mm 1215mm 1094mm Internal Gear
19 062.25.1255.500.11.1503/ 062.25.1255.500.11.1503 1355mm 1110mm 80mm 1315mm 1194mm Internal Gear
20 062.25.1355.500.11.1503/ 062.25.1355.500.11.1503 1455mm 1210mm 80mm 1415mm 1294mm Internal Gear
21 062.25.1455.500.11.1503/ 062.25.1455.500.11.1503 1555mm 1310mm 80mm 1515mm 1394mm Internal Gear
22 060.25.0855.575.11.1403/ 060.25.0855.575.11.1403 953 -0.14mm 757 +0.14mm 63mm 915mm 795mm No Gear
23 060.25.0955.575.11.1403/ 060.25.0955.575.11.1403 1053 -0.17mm 857 +0.14mm 63mm 1015mm 895mm No Gear
24 060.25.1055.575.11.1403/ 060.25.1055.575.11.1403 1153 -0.17mm 957 +0.14mm 63mm 1115mm 995mm No Gear
25 060.25.1155.575.11.1403/ 060.25.1155.575.11.1403 1253 -0.20mm 1057 +0.17mm 63mm 1215mm 1095mm No Gear
26 060.25.1255.575.11.1403/ 060.25.1255.575.11.1403 1353 -0.20mm 1157 +0.17mm 63mm 1315mm 1195mm No Gear
27 060.25.1355.575.11.1403/ 060.25.1355.575.11.1403 1453 -0.20mm 1257 +0.20mm 63mm 1415mm 1295mm No Gear
28 060.25.1455.575.11.1403/ 060.25.1455.575.11.1403 1553 -0.20mm 1357 +0.20mm 63mm 1515mm 1395mm No Gear
29 061.25.0855.575.11.1403/ 061.25.0855.575.11.1403 997.2mm 757 +0.14mm 80mm 916mm 795mm External Gear
30 061.25.0955.575.11.1403/ 061.25.0955.575.11.1403 1096.2mm 857 +0.14mm 80mm 1016mm 895mm External Gear
31 061.25.1055.575.11.1403/ 061.25.1055.575.11.1403 1198.2mm 957 +0.14mm 80mm 1116mm 995mm External Gear
32 061.25.1155.575.11.1403/ 061.25.1155.575.11.1403 1298.2mm 1057 +0.17mm 80mm 1216mm 1095mm External Gear
33 061.25.1255.575.11.1403/ 061.25.1255.575.11.1403 1398.2mm 1157 +0.17mm 80mm 1316mm 1195mm External Gear
34 061.25.1355.575.11.1403/ 061.25.1355.575.11.1403 1498.2mm 1257 +0.20mm 80mm 1416mm 1295mm External Gear
35 061.25.1455.575.11.1403/ 061.25.1455.575.11.1403 1598.2mm 1357 +0.20mm 80mm 1516mm 1395mm External Gear
36 062.25.0855.575.11.1403/ 062.25.0855.575.11.1403 953 -0.14mm 710mm 80mm 915mm 794mm Internal Gear
37 062.25.0955.575.11.1403/ 062.25.0955.575.11.1403 1053 -0.17mm 810mm 80mm 1015mm 894mm Internal Gear
38 062.25.1055.575.11.1403/ 062.25.1055.575.11.1403 1153 -0.17mm 910mm 80mm 1115mm 994mm Internal Gear
39 062.25.1155.575.11.1403/ 062.25.1155.575.11.1403 1253 -0.20mm 1010mm 80mm 1215mm 1094mm Internal Gear
40 062.25.1255.575.11.1403/ 062.25.1255.575.11.1403 1353 -0.20mm 1110mm 80mm 1315mm 1194mm Internal Gear
41 062.25.1355.575.11.1403/ 062.25.1355.575.11.1403 1453 -0.20mm 1210mm 80mm 1415mm 1294mm Internal Gear
42 062.25.1455.575.11.1403/ 062.25.1455.575.11.1403 1553 -0.20mm 1310mm 80mm 1515mm 1394mm Internal Gear
