E.20.C

E.20.C

Standards

GB,ASTM/AISI,ГОСТ,BS,JIS,NF,DIN/VDEh,DIN/VDEh

Inner Diameter

120mm-8000mm

Outer Diameter

280mm-8000mm

Weight

20kg-8000kg

Structures

Outer Ring, Inner Ring, Spacer, Rolling element, Seal

Brand

QIBR/OEM/Neutral

Package

Standard Export Package

Material

42CrMo, 50Mn, or Stainless Steel

Applications

Hoisting machinery, construction machinery, material handling machinery, mining machinery, metallurgical machinery, medical instruments,ships and warships, radar,wind turbine

E.20.C

QIBR

Model Selection

Filters

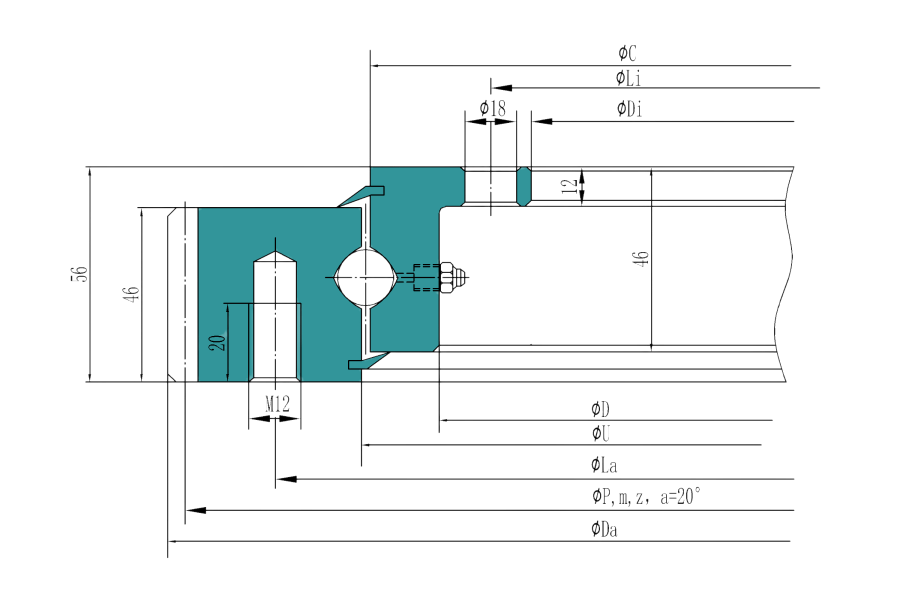

NO. Product Product Number Outer Diameter (Da) Internal diameter on outer ring (U) External diameter on inner ring (C) Inner diameter (Di) Gear Type Flange Diameter of Inner Ring (D)
1 E.505.20.00.C/ E.505.20.00.C 504mm 415.5mm 412.5mm 304mm External Gear 375mm
2 E.650.20.00.C/ E.650.20.00.C 640.8mm 545.5mm 542.5mm 434mm External Gear 505mm
3 E.750.20.00.C/ E.750.20.00.C 742.8mm 645.5mm 642.5mm 534mm External Gear 605mm
4 E.850.20.00.C/ E.850.20.00.C 838.8mm 745.5mm 742.5mm 634mm External Gear 705mm
5 E.950.20.00.C/ E.950.20.00.C 950.4mm 845.5mm 842.5mm 734mm External Gear 805mm
6 E.1050.20.00.C/ E.1050.20.00.C 1046.4mm 945.5mm 942.5mm 834mm External Gear 905mm
7 E.1200.20.00.C/ E.1200.20.00.C 1198.4mm 1095.5mm 1092.5mm 984mm External Gear 1055mm
