Single row Tapered roller bearings

Application : Heavy machinery, automotive..

Alternative Brands : Timken

Subseries :

Single Row Tapered Roller Bearings—Type TS
Single Row Tapered Roller Bearings—Type TSF
Single Row Tapered Roller Bearings—Type TSL
...

Specifications :

Outer Diameter (D) : 40mm-1800mm
Inner Diameter (D) : 20mm-1600mm
Overall Width (H) : 13mm-1150mm
…

Single row Tapered roller bearings

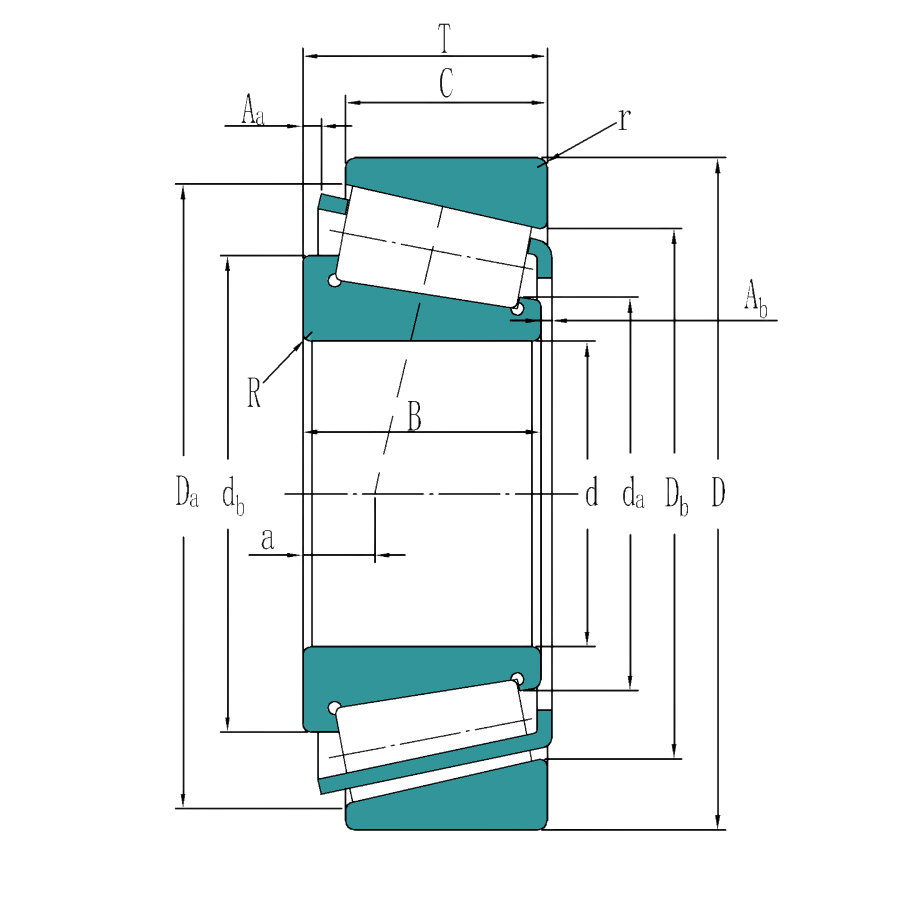

Single row Tapered roller bearings-Type TS

Single row tapered roller bearings of type TS (Tapered Single) are one of the most common types of roller bearings used in various industries, especially in automotive, aerospace, and industrial machinery applications.

Single row Tapered roller bearings-Type TS

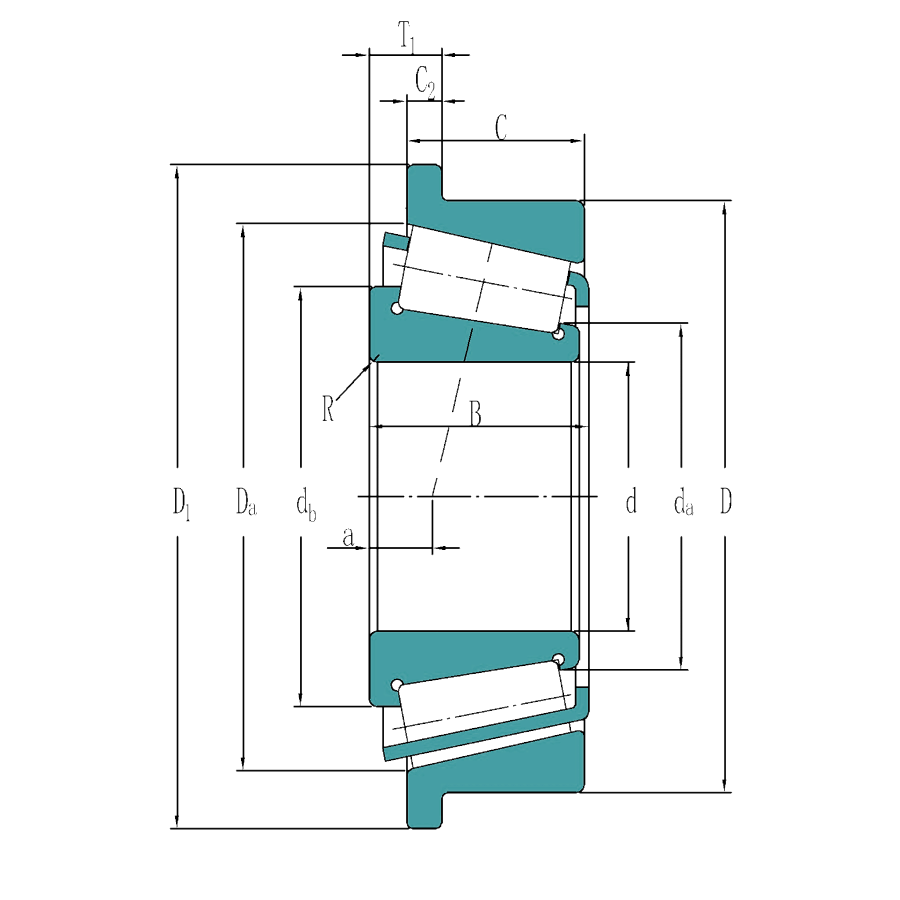

Single row Tapered roller bearings-Type TSF

TSF bearings have a flanged outer ring with a raceway that can accommodate the bearing's axial load in one direction. The inner ring assembly (cone) and the outer ring (cup) are separable for easy mounting and dismounting.

Single row Tapered roller bearings-Type TSF

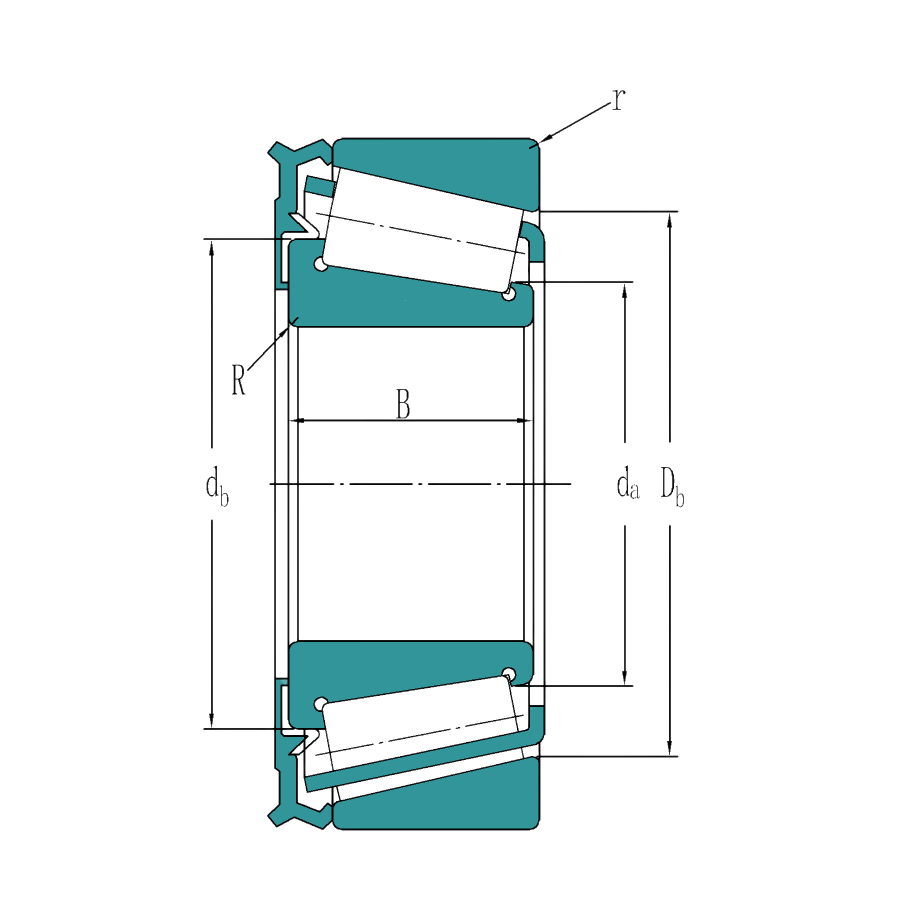

Single row Tapered roller bearings-Type TSL

TSL bearings feature a flanged cup design where the cup has a flange that functions as an integral part of the bearing assembly. This design allows for precise axial location of the bearing in applications where axial displacement relative to the housing or shaft is critical.
