30219 Tapered Roller Bearing Structure, Performance and Applications

As a crucial component in mechanical transmission systems, tapered roller bearings are widely recognized for their ability to withstand combined radial and axial loads. Among them, the 30219 bearing stands out as a representative product in the 30000-series metric tapered roller bearings, playing an indispensable role in various heavy-duty industrial scenarios. This article explores the structural characteristics, key parameters, performance advantages, application fields, and proper maintenance of the 30219bearing, providing a comprehensive overview for industry professionals and enthusiasts.

1. Core Structural Design and Dimensional Parameters

The 30219 bearing adopts a single-row tapered roller structure, which is a typical design for balancing load-bearing capacity and operational stability. Its core components include an inner ring (cone), outer ring (cup), tapered rollers, and a pressed steel cage. The tapered design of the rollers and raceways ensures that the load is evenly distributed across the contact surfaces, minimizing local stress concentration and extending service life.

Regarding dimensional parameters, the 30219 bearing follows standardized metric specifications, with slight variations among different manufacturers (e.g., SKF, NTN, LHZ) due to design adjustments. The standard bore diameter is 95 mm, outer diameter is 170 mm, and overall width ranges from 32 mm to 34.5 mm. Specifically, the cone width is 32 mm, and the cup width is 27 mm, with a cylindrical bore type and precise tolerance control (bore diameter tolerance: -0.020 mm to 0.000 mm) . The shaft fillet radius is 2.5 mm, and the housing fillet radius is 2 mm, which facilitates smooth installation and avoids interference with adjacent components.

2. Material Selection and Performance Advantages

Material quality is a key factor determining the performance of the 30219bearing. Both the inner/outer rings and rollers are made of 52100 carbon steel, a high-quality alloy steel known for its excellent hardness, wear resistance, and fatigue strength after heat treatment . The pressed steel cage offers reliable guidance for the rollers, ensuring stable rotation even under high loads, while maintaining lightweight and cost-effectiveness.

The 30219 bearing exhibits remarkable load-bearing capacity, with a dynamic radial load capacity of 226 kN and a static radial load capacity of 290 kN . Its tapered structure enables it to withstand not only radial loads but also significant one-way axial loads, making it suitable for equipment subjected to combined loads. Additionally, the optimized contact angle design reduces friction during operation, contributing to low energy consumption and long service life. It operates within a wide temperature range, from -40 °F (-40 °C) to 250 °F (121 °C), adapting to various harsh working environments.

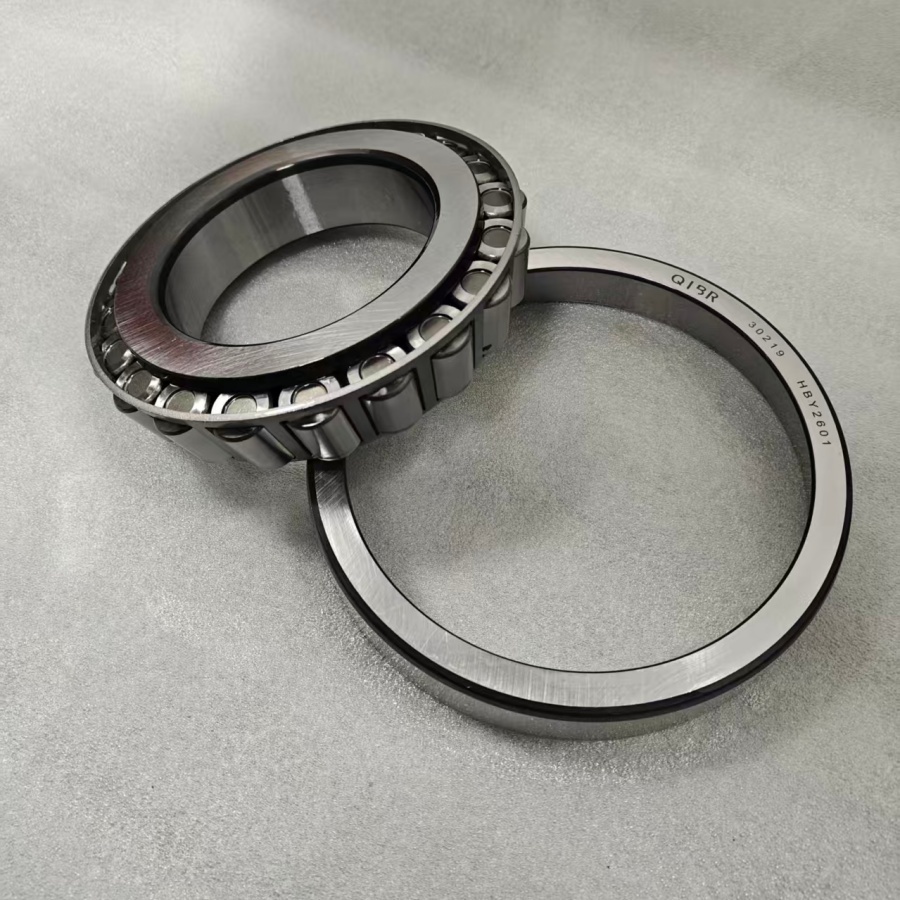

Another notable advantage is its separable design—the inner ring assembly (including rollers and cage) can be detached from the outer ring. This feature simplifies installation, disassembly, and maintenance, reducing downtime for equipment overhaul. Moreover, pairing two 30219 bearings allows for preloading, enhancing rigidity and precision in high-precision applications.

3. Typical Application Fields

Due to its excellent load-bearing capacity and versatility, the 30219bearing is widely used in heavy machinery and industrial equipment across multiple sectors. In the mining and construction industry, it is installed in crushers, excavators, and conveyor systems, where it endures heavy loads and severe vibrations. In forestry machinery, such as harvesters and skidders, it adapts to harsh outdoor conditions, including dust and temperature fluctuations.

The bearing also plays a vital role in industrial processing equipment. It is applied in centrifuges, separators, and distillation devices in the chemical and pharmaceutical industries, ensuring stable operation under corrosive or high-temperature conditions . In the textile industry, it is used in spinning and weaving machines, where its low friction and reliable lubrication performance prevent overheating and extend equipment service life . Additionally, it finds applications in automotive transmissions, agricultural machinery, and air separation equipment, demonstrating its broad adaptability.

4. Installation, Maintenance and Storage Guidelines

Proper installation and maintenance are essential to maximize the performance and service life of the 30219 bearing. During installation, the working area must be clean to avoid contamination by dust or impurities. The shaft and bearing housing should be cleaned to remove burrs and rust, and the bearing dimensions should be checked to ensure compatibility with the design requirements . For interference fits, the inner ring can be heated to 80-120 °C using an oil bath or induction heating method to facilitate assembly, avoiding direct impact which may damage the raceways.

Lubrication is critical for the 30219 bearing, as it is not pre-lubricated. Grease lubrication is recommended for most applications, with a filling amount of 30%-50% of the internal space. It is important to use the same type of grease and avoid mixing different brands. During operation, the bearing temperature should be monitored, with a normal operating temperature not exceeding 70 °C. Abnormal heating may indicate poor lubrication or overloading . Regular vibration and noise detection can help identify potential issues such as raceway damage or impurity intrusion.

For storage and transportation, the 30219 bearing should be kept in a dry environment with a relative humidity below 65%, away from acidic and alkaline substances. The original anti-rust packaging should be retained, and long-term storage requires additional anti-rust oil and sealing. Large bearings like the 30219should be stored vertically to prevent deformation.

5. Conclusion

The 30219 tapered roller bearing integrates robust structural design, high-quality materials, and excellent performance, making it a preferred choice for heavy-duty industrial applications. Its balanced load-bearing capacity, separable structure, and wide temperature adaptability address the core needs of machinery operation in harsh environments. By following standardized installation, maintenance, and storage practices, users can significantly extend the bearing's service life and ensure equipment reliability.

As industrial technology advances, the 30219 bearing continues to evolve with material and manufacturing improvements, further enhancing its performance. Whether in mining, chemical processing, or textile production, it remains a critical component supporting efficient and stable mechanical operation.
