Characteristics and Applications of Precision Cylindrical Roller Bearings

Precision cylindrical roller bearings are characterized by high radial load-carrying capacity, high rigidity, high precision, and excellent high-speed performance. They are widely used in scenarios requiring strict rotational accuracy and stability, such as machine tool spindles, precision transmissions, and aerospace applications. Detailed explanations are provided below from two aspects:

Core Characteristics

1. High Radial Load-Carrying Capacity: The rollers are in line contact with the raceways, resulting in a large contact area (3-5 times that of deep groove ball bearings). The radial rated dynamic load can be increased by more than 40%, enabling them to withstand heavy loads and impact loads, and be suitable for working conditions dominated by radial forces. Some precision cylindrical roller bearing models (such as NN series) can bear a small amount of axial load.

2. High Rigidity and Precision: Manufactured with high tolerance grades (commonly P4, SP, UP grades), featuring minimal radial runout and geometric errors; multi-row designs (such as double-row NN series) can further improve rigidity through preloading, reduce deformation under cutting forces or loads, and ensure micron-level positioning accuracy.

3. High-Speed, Low Friction and Low Heat Generation: Optimized roller geometry and cage structure (such as brass, PEEK materials) reduce friction and centrifugal force deformation; advanced lubrication design forms a stable oil film, and some precision cylindrical roller bearings have a dmN value of up to 2.2 million, suitable for high-speed spindle and other scenarios.

4. Separability and Easy Maintenance: Most inner and outer rings are separable, facilitating installation, disassembly and inspection; some are with tapered bores (such as NN 30 series), which can accurately adjust clearance or preload to meet different working condition requirements.

5. Low Vibration and Noise:  Precision manufacturing and optimized cage design precision cylindrical roller bearings reduce roller slip and dynamic imbalance, ensuring stable operation with low noise and vibration levels, suitable for precision equipment requiring high quietness.

Typical Applications

Selection and Application Recommendations

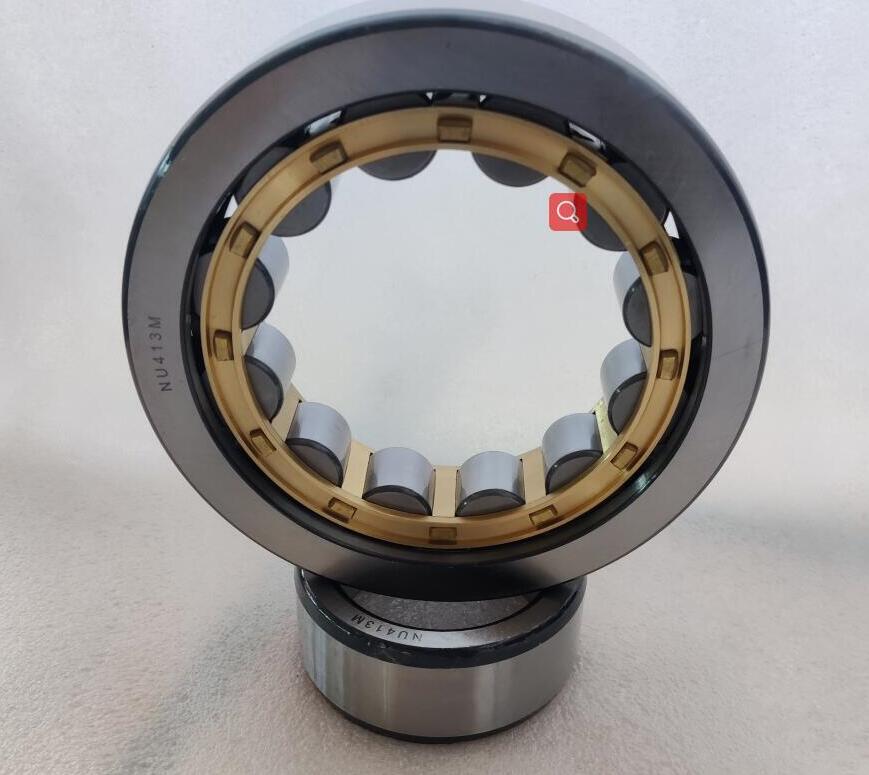

1. Pure radial heavy load + high speed: Select single-row N/NU series precision cylindrical roller bearings, focusing on cage material and lubrication matching.

2. Radial heavy load + high rigidity + positioning: Select double-row NN/NNU series, used with preloading.

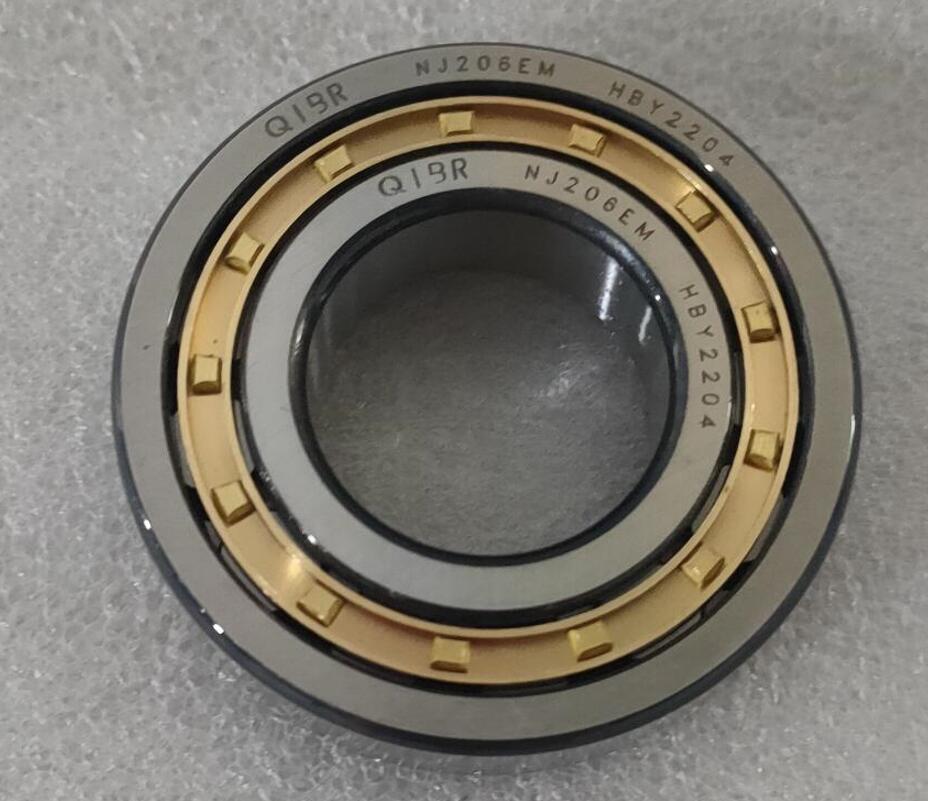

3. Radial-dominated + small amount of axial positioning: Select NJ/NUP series (with ribs + flat washers).

4. High speed and high precision: Prefer ceramic rollers, PEEK cages, and oil mist lubrication configurations.
