Miniature Deep Groove Ball Bearing: The "Precision Joints" of UAVs in the Low-Altitude Economy Era

With the rollout of low-altitude economy policies and rapid advancement of UAV (Unmanned Aerial Vehicle) technology, scenarios like logistics, aerial surveying, and industrial inspection have expanded rapidly—imposing strict demands on the precision and reliability of core components. As "key joints" in UAV transmission systems, miniature deep groove ball bearing directly influence operational stability and mission success, emerging as core drivers for high-quality industry development.​

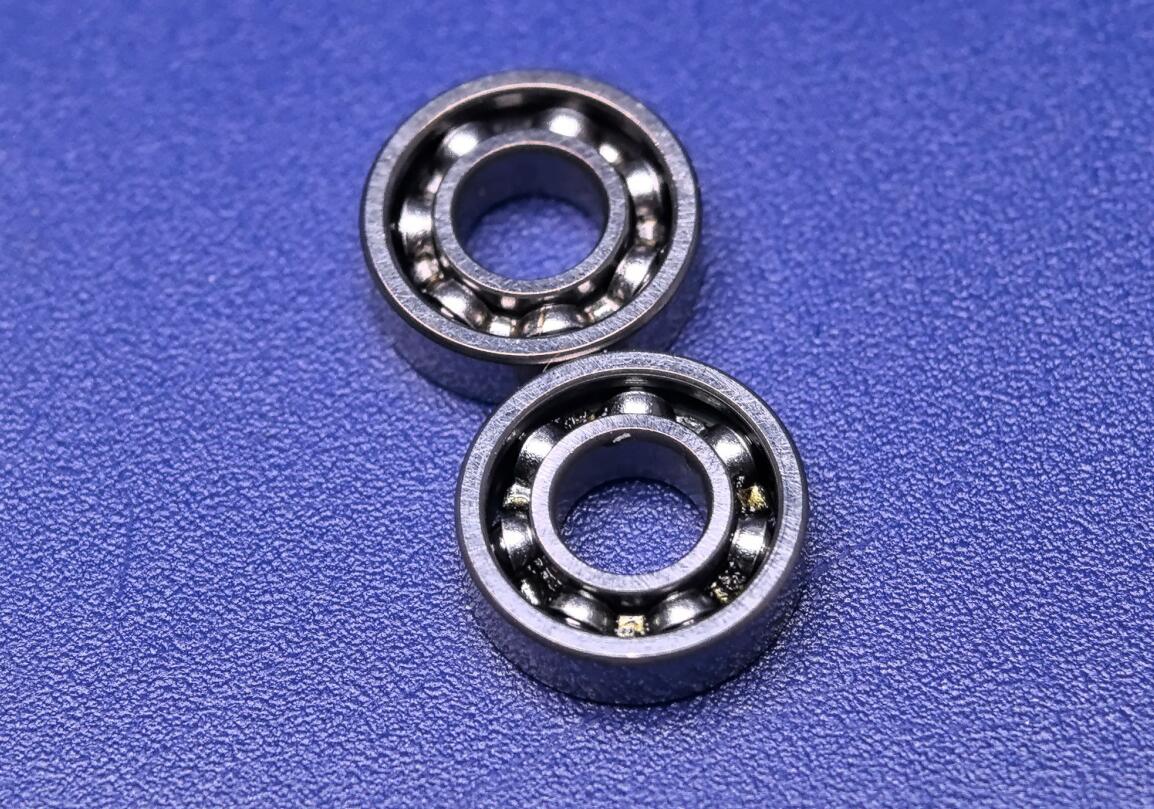

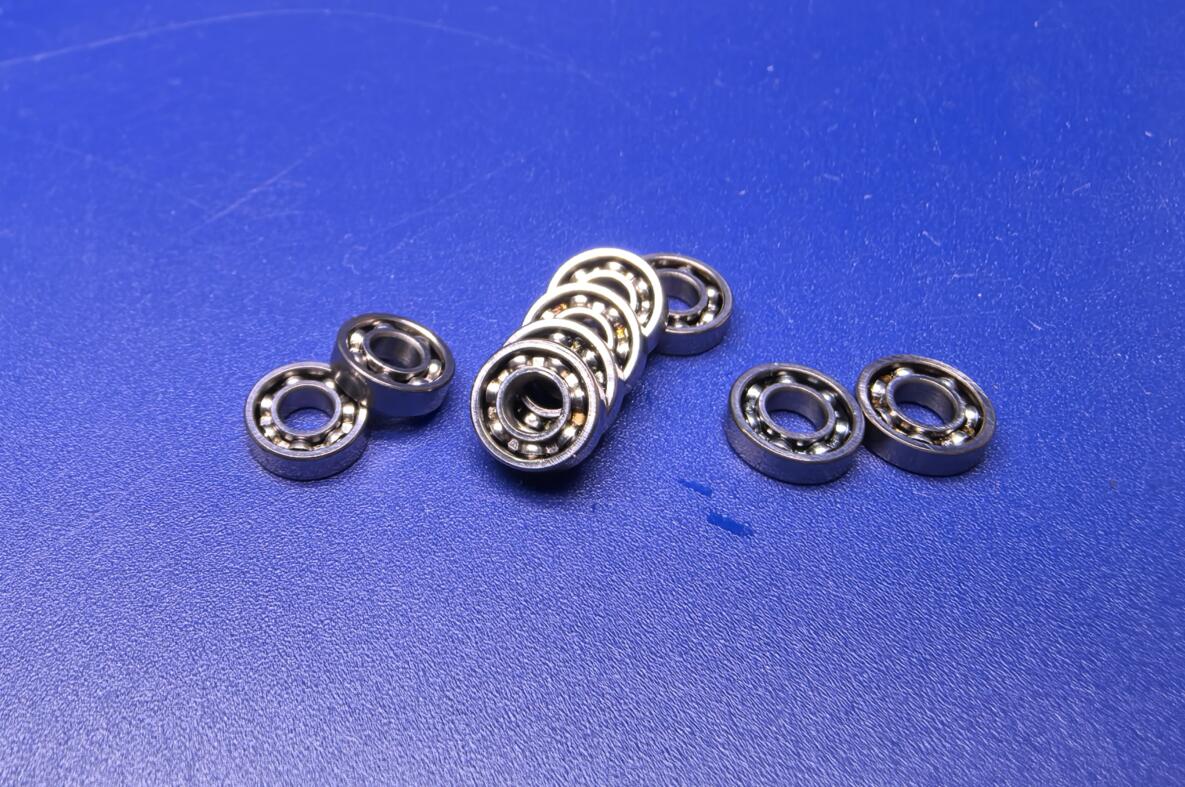

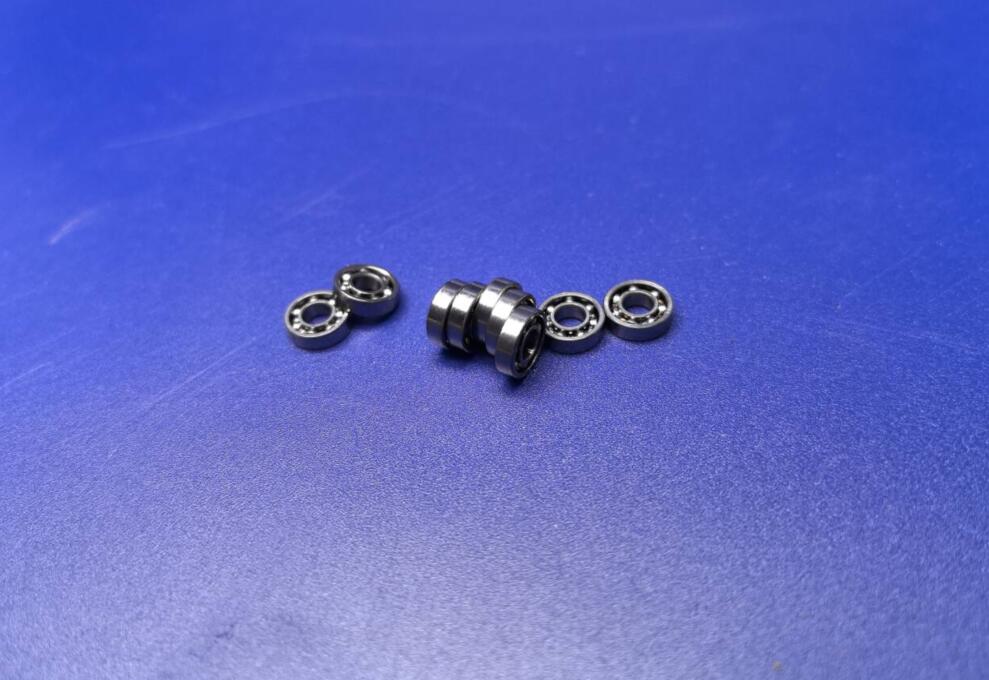

I. Core Technical Characteristics of Miniature Deep Groove Ball Bearings​

Boasting compact structures and balanced performance, these bearings hold an irreplaceable role in precision machinery, with four core traits:​

(1) Extremely Compact Structural Design​

Powered by precision machining, they balance ultra-small size and light weight:​

• Mainstream models (e.g., 624ZZ) feature 4mm inner diameter, 13mm outer diameter, 5mm thickness, and weigh under 3g;​
• Special variants have a 2.5mm diameter while supporting critical transmission;​
• Standardized designs fit space-constrained UAV parts (motors, gimbals), enabling equipment miniaturization.​

(2) Diversified Material and Process Innovation​

Material upgrades unlock performance limits, with multi-material solutions:​

• Basic miniature deep groove ball bearing uses high-carbon chromium steel (GCr15, HRC 58-62) for load-bearing and wear resistance;​
• High-end variants combine silicon nitride ceramic balls and special stainless steel, cutting weight by 30% and boosting speed;​
• Innovative PEEK composite bearings reduce weight by 60% and withstand 260℃;​
• Ultra-precision grinding achieves ABEC-3/P6 tolerance, controlling radial runout to 0.002mm.​

(3) Full-Scenario Adaptive Performance​

These bearings offer multi-dimensional advantages for UAV’s complex conditions:​

• Speed: Conventional miniature deep groove ball bearing reaches 34,000 rpm; high-end ones exceed 120,000 rpm via structural optimization;​
• Sealing: Double-metal dust covers (ZZ) block contaminants; special multi-layer labyrinth seals achieve IP68;​
• Temperature: Conventional bearings work at -20℃ to 120℃; special variants handle -70℃ to 300℃.​

(4) Low-Maintenance, Long-Lasting Operation​

Pre-lubrication and material upgrades lower maintenance costs:​

• Factory-filled high-performance grease meets regular needs; graphene-modified grease enables 2,000 hours of maintenance-free use;​
• Vacuum-coated ceramic bearings last over 8,000 hours—surpassing the 3,000-hour international aviation standard.​

II. Core Advantages for UAV Applications​

In UAV’s complex working conditions, the bearings’ technical traits translate to targeted application advantages:​

(1) Boosting Flight System Reliability and Endurance​

UAV motors (core power components) demand high-speed, lightweight bearings:​

• Gimbal motors with L-520ZZ bearings cut vibration by 42% and extend endurance by 15%;​
• PEEK-ceramic hybrid bearings (via molecular-level interface fusion) keep vibration below 0.02mm/s and reach 120,000 rpm, powering logistics UAVs;​
• Low-temperature resistant bearings maintain over 90% load capacity at -70℃, supporting polar scientific UAVs.​

(2) Ensuring Precise Mission Equipment Operation​

For precision gear (e.g., aerial gimbals), the bearings’ high precision is critical:​

• Topology-optimized harmonic reducer bearings boost axial stiffness by 42%, enabling millisecond response for reconnaissance-strike UAV weapon bays;​
• Bionic joint bearings in gimbal stabilizers reduce response delay from 15ms to under 5ms, supporting 8K aerial photography.​

(3) Adapting to Multi-Scenario Challenges​

The miniature deep groove ball bearing excels in diverse UAV environments:​

• Coastal inspection: Waterproof/dustproof variants pass 2,000-hour salt spray tests and maintain 100% availability in typhoons;​
• Agricultural plant protection: Corrosion-resistant bearings extend pesticide pump life to 3,000 hours, cutting costs by 20%;​
• Logistics: "Sandwich" damping bearings absorb level-6 gust vibrations, keeping positioning accuracy within ±3cm.​

(4) Reducing Whole-Life Cycle Costs​

Standardization and long life lower UAV industry costs:​

• Procurement: Standardized mass production ensures cost-effectiveness for bulk orders;​
• Maintenance: 2,000-hour maintenance-free design reduces downtime and labor costs;​
• Quality: 0.3‰ batch defect rate minimizes end-product repair costs.​

III. Industry Development Outlook​

The low-altitude economy is now in a commercial boom. Innovation and wider application of miniature deep groove ball bearing will keep fueling UAV industry growth.​

From consumer aerial gear to industrial inspection UAVs, and from logistics to special operations, these "precision joints" drive large markets with small components—helping China’s UAV sector gain global competitiveness.​

Future breakthroughs in materials and smart manufacturing will push these bearings to higher speeds, harsher environment resistance, and longer life—expanding UAV application boundaries further.​
