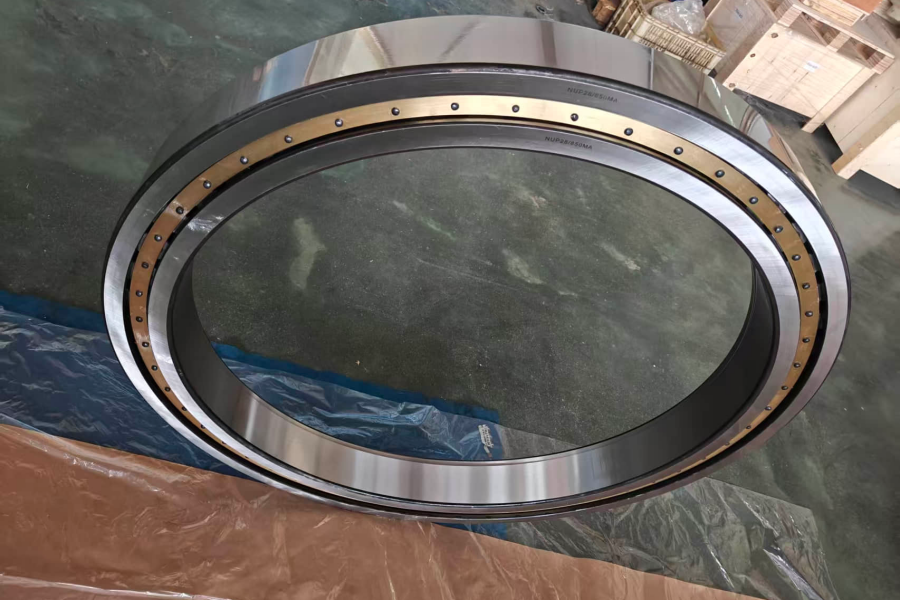

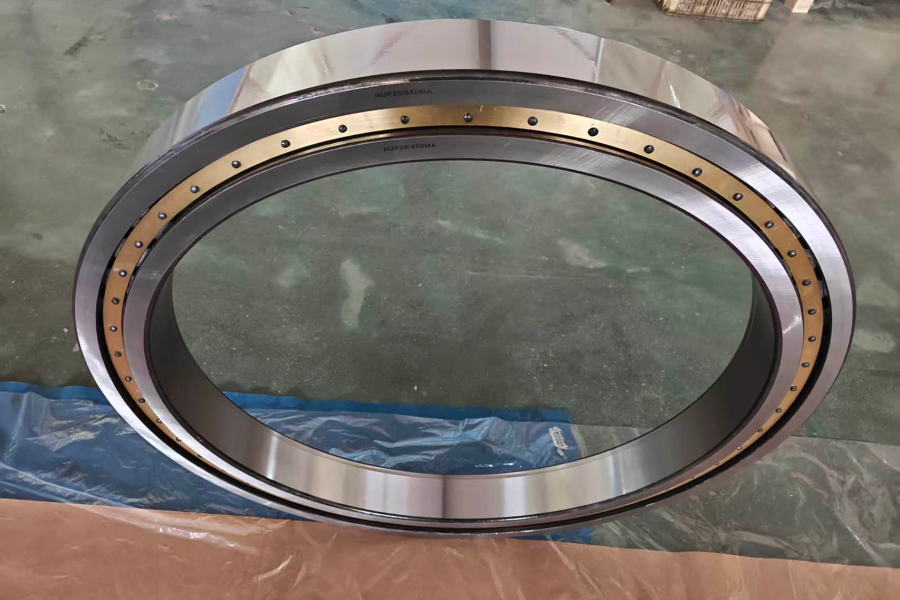

NUP28/850MA A Heavy-Duty Cylindrical Roller Bearing for Industrial Applications

The NUP28/850MA is a robust, single-row cylindrical roller bearing engineered for extreme radial loads and moderate bidirectional axial loads. As a member of the NUP-series bearings, it features a separable design, high load-carrying capacity, and durable construction, making it indispensable in heavy machinery, mining, steelmaking, and power generation equipment. This article explores its design, specifications, material science, performance characteristics, applications, and maintenance best practices, highlighting why it stands out in heavy-duty industrial operations.

1. Design and Structural Features

The NUP28/850MA belongs to the NUP-type cylindrical roller bearings, a category defined by its unique ring and flange configuration. Its core structure consists of four main components: an outer ring, an inner ring, cylindrical rollers, and a brass cage.

Outer Ring: Equipped with two integral flanges on both sides, which guide the cylindrical rollers and prevent them from slipping axially. This dual-flange design ensures stability under heavy radial forces.

Inner Ring: Features one fixed flange on one side and a detachable flat loose flange on the other. This critical design allows the bearing to accommodate bidirectional axial loads, limiting shaft displacement in both directions relative to the housing. Unlike NU-type bearings (which handle only radial loads), the NUP design serves as a fixed-end bearing, ideal for applications requiring axial positioning.

Cylindrical Rollers: The rollers are precision-machined to uniform dimensions, ensuring even load distribution across the rolling elements. Their cylindrical shape minimizes contact stress, reducing friction and wear compared to ball bearings.

Brass Cage (MA Suffix): The "MA" suffix denotes a machined brass cage, roller-guided for high strength and durability. Brass cages excel in high-temperature, high-speed, and heavy-load environments, offering better thermal conductivity and resistance to deformation than steel or polymer cages. The cage maintains roller spacing, prevents contact between adjacent rollers, and ensures smooth rotation.

A key advantage of the NUP28/850MA is its separable design. The inner ring, outer ring, rollers, and cage can be disassembled and reassembled independently, simplifying installation, inspection, and maintenance. This feature is especially valuable in large-scale industrial equipment where bearing replacement must be performed efficiently to minimize downtime.

2. Key Technical Specifications

The NUP28/850MA is a large-sized bearing optimized for heavy-duty applications, with precise dimensions and performance ratings tailored to extreme load conditions.

Dimensions:

Bore diameter (d): 850 mm

Outside diameter (D): 1030 mm

Width (B): 106 mm

Weight: Approximately 190 kg

Load Ratings:

Basic dynamic load rating (C): 2,120,000 N (2120 kN)

Basic static load rating (C₀): 6,000,000 N (6000 kN)

Fatigue load limit (Pᵤ): 405,000 N (405 kN)

Speed Ratings:

Reference speed: 500 r/min

Limiting speed: 670 r/min

These specifications confirm the bearing’s ability to withstand extreme radial loads (up to 2120 kN dynamically) and moderate axial loads, making it suitable for low-to-medium speed applications where load capacity is prioritized over high rotational speeds. The fatigue load limit of 405 kN ensures long-term reliability under cyclic loading conditions, a critical factor in industrial machinery that operates continuously for extended periods.

3. Material Science and Manufacturing Quality

The performance and longevity of the NUP28/850MA depend heavily on the quality of materials and precision manufacturing. Leading manufacturers like SKF, the original producer of this bearing model, use high-grade bearing steel for all load-bearing components.

Ring and Roller Material: The inner and outer rings, as well as the cylindrical rollers, are made from high-carbon chromium bearing steel (e.g., SKF’s Explorer-grade steel). This material offers exceptional hardness (HRC 60–64), high wear resistance, and excellent fatigue strength. Through precision heat treatment—including quenching and tempering—the steel achieves a uniform, fine-grained structure that resists cracking and deformation under heavy loads.

Cage Material: The machined brass cage (MA) is crafted from high-strength brass alloy, which provides superior ductility, thermal conductivity, and corrosion resistance. Unlike pressed steel cages, machined brass cages can withstand higher mechanical stress and temperatures, making them ideal for heavy-load, high-temperature environments.

Precision Manufacturing: All components are machined to ISO tolerance standards (Class 0 or higher), ensuring tight dimensional accuracy and smooth surface finishes. The rolling surfaces of the rings and rollers are ground and polished to minimize friction and reduce the risk of premature wear. This precision manufacturing ensures consistent performance and interchangeability of components.

4. Performance Advantages

The NUP28/850MA offers several key performance advantages that make it a top choice for heavy-duty industrial applications:

Exceptional Load Capacity: Its large size and robust design enable it to handle extreme radial loads and moderate bidirectional axial loads, outperforming standard ball bearings and smaller cylindrical roller bearings in heavy machinery.

Low Friction and High Efficiency: The cylindrical roller design and precision-machined rolling surfaces minimize contact stress and friction, reducing energy consumption and heat generation during operation.

Durability and Long Service Life: High-grade bearing steel, heat treatment, and a brass cage ensure resistance to wear, fatigue, and deformation, even in harsh operating conditions (e.g., dust, moisture, high temperatures).

Easy Installation and Maintenance: The separable design allows for quick disassembly and reassembly, simplifying inspection, cleaning, and replacement. This reduces maintenance time and downtime, a critical benefit for industrial operations.

Axial Positioning Capability: The NUP design’s ability to handle bidirectional axial loads makes it ideal for use as a fixed-end bearing, ensuring precise shaft positioning in applications with thermal expansion or contraction.

5. Industrial Applications

The NUP28/850MA’s combination of high load capacity, durability, and axial positioning capability makes it suitable for a wide range of heavy-duty industrial applications, primarily in sectors where large machinery operates under extreme load conditions.

Mining and Mineral Processing: Used in ball mills, crushers, rotary kilns, and conveyor drive systems that process ores, coal, and minerals. These applications require bearings that can withstand heavy radial loads, dust, and continuous operation.

Steel and Metalworking: Installed in rolling mills, continuous casting machines, and heavy gearboxes used in steel production. The bearing’s ability to handle high temperatures and heavy loads is critical in these harsh environments.

Power Generation: Applied in coal-fired power plant pulverizers, gearboxes, and turbine auxiliary equipment that operate under heavy radial loads and moderate speeds.

Cement Industry: Used in cement mills, vertical roller mills, and rotary kilns for cement production. These machines require bearings that can withstand heavy loads, dust, and high temperatures.

Heavy Machinery and Construction: Installed in large cranes, excavators, and marine equipment that handle heavy loads and require reliable axial positioning.

6. Maintenance and Lubrication Best Practices

To maximize the service life and performance of the NUP28/850MA, proper maintenance and lubrication are essential.

Lubrication: The bearing requires high-quality industrial grease or oil suitable for heavy-load, low-to-medium speed applications. Grease lubrication is typically used for general-purpose operation, while oil lubrication (e.g., circulating oil) is preferred for high-temperature or continuous-duty applications. Regular lubrication replenishes the lubricant film, reduces friction and wear, and prevents corrosion.

Inspection: Periodic visual inspection and vibration monitoring are recommended to detect early signs of wear, damage, or misalignment. The separable design allows for easy disassembly and inspection of components (e.g., rollers, cage, rings).

Installation: Proper installation is critical to avoid premature failure. The bearing should be mounted on a clean, precision-machined shaft and housing, with proper interference fit to prevent slipping. The separable design simplifies installation by allowing the inner and outer rings to be mounted separately.

Environmental Protection: In harsh environments (e.g., dust, moisture, corrosive substances), the bearing should be protected with seals or shields to prevent contamination. Contamination is a leading cause of premature bearing failure, so regular cleaning and protection are essential.

Conclusion

The NUP28/850MA is a high-performance, heavy-duty cylindrical roller bearing designed for extreme load conditions in industrial applications. Its unique NUP-type design, large dimensions, high-grade materials, and precision manufacturing deliver exceptional load capacity, durability, and reliability. From mining and steelmaking to power generation and cement production, this bearing plays a critical role in ensuring the smooth and efficient operation of heavy machinery. By following proper maintenance and lubrication practices, the NUP28/850MA can provide long service life and consistent performance, making it an indispensable component in modern industrial operations.
