Rubber Coated Bearing 606ZZ: A Versatile Solution for Miniature Machinery Applications

In the realm of miniature bearings, the rubber coated bearing 606ZZ stands out as a specialized component that combines the precision of standard ball bearings with the unique advantages of rubber coating technology. Designed to meet the demands of small-scale machinery, this bearing has become an indispensable part in various industries, from electronics and robotics to medical devices and household appliances. This article explores the structure, specifications, advantages, applications, and maintenance of the rubber coated bearing 606ZZ, providing a comprehensive overview for engineers, purchasers, and industry professionals.

To understand the rubber coated bearing 606ZZ, it is essential to first break down its core components and design. The 606ZZ is a miniature deep groove ball bearing, which is characterized by its compact size and ability to handle both radial and axial loads efficiently. The “606” in its designation follows the standard bearing numbering system: the first digit “6” indicates it is a deep groove ball bearing, the middle digit “0” denotes the series (extra-small), and the last digit “6” specifies the bore diameter of 6 mm. The “ZZ” suffix signifies that the bearing is equipped with double metal shields on both sides, which provide protection against dust, debris, and lubricant leakage while maintaining low friction during operation.

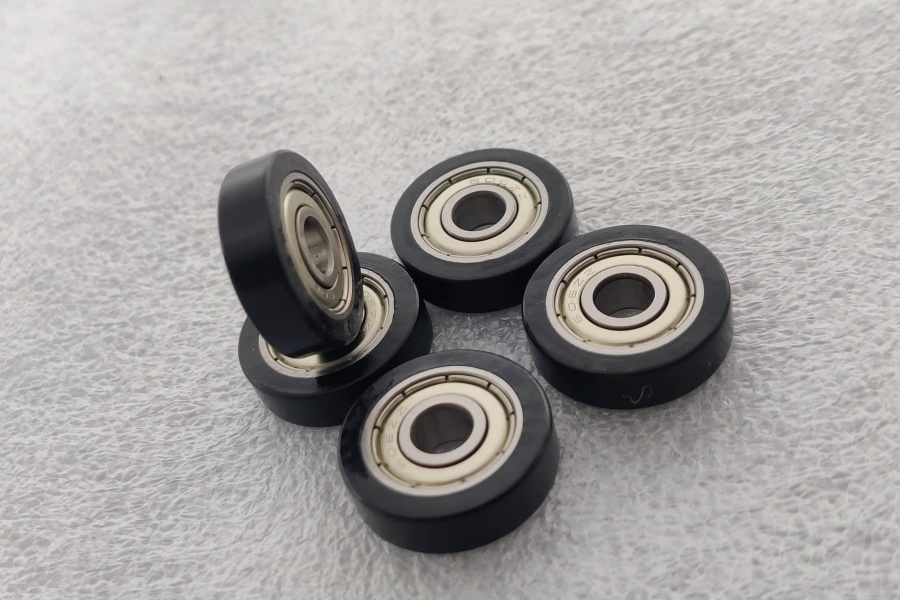

The key distinguishing feature of the rubber coated bearing 606ZZ is the rubber layer applied to its outer ring. Unlike standard 606ZZ bearings, which have a bare metal outer surface, the rubber coated variant undergoes a specialized coating process to bond a layer of high-quality rubber to the outer diameter. The rubber material is carefully selected based on application requirements, with common options including polyurethane (PU), natural rubber, and nitrile rubber (NBR). Each material offers unique properties: PU provides excellent wear resistance and elasticity, natural rubber delivers superior shock absorption, and NBR offers good oil and chemical resistance. The coating thickness typically ranges from 0.5 mm to 2 mm, depending on the intended use, and is applied using techniques such as injection molding or bonding to ensure strong adhesion between the rubber and the metal outer ring, preventing peeling or detachment during operation.

The technical specifications of the rubber coated bearing 606ZZ are critical to its performance and compatibility with different applications. The standard dimensions of the 606ZZ bearing (without coating) include a bore diameter of 6 mm, an outer diameter of 17 mm, and a width of 6 mm, with a minimum chamfer radius of 0.3 mm. The rubber coating adds a small increment to the outer diameter, which must be considered during design and installation to ensure proper fit. In terms of load capacity, the basic dynamic load rating of the standard 606ZZ is approximately 2490 N, and the basic static load rating is 835 N, with a limiting speed of 38,000 rpm under grease lubrication. The rubber coating slightly reduces the load capacity and limiting speed compared to the uncoated version, but this trade-off is justified by the additional benefits it provides, such as noise reduction and vibration damping.

One of the primary advantages of the rubber coated bearing 606ZZ is its exceptional noise and vibration reduction capabilities. The rubber layer acts as a buffer, absorbing vibrations generated during operation and minimizing the transmission of noise to the surrounding components. This makes it ideal for applications where quiet operation is critical, such as small electric motors, precision instruments, and household appliances like fans and pumps. In contrast, standard metal bearings often produce noticeable noise due to metal-to-metal contact, which can be disruptive in sensitive environments.

Another significant benefit is the protection it offers to both the bearing itself and the mating components. The rubber coating creates a non-metallic contact surface, preventing direct metal-to-metal friction between the bearing and the housing. This not only reduces wear on both the bearing and the housing but also eliminates the risk of scratches or damage to delicate surfaces, such as those found in medical devices or electronic equipment. Additionally, the rubber layer provides a degree of corrosion resistance, protecting the metal core of the bearing from moisture, dust, and mild chemicals, thereby extending its service life in harsh or humid environments.

The rubber coated bearing 606ZZ also exhibits excellent shock absorption properties. The elastic nature of the rubber allows it to absorb sudden impacts and vibrations, reducing stress on the bearing and other mechanical components. This is particularly beneficial in applications with frequent start-stop cycles or variable loads, such as robotics, small conveyors, and model machinery. The shock absorption capability also helps to improve the overall stability and reliability of the equipment, reducing the risk of component failure and downtime.

Due to its compact size and versatile performance, the rubber coated bearing 606ZZ finds applications across a wide range of industries. In the electronics industry, it is used in small motors, hard drives, and cooling fans, where quiet operation and compact design are essential. In robotics and automation, it is employed in miniature actuators, gears, and rotating joints, providing smooth and quiet movement. The medical device industry relies on this bearing for precision equipment such as diagnostic tools, pumps, and small surgical instruments, where cleanliness, quiet operation, and protection of delicate components are paramount.

Household appliances are another major application area for the rubber coated bearing 606ZZ. It is commonly found in small kitchen appliances (e.g., blenders, coffee grinders), personal care devices (e.g., electric shavers, hair dryers), and HVAC systems (e.g., small fans and blowers). In these applications, the bearing’s noise reduction and shock absorption properties enhance user experience, while its corrosion resistance ensures durability in humid environments. Additionally, it is used in hobby projects, such as model airplanes, cars, and drones, where compact size and smooth operation are critical for performance.

Proper maintenance is essential to maximize the service life of the rubber coated bearing 606ZZ. Unlike standard bearings, which require regular lubrication, the rubber coating can be affected by certain lubricants, so it is important to use compatible lubricants (e.g., silicone-based lubricants) that do not degrade the rubber material. It is also important to avoid overloading the bearing, as excessive loads can cause the rubber coating to deform or peel. Regular inspection for signs of wear, such as cracks in the rubber coating, abnormal noise, or increased friction, is recommended to identify potential issues early and prevent equipment failure. In harsh environments, periodic cleaning to remove dust and debris will help to maintain the bearing’s performance and extend its service life.

When selecting a rubber coated bearing 606ZZ, several factors should be considered to ensure compatibility with the application. The type of rubber material is a key consideration: PU is suitable for general-purpose applications requiring wear resistance, natural rubber is ideal for shock absorption, and NBR is preferred for applications exposed to oil or chemicals. The thickness of the rubber coating should be chosen based on the required fit and the level of noise/vibration reduction needed. Additionally, the operating conditions, such as temperature, load, and speed, should be matched to the bearing’s specifications to ensure optimal performance. It is also important to choose a reputable manufacturer that adheres to strict quality control standards, as the quality of the rubber coating and the bearing core directly impacts performance and durability.

In conclusion, the rubber coated bearing 606ZZ is a specialized miniature bearing that combines the precision and load-bearing capacity of the standard 606ZZ with the unique benefits of rubber coating technology. Its noise reduction, vibration damping, shock absorption, and protective properties make it an ideal solution for a wide range of applications, from electronics and robotics to medical devices and household appliances. By understanding its structure, specifications, advantages, and maintenance requirements, engineers and purchasers can select the right rubber coated bearing 606ZZ for their specific needs, ensuring reliable and efficient operation of their equipment. As technology continues to advance, the demand for compact, quiet, and durable bearings like the rubber coated 606ZZ is expected to grow, further solidifying its position as a key component in miniature machinery.
