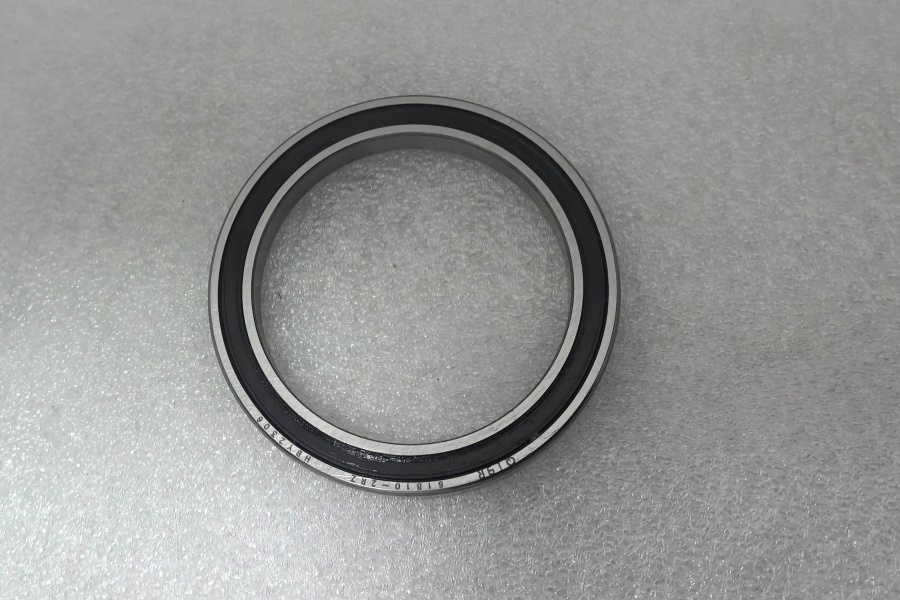

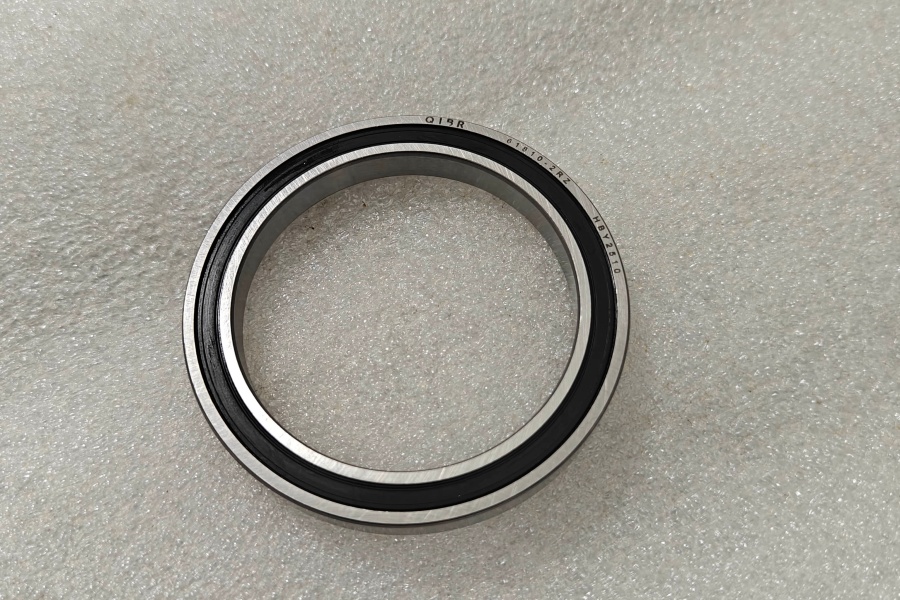

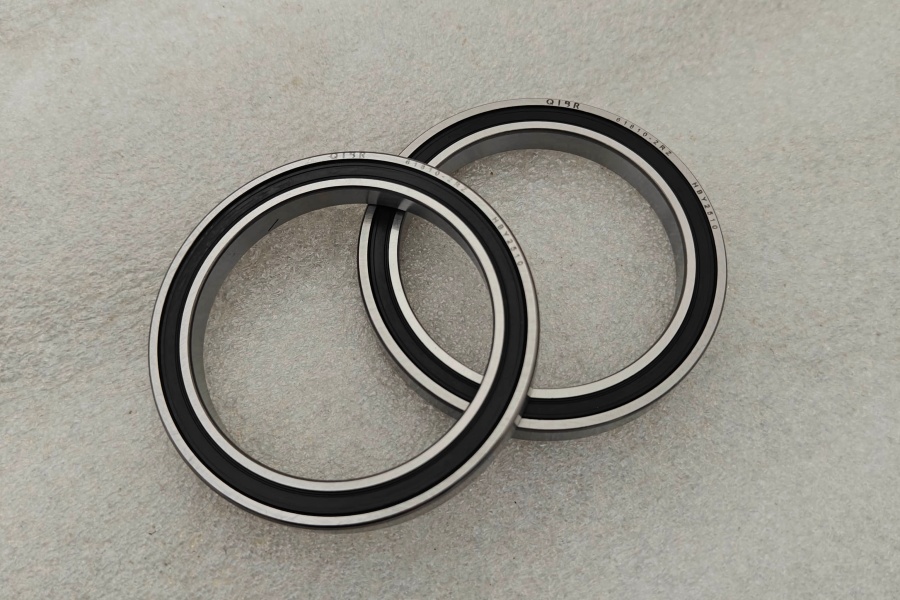

The 61810-2RZ Bearing: A Versatile and Reliable Deep Groove Ball Bearing for Industrial Applications

In the realm of industrial machinery and mechanical systems, bearings play an indispensable role as critical components that reduce friction, support loads, and ensure smooth rotational motion. Among the wide variety of bearings available, the 61810-2RZ stands out as a highly versatile and widely used single-row deep groove ball bearing, trusted by engineers and manufacturers across numerous industries. This article delves into the key features, technical specifications, applications, installation guidelines, and maintenance practices of the 61810-2RZ bearing, highlighting why it has become a preferred choice for both industrial and commercial applications.

First and foremost, understanding the model designation of the 61810-2RZ is essential to grasping its core characteristics. The alphanumeric code is not arbitrary but follows a standardized naming convention that conveys critical information about the bearing’s design and features. The first digit “6” indicates that it belongs to the deep groove ball bearing family, the most widely used type of bearing due to its simplicity, versatility, and ability to handle both radial and axial loads in both directions. The next two digits “18” denote the bearing series, specifically the 61800 series, which is classified as a thin-section deep groove ball bearing—characterized by its compact design with a small cross-sectional height relative to its diameter. The following two digits “10” represent the bore diameter; in metric units, this translates to a 50 mm bore (calculated as 10 × 5 mm). Finally, the suffix “2RZ” indicates that the bearing is equipped with two non-contact rubber seals (RZ) on both sides, which serve to protect the internal components from contaminants such as dust, dirt, and moisture while retaining the lubricating grease inside.

The structural design of the 61810-2RZ is a testament to its efficiency and reliability. As a single-row deep groove ball bearing, it consists of four main components: an inner ring, an outer ring, a set of steel balls (rolling elements), and a steel cage that maintains the spacing and alignment of the balls. The inner and outer rings feature precision-ground deep grooves that conform to the shape of the steel balls, allowing for smooth rolling and efficient load distribution. The non-contact rubber seals (2RZ) are mounted on both sides of the bearing; unlike contact seals, these seals do not touch the inner ring, which minimizes friction and enables higher rotational speeds while still providing effective protection against contaminants. This design balance between protection and low friction makes the 61810-2RZ ideal for applications requiring both reliability and efficiency.

The technical specifications of the 61810-2RZ further underscore its performance capabilities. According to industry standards and manufacturer data, the bearing has a bore diameter (d) of 50 mm, an outer diameter (D) of 65 mm, and a width (B) of 7 mm—dimensions that make it compact and suitable for use in space-constrained applications. It features a normal radial clearance (C0), which is the internal clearance between the rolling elements and the rings when the bearing is not mounted or loaded, ensuring smooth operation and accommodating thermal expansion during use. The dynamic load rating (Cr) of the 61810-2RZ is typically around 6200 N, while the static load rating (C0r) is approximately 5800 N; these ratings indicate the maximum radial loads the bearing can withstand during continuous operation and static conditions, respectively. Additionally, the bearing has a grease reference speed of 9500 rpm and an oil reference speed of 11000 rpm, making it suitable for high-speed applications such as electric motors and power tools. The precision class of the 61810-2RZ is usually ABEC 1 (ISO P0), which is sufficient for most general industrial applications, providing a balance between precision and cost-effectiveness.

One of the key advantages of the 61810-2RZ bearing is its wide range of applications, spanning multiple industries and use cases. Its compact design, combined with its ability to handle both radial and axial loads, makes it suitable for use in various mechanical systems. In the automotive industry, it is commonly used in gearboxes, clutch systems, and wheel hubs, where it must withstand high speeds and varying loads while maintaining reliability. In industrial machinery, the 61810-2RZ is found in conveyors, pumps, compressors, and textile machinery, where it ensures smooth operation and long service life. It is also widely used in electric motors—both industrial and small household motors—as well as power tools, where its high-speed capabilities and low friction contribute to energy efficiency and performance. Additionally, the bearing is used in household appliances such as washing machines and dryers, where its sealed design protects against dust and moisture, ensuring reliable operation in domestic environments.

Proper installation is crucial to maximizing the performance and service life of the 61810-2RZ bearing. Before installation, it is essential to ensure that the mounting surface (shaft and housing) is clean, free of burrs, and has the correct dimensional accuracy; any contaminants or irregularities can cause misalignment, increased friction, and premature wear. The bearing should be mounted using appropriate tools, such as a press or a copper sleeve, to apply force evenly to the inner or outer ring—never to the rolling elements or cage, as this can damage the bearing components. For applications with an interference fit (where the bearing is pressed onto the shaft or into the housing), a temperature-controlled method (such as oil bath heating at 80-100°C) can be used to expand the inner ring, making installation easier while avoiding damage. It is also important to ensure that the shaft shoulder height does not exceed ¾ of the inner ring height to prevent misalignment and ensure proper load distribution. After installation, the bearing should be checked for smooth rotation and proper alignment to avoid excessive vibration or noise.

Regular maintenance is another critical factor in extending the service life of the 61810-2RZ bearing. The non-contact rubber seals (2RZ) help retain lubricating grease, but over time, the grease can degrade due to heat, contamination, or normal wear. It is recommended to inspect the bearing periodically for signs of wear, such as unusual noise, vibration, or overheating, which may indicate insufficient lubrication or contamination. If the bearing is used in a harsh environment with high levels of dust or moisture, more frequent inspections and grease replacement may be necessary. When replacing grease, it is important to use a high-quality lubricant compatible with the bearing’s operating conditions (temperature, speed, load) to ensure optimal performance. Additionally, the seals should be checked regularly for damage or wear, as a damaged seal can allow contaminants to enter the bearing, leading to premature failure.

The 61810-2RZ bearing is also known for its durability and cost-effectiveness. Manufactured from high-quality steel, it offers excellent resistance to wear and fatigue, ensuring a long service life even in demanding applications. The steel cage provides stable support for the rolling elements, reducing friction and ensuring uniform load distribution, while the non-contact seals minimize maintenance requirements by protecting the internal components from contaminants. Compared to other types of bearings, the 61810-2RZ is relatively affordable, making it a cost-effective choice for both small-scale and large-scale applications. Its widespread availability from major manufacturers such as SKF, FAG, and Timken also ensures easy replacement and accessibility, reducing downtime in industrial operations.

In conclusion, the 61810-2RZ is a versatile, reliable, and cost-effective single-row deep groove ball bearing that has become a staple in numerous industries. Its compact design, ability to handle both radial and axial loads, high-speed capabilities, and sealed protection make it suitable for a wide range of applications, from automotive and industrial machinery to household appliances and power tools. By understanding its model designation, technical specifications, and proper installation and maintenance practices, engineers and manufacturers can maximize the performance and service life of the 61810-2RZ bearing, ensuring smooth and efficient operation of their mechanical systems. Whether used in high-speed electric motors or heavy-duty industrial machinery, the 61810-2RZ continues to prove its value as a trusted and indispensable component in modern mechanical design.
