50BER10H

Outer diameter (D)
80 mm
Inner diameter (d)
50 mm
Width (B)
16 mm

We will provide you with the most suitable solution.

50BER10H

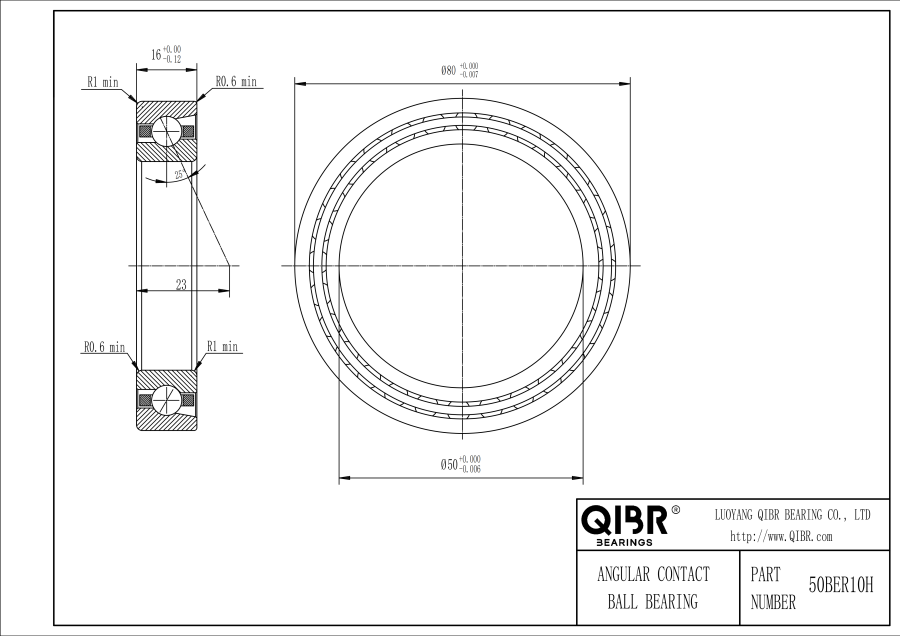

Image may differ from product. See technical specification for details.

Outer diameter (D) : 80 mm
Inner diameter (d) : 50 mm
Width (B) : 16 mm
Chamfer dimension (r) : 1 mm
Chamfer dimension (r1) : 0.6 mm
Basic dynamic load rating : 11.60 KN
Basic static load rating : 9.50 KN
Permissible axial load (1) : 11.10 KN
Pt. load application (a) : 23.0 mm
Limiting speed (Grease) : 24700 rpm
Limiting speed (Oil) : 38500 rpm
Mass : 0.266 kg
Outer diameter (D), Inner diameter (d), Width (B), Chamfer dimension (r), Chamfer dimension (r1), Basic dynamic load rating , Basic static load rating, Permissible axial load (1), Pt. load application (a), Limiting speed (Grease), Limiting speed (Oil), Mass,

QIBR - 50BER10H Angular Contact Ball Bearing Advantages and Applications

50BER10H Angular Contact Ball Bearing, high precision, high speed,Inner diameter (d) is 50 mm,Outer diameter (D) is 80 mm,Width (B) is 16 mm,Mass is 0.266 kg, suitable for aircraft engines, automobile wheels, feed systems of CNC machine tools and flight control systems, etc., and is the most widely used bearing in working conditions with high precision requirements.

Outer diameter (D), Inner diameter (d), Width (B), Chamfer dimension (r), Chamfer dimension (r1), Basic dynamic load rating , Basic static load rating, Permissible axial load (1), Pt. load application (a), Limiting speed (Grease), Limiting speed (Oil), Mass,

QIBR - 50BER10H Angular Contact Ball Bearing Characteristics

50BER10H Angular Contact Ball Bearing, high precision, high speed,Inner diameter (d) is 50 mm,Outer diameter (D) is 80 mm,Width (B) is 16 mm,Mass is 0.266 kg, suitable for aircraft engines, automobile wheels, feed systems of CNC machine tools and flight control systems, etc., and is the most widely used bearing in working conditions with high precision requirements.

50BER10H Angular Contact Ball Bearing Product Features and Advantages

High load capacity: It can withstand large radial and axial forces, and adopts high-strength steel and precision processing technology, with strong load-bearing capacity.

Good structural rigidity: The contact angle of the inner and outer rings is large, the structural rigidity is good, and stable operation is maintained under high load.

High positioning accuracy: The inner and outer rings have high matching accuracy, which can provide accurate positioning and centering functions.

High-speed operation performance: It has a low friction coefficient and high speed capability, suitable for high-speed operation applications.

Application: It has a wide range of applications in machine tool manufacturing, automotive industry, aerospace, motors and generators, robotics, medical equipment, automation equipment and other fields.

QIBR - 50BER10H Angular Contact Ball Bearing Optimization

Optional Contact Angles: Depending on the operating conditions, different contact angles can be selected, such as 15°, 18°, 25°, or 40°.

High-Performance Materials: The bearing materials can be replaced according to different operating conditions, with options like SKF III, ZGcr15, high-purity bearing steel, ceramics, stainless steel, and other materials.

Grease Replacement: Select the lubrication based on the bearing's working requirements, such as LUBCON L252, Multemp SRL, or KLUBER ISOFLEX NBU 15.

Process parameter optimization: Optimize the processing parameters, such as grinding speed, feed speed, cutting depth, etc. to improve processing efficiency and quality.

More customization: QIBR can design and optimize the bearing according to customer requirements for drawings and bearing working conditions.

QIBR - 50BER10H Angular contact ball bearing quality control

Dimension measurement: Use a variety of professional high-precision instruments to measure multiple dimensions of the bearing, with a maximum accuracy of 0.001mm.

Rotation accuracy: Use a micrometer to measure small flaws or deviations on the bearing surface, with a measurement accuracy of up to 0.001mm.

Hardness measurement: Use a hardness tester to measure the surface hardness of the bearing, with a measurement accuracy of up to ±0.5HRC.

Metallographic analysis: Use a professional metallographic microscope to analyze the internal metallographic structure of the metal.

Geometric tolerance: Use a profiler to measure the bearing geometry and relative position.

Noise monitoring: Vibration during operation is monitored by a vibration meter to obtain noise data.

Raw material control: Steel and parts are purchased from suppliers certified by ISO 14001 to ensure product stability and promote sustainable development.

QIBR - 50BER10H Angular Contact Ball Bearings Process and Performance Indicators:

  1. Structural Features: The rings are made of high-purity bearing steel through electro-slag remelting, combined with bainite quenching heat treatment, cryogenic treatment, and material modification technology to reduce residual austenite, significantly improving the fatigue life of this series of bearings.

  2. Contact Angle Control: The grinding wheel angle is calibrated using a laser alignment tool, with a tolerance of ≤±1′.

  3. Surface Quality: After superfinishing, the surface roughness is Ra ≤ 0.005 μm, meeting (ABEC 7) P2 grade precision requirements.

  4. High-Speed Performance: DLC-coated bearings support a dn value ≥ 3.5×10⁶, with a maximum speed of 25,000 rpm (grease lubrication).

  5. Cleanliness: Assembly is conducted in an ISO Class 5 cleanroom using fully synthetic aviation grease.

  6. Finished Product Sampling Inspection:

    • Zeiss PRISMO Ultra (Germany) for full-size 3D coordinate measurement, supporting spatial accuracy of 0.5+L/350 μm.
    • Contact angle (α) verification with ±0.5′ precision.
    • Bearing vibration tester ensures low noise and high-speed performance (Z4/V4 grade standards).
  7. Auxiliary Systems and Process Equipment: Vacuum carburizing with carburizing layer uniformity ≤ ±0.03 mm, enhancing bearing fatigue life.

QIBR - 50BER10H Angular Contact Ball Bearings can be applied in the following R&D projects:

  1. Ultra-high-speed ball bearings (inner diameter >6 mm, outer diameter <360 mm, speed factor <4 million).
  2. High-temperature high-speed bearings (inner diameter >6 mm, outer diameter <200 mm, operating temperature <470°C, speed factor <4 million).
  3. Thin-walled ball bearings (width >3.969 mm, outer diameter <300 mm).
  4. Special high-temperature, low-temperature, and impact-resistant angular contact ball bearings for aviation engine spindle systems.
  5. Ultra-clean bearings for dust-free workshop environments.
  6. High-rigidity, low-noise bearings to improve joint motion accuracy.
  7. Special bearings with functional coatings.
  8. Special bearings for difficult-to-machine materials.

As a rolling bearing manufacturer, we specialize in producing ABEC 7 P4 and ABEC 9 P2 precision bearings designed for high-speed and heavy-load applications. We are happy to provide the best solutions using our expertise.

What do the prefix letters of angular contact ball bearings mean?

The prefix letters for angular contact ball bearings vary by brand. For example:

  • Sweden SKF 50BER10H:

    • C = hybrid ceramic ball bearings,
    • S = sealed bearings,
    • SC = sealed with slopes on both inner and outer rings.
  • Germany FAG 50BER10H:

    • B = standard,
    • HCB = standard ceramic balls,
    • XCB = ultra-long-life standard ceramic balls,
    • RS = high-speed bearing steel balls,
    • HCRS = high-speed bearing ceramic balls,
    • HS = small ball bearing steel balls,
    • HSS = small ball bearing steel balls with seals,
    • HC = small ball bearing ceramic balls,
    • HCS = small ball bearing ceramic balls with seals,
    • XC = ultra-long-life small ceramic balls,
    • XCS = ultra-long-life small ceramic balls with seals.

What do the suffix letters for contact angle mean in angular contact ball bearings?

The suffix letters for contact angle vary by brand. For example:

  • Sweden SKF 50BER10H:
    • CD = standard 15° contact angle,
    • ACD = standard 25° contact angle,
    • CE = high-speed 15° contact angle,
    • FE = high-speed 18° contact angle,
    • ACE = high-speed 25° contact angle,
    • CB = B-structure 15° contact angle,
    • FB = B-structure 18° contact angle,
    • ACB = B-structure 25° contact angle.
  • Germany FAG 50BER10H:
    • C = 15° contact angle,
    • D = 20° contact angle,
    • E = 25° contact angle.
  • Japan NSK 50BER10H:
    • C = 15° contact angle,
    • A5 = 25° contact angle,
    • A = 30° contact angle.

What do the suffix letters for preload mean in angular contact ball bearings?

The suffix letters for preload vary by brand. For example:

  • Sweden SKF 50BER10H:
    • GA = universal single light preload,
    • GB = universal single medium preload,
    • GC = universal single heavy preload,
    • GD = universal single extra-heavy preload.
  • Germany FAG 50BER10H:
    • L = light preload,
    • M = medium preload,
    • H = heavy preload.
  • Japan NSK 50BER10H:
    • L = light preload,
    • M = medium preload,
    • H = heavy preload.

What do the suffix letters for cage type mean in angular contact ball bearings?

The suffix letters for cage type vary by brand. For example:

  • Sweden SKF 50BER10H:
    • Default = phenolic resin,
    • MA = brass,
    • TNHA = PEEK.
  • Japan NSK 50BER10H:
    • TYN = nylon,
    • TR = phenolic resin.

What do the suffix letters for rolling elements mean in angular contact ball bearings?

The suffix letters for rolling elements vary by brand. For example:

  • Sweden SKF 50BER10H:
    • HC = ceramic balls,
    • Default = steel balls.
  • Japan NSK 50BER10H:
    • SN24 = ceramic balls.

What do the suffix letters for precision grade mean in angular contact ball bearings?

The suffix letters for precision grade vary by brand. For example:

  • Sweden SKF 50BER10H: P4, P4A, P2, PA9A.
  • Germany FAG 50BER10H: P5, P5S, P4, P4S, P2.
  • Japan NSK 50BER10H: P2, P4, P5.

What do the suffix letters for bearing set quantity mean in angular contact ball bearings?

The suffix letters for bearing set quantity vary by brand. For example:

  • Sweden SKF 50BER10H:
    • D = two bearings,
    • T = three bearings,
    • Q = four bearings,
    • P = five bearings.

The suffix letters for pairing method in angular contact ball bearings

The suffix letters for pairing method vary by brand. For example:

  • Sweden SKF 50BER10H:
    • B = back-to-back,
    • F = face-to-face,
    • T = tandem,
    • BT = back-to-back tandem,
    • FT = face-to-face tandem,
    • BC = back-to-back paired,
    • FC = face-to-face paired.
  • Germany FAG 50BER10H:
    • U = universal single,
    • DU = two universal singles,
    • DB = back-to-back,
    • DT = tandem,
    • DF = face-to-face,
    • TU = three universal singles,
    • TBT = triple matched,
    • TT = triple matched,
    • TFT = triple matched,
    • QBC = quadruple matched,
    • QFC = quadruple matched,
    • QT = quadruple matched,
    • QBT = quadruple matched,
    • QFT = quadruple matched,
    • PBC = quintuple matched,
    • PFC = quintuple matched,
    • PT = quintuple matched,
    • PBT = quintuple matched,
    • PFT = quintuple matched.
  • Japan NSK 50BER10H:
    • SU = universal single,
    • DU = two universal singles,
    • DB = back-to-back,
    • DF = face-to-face,
    • DT = tandem,
    • DBD = triple matched,
    • DFD = triple matched,
    • DTD = triple matched,
    • DBB = quadruple matched,
    • DFF = quadruple matched,
    • DBT = quadruple matched,
    • DFT = quadruple matched,
    • DTT = quadruple matched.

The suffix letters for bearing type in angular contact ball bearings

The suffix letters for bearing type vary by brand. For example:

  • Germany FAG 50BER10H:
    • T = phenolic resin outer ring guided,
    • DLR = annular groove with drilled holes and O-ring,
    • 2RSD = double-sided seals.
50BER10H
The outer ring is made of high-purity special high-quality bearing steel processed by high-speed forging + cold rolling process, and the raceway surface is carbonitrided.
Glass fibre reinforced PA66 cage. Glass fibre reinforced PEEK cage, Machined brass cage, Stamped steel cage,Stamped brass cage, etc.
The inner ring is made of high-purity special high-quality bearing steel processed by high-speed forging + cold rolling process, and the raceway surface is carbonitrided.
Steel balls are G10 and above grade products, ensuring the steel ball material and processing accuracy.
Grease is for sealed bearing type, and anti-rust oil is for open-type bearings.
