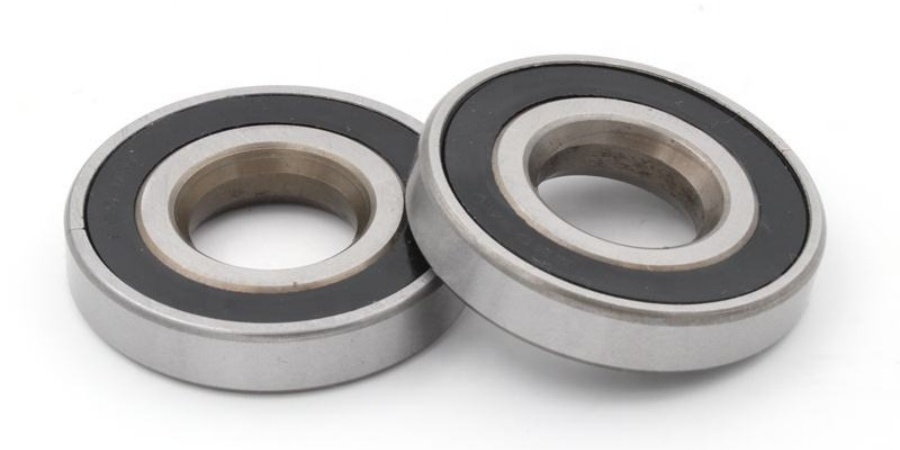

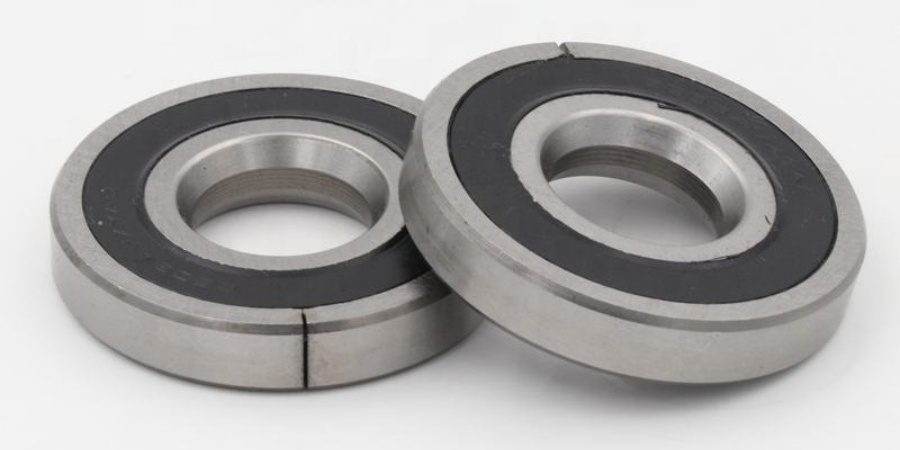

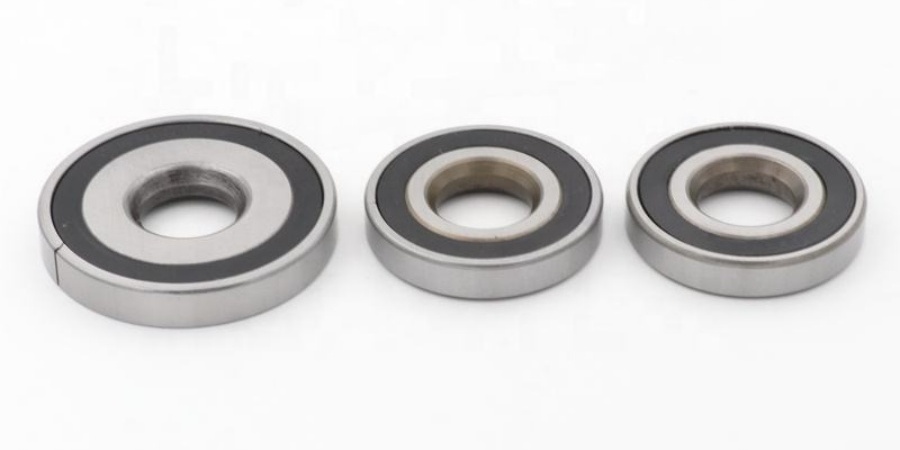

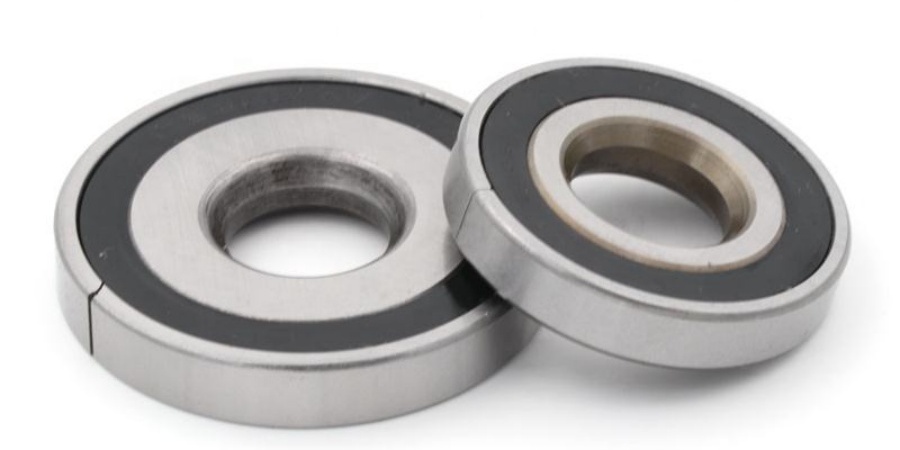

What is 6603 AV/YA2 2RS Deep Groove Ball Bearing for Weaving and Printing Machine?

Within the relentless hum and rhythmic clatter of modern weaving and printing machines, countless components work in concert to transform threads and pigments into intricate fabrics and vibrant patterns. Among these unsung heroes, bearings play a pivotal role, ensuring smooth rotation, precise alignment, and reliable power transmission. One specific type frequently encountered in these demanding environments is the 6603 AV/YA2 2RS Deep Groove Ball Bearing. More than just a part number, this designation signifies an engineering solution tailored to the unique rigors of textile production. Let's unravel what this bearing is and why it's crucial for weaving and printing.

Breaking Down the Code: Anatomy of 6603 AV/YA2 2RS

1. 6603: This is the fundamental bearing designation.

       Size: It indicates a bearing with a 35 mm bore diameter (d), an outer diameter (D) of 62 mm, and a width (B) of 14 mm. This compact, medium-sized bearing is suitable for various shafts and housings within textile machinery frames, guide rollers, tensioners, and auxiliary drives.

       Type: Implicitly, the “66" series signifies a standard Deep Groove Ball Bearing. This is the most versatile and common type, capable of handling significant radial loads and moderate axial (thrust) loads in both directions simultaneously – a common requirement in complex machinery with changing forces.

2. AV/YA2: This suffix is the critical differentiator for textile applications.

       AV (or YA): This typically denotes bearings manufactured from Vacuum Degassed Steel (VD Steel). Standard bearing steel (like 52100/100Cr6) is good, but VD steel undergoes a special melting process under vacuum. This dramatically reduces gas content (oxygen, hydrogen) and non-metallic inclusions within the steel matrix.

       YA2: This suffix specifies the special heat treatment applied to the VD steel. While exact proprietary processes vary by manufacturer, "YA2" generally signifies:

       Enhanced Hardness Profile: Optimized heat treatment ensures consistent, high hardness (typically 58-64 HRC) deep into the raceways and balls, maximizing resistance to wear and fatigue.

Improved Microstructure: The process refines the steel's grain structure, further boosting toughness and fatigue life.

Dimensional Stability: Reduced internal stresses from the heat treatment minimize the risk of dimensional change during operation, crucial for precision machinery.

       Combined Benefit (AV/YA2): The synergy of VD steel and the YA2 heat treatment results in bearings with significantly extended operational life, especially under conditions involving vibration, shock loads, contamination, and marginal lubrication – hallmarks of textile mill environments. They offer superior resistance to fatigue spalling (pitting on raceways) and brinelling (dent marks from shock).

3. 2RS: This suffix defines the sealing.

       2: Indicates two seals.

       RS: Stands for Rubber Seals with a steel insert for reinforcement and secure fit in the outer ring groove.

       Function: These Nitrile Butadiene Rubber (NBR) contact seals form a physical barrier against contaminants (dust, lint, fibre fly, liquid splashes, ink mist) and help retain lubrication (grease) inside the bearing. This is absolutely critical in weaving and printing, where airborne fibres and chemical mists are pervasive threats leading to premature bearing failure through abrasive wear and lubrication breakdown.

Why the 6603 AV/YA2 2RS is Tailored for Weaving & Printing Machines

Weaving and printing machines present a uniquely hostile environment for bearings:

1. High Contamination:

       Weaving: Constant generation of fine lint, dust, and fibre fragments (fly). Sizing chemicals and humidity are often present.

       on a rotary Ink mist, solvent vapors, paper dust, and damp conditions (especially in rotary screen or certain digital printers).

       Solution: The 2RS seals are the first line of defense, physically blocking these contaminants from entering the bearing's sensitive internal components (raceways, balls, cage).

2. Vibration and Shock Loads:

       Weaving: Rapid shuttle movements (in traditional looms), beat-up forces, shedding motions, and tension variations create significant vibration and intermittent shocks.

       Printing: Roller impacts, doctor blade oscillations, substrate tension fluctuations, and high-speed starts/stops generate vibration and shock.

       Solution: The AV/YA2 material and heat treatment provide the enhanced fatigue strength and toughness necessary to withstand these dynamic loads without developing cracks, spalling, or brinelling, which standard bearings would succumb to faster.

3.  High Speeds and Continuous Operation:

       Modern textile machinery operates at ever-increasing speeds for productivity. Bearings must run smoothly and generate minimal heat under these conditions for 24/7 operation.

       Solution: The deep groove design is inherently good for high speeds. The optimized AV/YA2 material ensures dimensional stability and minimizes the risk of thermal distortion under load. High-quality grease filling, compatible with the seals and operating conditions, reduces friction and wear.

4. Moderate Loads with Complexity:

       Bearings in these machines often face combined radial loads (from belt tension, roller weight, gear forces) and axial loads (from misalignment, thrust components in drives).

       Solution: The deep groove ball bearing (6603) design is adept at handling this combination of loads efficiently. The robust construction supported by AV/YA2 ensures it carries these loads reliably over the long term.

5. Maintenance Challenges:

       Textile mills prioritize machine uptime. Bearings need to be reliable and have long service intervals. Frequent relubrication might not be feasible or desirable in many positions.

       Solution: The 2RS seals effectively retain the initial high-quality grease fill for extended periods, significantly prolonging relubrication intervals or even enabling "lubricated-for-life" operation in many positions within these machines. The AV/YA2 longevity reduces the frequency of bearing replacements.

Key Advantages Summarized for Textile Applications:

   Exceptional Contamination Exclusion: 2RS seals protect against lint, dust, ink, and moisture.

   Superior Fatigue Life & Durability: AV/YA2 material withstands vibration, shock, and harsh conditions far better than standard bearings.

   Enhanced Reliability & Uptime: Reduced failure rates mean less machine downtime for maintenance.

   Long Lubrication Life: Seals retain grease, minimizing maintenance needs.

   High-Speed Capability: Suitable for modern, fast-running machinery.

   Radial & Axial Load Capacity: Versatile for various mounting positions and load types.

Where You'll Find It (Typical Applications):

   Weaving Machines (Looms): Guide rollers, tension devices, let-off motions, take-up rolls, auxiliary shafts, gearbox supports, dobby or Jacquard mechanism linkages.

   Printing Machines (Rotary, Flatbed, Digital): Impression rollers, anilox rollers, plate cylinders, blanket cylinders, guide rollers, ink fountain rollers, doctor blade oscillating mechanisms, tension control rollers, auxiliary drives.

   Fabric Finishing Machines: Calendar rolls, stenters (chain guides, rollers), mercerizing ranges, coating applicator rollers.

Important Considerations:

   Quality Matters: The "AV/YA2" designation implies a premium bearing. Ensure sourcing from reputable manufacturers (SKF, FAG/INA, NSK, Timken, NTN, etc.) to guarantee the specified material properties and heat treatment are delivered.

   Proper Installation & Handling: Even the best bearing will fail prematurely if damaged during installation (hammer blows!), misaligned, or subjected to excessive preload. Use proper tools and techniques.

   Correct Lubrication: While the seals extend grease life, using the correct type and amount of high-quality grease compatible with the operating temperature and potential chemical exposure is vital.

   Environmental Limits: Verify the operating temperature range of the seals (typically NBR: -40°C to +120°C) and bearing material are suitable for the specific machine location.

Conclusion: More Than Just a Bearing

The 6603 AV/YA2 2RS Deep Groove Ball Bearing is not merely a commodity component; it's a precision-engineered solution designed for survival and performance in the challenging world of textile manufacturing. The combination of its robust size (6603), the contamination-fighting double rubber seals (2RS), and the high-performance vacuum-degassed steel with specialized heat treatment (AV/YA2) creates a bearing uniquely equipped to handle the vibration, shock, contamination, and continuous operation inherent in weaving and printing machines. By understanding the meaning behind its designation and its tailored advantages, maintenance engineers and machine designers can make informed choices that maximize equipment reliability, minimize costly downtime, and ensure the smooth, uninterrupted flow of fabric and print production. It truly is a silent workhorse, enabling the vibrant textiles we rely on every day.
