6004

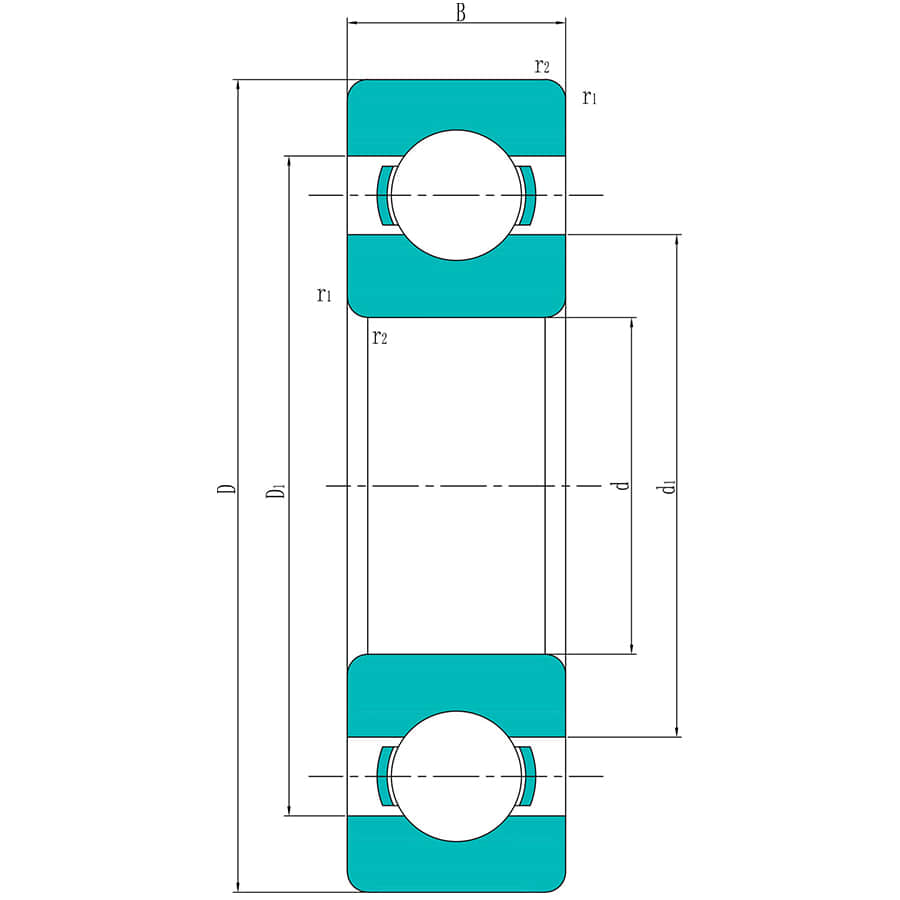

6004 Deep Groove Ball Bearing Product Features and Advantages

High Load Capacity: Capable of simultaneously bearing large radial and axial loads, suitable for various load conditions.

Simple Structure: Low manufacturing cost, high cost-effectiveness, simple design, easy to manufacture and install.

Self-Aligning Ability: Possesses a certain degree of self-aligning capability, automatically adjusting the relative position of the inner and outer rings, reducing precision requirements during installation.

Smooth Operation: Low friction coefficient, resulting in low noise during operation, suitable for high-speed applications.

Application: Widely used in electric motors, automotive industry, household appliances, industrial machinery, agricultural machinery, wind turbines, railway vehicles, construction machinery, and more.

QIBR - 6004 Deep Groove Ball Bearing Optimization

Optional Types: Can be supplied with CN or C3 group clearance, or customized clearance based on customer requirements.

Grease Replacement: Lubricants can be chosen based on bearing operational needs, such as SKF LGED 2, Mobil SHC Polyrex 102 EM, etc.

Cage Types: Cage type can be selected according to bearing operating conditions, such as two-piece riveted steel cage, one-piece stainless steel crown cage, one-piece polymer crown cage, machined brass cage, etc.

Further Customization: QIBR can design and optimize bearings according to customer drawings and operational requirements.

QIBR - 6004 Deep Groove Ball Bearing Quality Control

Dimension measurement: Multiple high-precision instruments are used to measure various dimensions of the bearing, with an accuracy of up to 0.001mm.

Rotation accuracy: A dial gauge measures minor surface flaws or deviations, with measurement accuracy reaching 0.001mm.

Hardness measurement: The surface hardness of the bearing is measured using a hardness tester, with an accuracy of ±0.5HRC.

Metallographic analysis: A professional metallographic microscope is used to analyze the internal metallographic structure of the metal.

Geometric tolerance: A profilometer is used to measure the geometric shape and relative position of the bearing.

Noise monitoring: A vibration meter monitors vibrations during operation, providing noise data with a noise vibration level not lower than Z3V3.

Raw material control: Steel and parts are sourced from ISO 14001-certified suppliers, ensuring product stability while promoting sustainable development.
