Non-geared bearings
The most commonly used materials and application selection references for QIBR thin section TT series bearings - Non Gear Type in commercial applications
QIBR thin section TT series bearings - Non Gear Type has a lighter weight and compact structure, suitable for limited space applications.
The steel ball and the ring are in four point contact, which can not only withstand axial and radial loads, but also withstand overturning moments. Both the inner and outer rings are designed with installation holes, making bearing installation convenient and fast.
QIBR thin section TT series bearings - Non Gear Type is usually made of AISI 52100 material, which has good wear resistance and strength, suitable for high load and high-speed operation environments.
QIBR thin section TT series bearings - Non Gear Type is made of AISI440C stainless steel material, suitable for applications in harsh environments.
QIBR thin section TT series bearings - Non Gear Type can also be coated with surface coatings to improve wear resistance and corrosion resistance, such as nitriding or chrome plating.
The material selection of QIBR thin section TT series bearings - Non Gear Type depends on specific application requirements, including load, speed, environmental conditions, and other factors, to ensure the performance and service life of the bearings during use. Taking into account the above factors, it is possible to effectively select bearings that are suitable for application needs.
QIBR

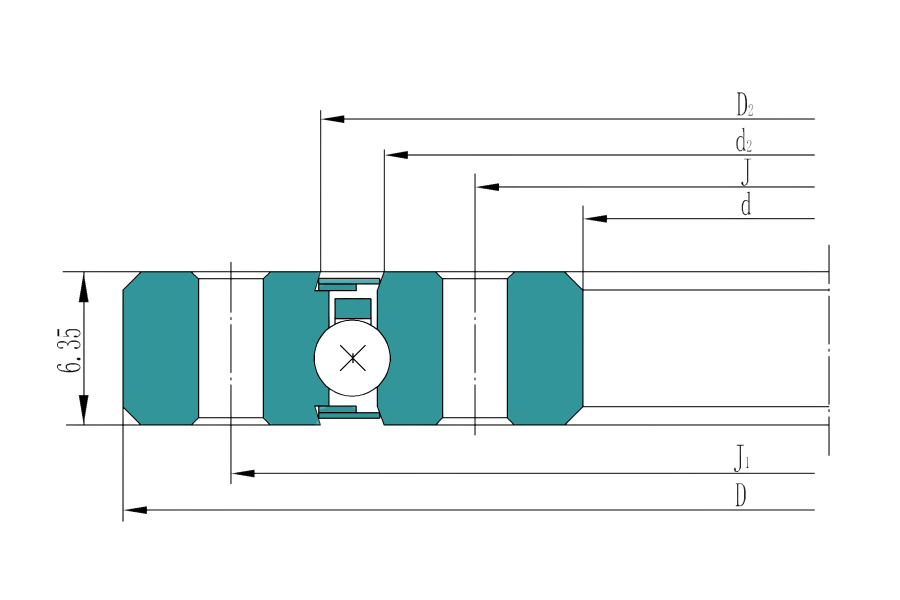

Model Selection
| NO. | Product | Product Number | Outer Diameter (D) | Bore | Inner Land | Outer Land |
|---|---|---|---|---|---|---|
| 1 |
|
T01-00225PAA | 3.000in. | 1.500in. | 2.148in. | 2.356in. |
| 2 |
|
T01-00275PAA | 3.500in. | 2.000in. | 2.648in. | 2.856in. |
| 3 |
|
T01-00325PAA | 4.000in. | 2.500in. | 3.148in. | 3.356in. |
| 4 |
|
T01-00375PAA | 4.500in. | 3.000in. | 3.648in. | 3.856in. |
| 5 |
|
T01-00425PAA | 5.000in. | 3.500in. | 4.148in. | 4.356in. |
| 6 |
|
T01-00450PAA | 5.250in. | 3.750in. | 4.398in. | 4.606in. |
| 7 |
|
T01-00475PAA | 5.500in. | 4.000in. | 4.648in. | 4.856in. |
| 8 |
|
T01-00500PAA | 5.750in. | 4.250in. | 4.898in. | 5.106in. |
| 9 |
|
T01-00525PAA | 6.000in. | 4.500in. | 5.148in. | 5.356in. |
| 10 |
|
T01-00575PAA | 6.500in. | 5.000in. | 5.648in. | 5.856in. |
| 11 |
|
T01-00625PAA | 7.000in. | 5.500in. | 6.148in. | 6.356in. |
| 12 |
|
T01-00675PAA | 7.500in. | 6.000in. | 6.648in. | 6.856in. |
Characteristics and Advantages of QIBR thin section TT series bearings - Non Gear Type
QIBR thin section TT series bearings - Non Gear Type has multiple significant characteristics and advantages, which solve key problems in various fields, mainly reflected in the following aspects;
1. QIBR thin section TT series bearings - Non Gear Type has installation advantages
QIBR thin section TT series bearings - Non Gear Type, with installation holes designed on the inner and outer rings, can simplify the installation process of the bearings, improve installation efficiency, and reduce the complexity and error rate of manual operation.
2. QIBR thin section TT series bearings - Non Gear Type with optimized structural design characteristics
QIBR thin section TT series bearings - Non Gear Type are designed with a sealed structure, suitable for use in polluted environments. We can also provide different internal clearances, lubrication methods, and cage structures according to the needs of different customers to meet diverse usage requirements.
3. QIBR thin section TT series bearings - Non Gear Type with Low Friction and High Efficiency Characteristics
QIBR thin section TT series bearings - Non Gear Type design reduces the friction torque of the bearings, making them suitable for use with low driving torque requirements and improving the overall operating efficiency of the equipment.
4. QIBR thin section TT series bearings - Non Gear Type Customization Service
QIBR thin section TT series bearings - Non Gear Type usually provides customized services, which can design bearings according to specific needs, meet the special requirements and operating conditions.
Performance Improvement and Solutions for QIBR thin section TT series bearings - Non Gear Type
1. Effectively improve material performance and enhance high load-bearing capacity
The production of QIBR thin section TT series bearings - Non Gear Type uses high-quality steel to manufacture the inner and outer rings and balls, and improves the surface hardness and material properties through precision heat treatment, enhancing the bearing's load capacity and service life. The design of QIBR thin section TT series bearings - Non Gear Type allows for a larger number of balls, providing higher load capacity. Adopting thin-walled design can reduce material usage and improve economy while maintaining strength.
2. Improve manufacturing accuracy and load capacity
The production of QIBR thin section TT series bearings - Non Gear Type adopts advanced processing equipment and technology from abroad, such as precision grinding, to improve the geometric accuracy of the inner and outer rings and balls, reduce processing errors, and thus improve the rotational accuracy and operational stability of the bearings.
3.Personalization
Provide personalized structural dimension solutions to meet specific performance requirements for QIBR thin section TT series bearings - Non Gear Type applications in different scenarios. This method not only enriches the standards of bearings, but also provides effective guidance for manufacturers to meet the personalized needs of users.
In summary, by optimizing materials, manufacturing accuracy, personalized design, and other measures, the performance of QIBR thin section TT series bearings - Non Gear Type can be significantly improved to meet increasingly demanding application requirements.
Main Application of QIBR thin section TT series bearings - Non Gear Type
Radar antenna
Radar antenna systems typically require a certain amount of weight and eccentric load to withstand. The QIBR thin-walled TT series bearings can withstand these loads while maintaining smooth and reliable rotation.
Robot
The design of QIBR thin-walled TT series bearings allows for high performance in limited space and is suitable for compact robot design, especially in narrow or complex environments.
Semiconductor Manufacturing Equipment
Positioning device
The QIBR thin-walled TT series bearings can provide very precise positioning support, which is very important for devices that require high-precision positioning, such as optical equipment, robotic arms, etc.
