What are the Pairing Configuration Of Angular Ball Contact Bearings?

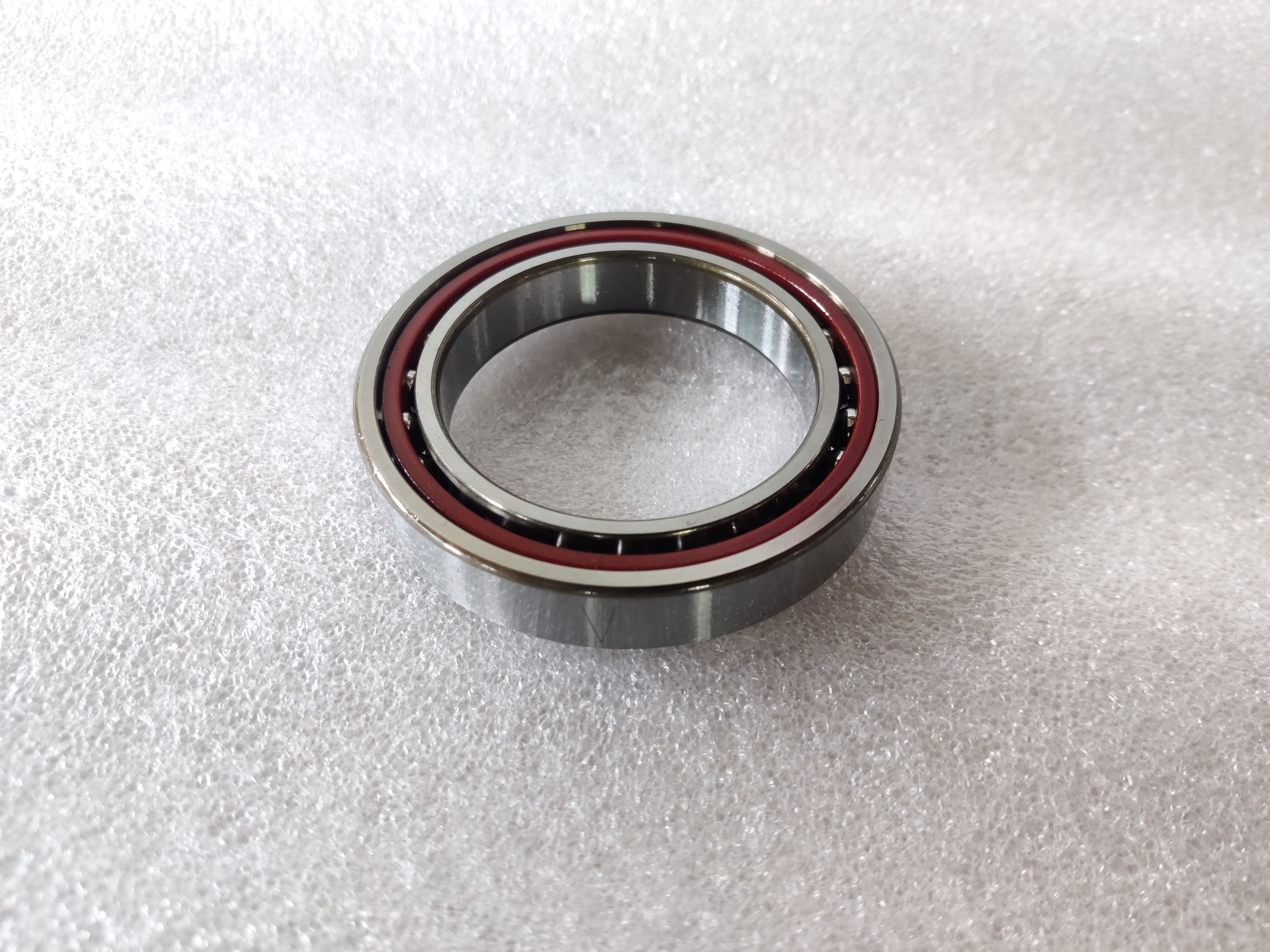

Angular contact ball bearings (ACBBs) are fundamental components in high-performance machinery, designed to handle combined radial and axial loads simultaneously. While a single bearing manages axial load primarily in one direction, pairing multiple bearings unlocks bidirectional thrust capacity, enhanced rigidity, improved running accuracy, and the ability to withstand complex moment loads. The specific arrangement of these bearings – their pairing configuration – is critical to achieving the desired performance characteristics.

Pairing Angular contact ball bearings (ACBBs) addresses key limitations:

1.  Bidirectional Axial Load: Single bearings handle thrust effectively in one direction only. Pairing creates systems capable of handling thrust from both sides.

2.  Enhanced Rigidity: Applying controlled axial preload eliminates internal clearance, drastically increasing system stiffness against deflection under load (crucial for precision machining and positioning).

3.  Improved Running Accuracy: Preload minimizes clearances, reducing runout and vibration for smoother, more accurate rotation.

4.  Moment Load Resistance: Specific configurations (like Back-to-Back or complex stacks) effectively resist tilting moments.

5.  Increased Load Capacity: Distributing loads across multiple bearings extends life and capability.

Preload: The Essential Ingredient

Regardless of configuration, preload is paramount. It’s a controlled internal axial force applied to the bearing set:

Light (L/A): Minimal stiffness, low friction/heat, suited for very high speeds.

Medium (M/B): Balanced stiffness and heat generation for general applications.

Heavy (H/C): Maximum stiffness, but significant heat/friction; requires robust cooling/lubrication.

Specific Classes (CA, CB, GA, GB): Manufacturer-defined precise preload magnitudes.

Decoding the Pairing Alphabet Soup: Configurations & Suffixes

Manufacturers use suffix codes added to the base bearing number to indicate the pairing arrangement and preload. While SKF codes are widely referenced, variations exist (FAG often uses different letters). Always consult manufacturer catalogs for definitive interpretation. Here's a breakdown of common configurations:

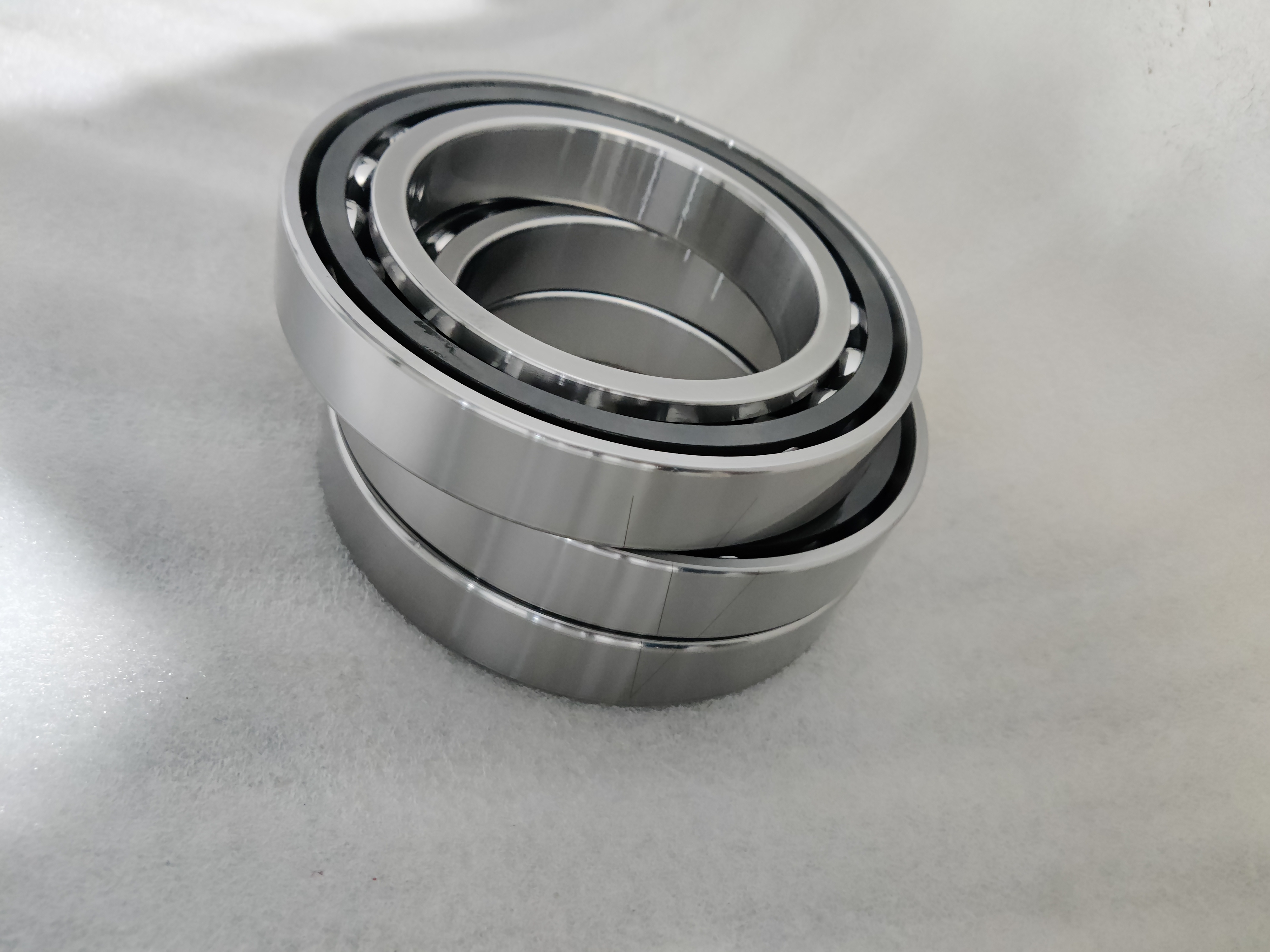

I. Basic Pair Configurations (Two Bearings) of Angular contact ball bearings (ACBBs):

1.  Back-to-Back (DB  / B ):

    Orientation: Wide faces (outer ring backs) face each other. Pressure lines converge.

    Characteristics: Highest moment stiffness and rigidity. Best thermal stability (shaft expansion reduces preload). Ideal for spindles and high rigidity/speed apps.

    Suffix: "DB" (SKF), "B"

2.  Face-to-Face (DF  / A ):

    Orientation: Narrow faces (outer ring fronts) face each other. Pressure lines diverge.

    Characteristics: Lower moment stiffness. Thermal sensitivity (shaft expansion increases preload). Slightly more compact. Better misalignment tolerance.

    Suffix: "DF" (SKF), "A"

3.  Tandem (DT  / T ):

    Orientation: Both bearings face the *same* direction (wide faces outward). Pressure lines parallel (same direction).

    Characteristics: High unidirectional thrust capacity. Minimal moment stiffness. Radial load sharing.

    Suffix: "DT" (SKF), "T"

4.  Universal Match / Duplex (DG  / G ):

    Orientation: Bearings ground to allow mounting in *any* configuration (DB, DF, or DT) without performance loss. Requires careful selection.

    Characteristics: Offers mounting flexibility. Used when the exact configuration might be finalized later or needs flexibility. Not inherently a specific load path like DB/DF/DT.

    Suffix: "DG" (SKF - often implies a pair suitable for DB/DF), "G" (FAG - Universal Match)

II. Triplet Configurations (Three Bearings):

Triplets combine basic pair types to handle higher loads or specific load combinations. Spacers are critical.

5.  Tandem-Back-to-Back (TBT ):

    Orientation: Two bearings in Tandem facing one direction, paired Back-to-Back with a third bearing facing the opposite direction.

    Characteristics: High unidirectional thrust capacity (from tandem pair) combined with good rigidity and bidirectional moment capacity (from DB pair).

    Suffix: "TBT"

6.  Tandem-Face-to-Face (TFT ):

    Orientation: Two bearings in Tandem facing one direction, paired Face-to-Face with a third bearing facing the opposite direction.

    Characteristics: High unidirectional thrust capacity (tandem) combined with bidirectional thrust capacity (DF pair). Lower moment stiffness than TBT. More sensitive to thermal expansion.

    Suffix: "TFT"

7.  Tandem-Tandem (TT ):

    Orientation: Three bearings *all* facing the same direction in Tandem.

    Characteristics: Very high unidirectional thrust capacity. Minimal moment stiffness.

    Suffix: "TT"

8.  Universal Triplet (TG ): Less common. Bearings ground for potential triplet use, but specific arrangement must be defined during mounting. Suffix: "TG"

III. Quadruplet Configurations (Four Bearings):

Quadruplets provide maximum rigidity and load capacity for the most demanding applications.

9.  Quadruplex Back-to-Back (QBC ):

    Orientation: Two Back-to-Back pairs stacked together. The most common quadruplet configuration.

    Characteristics: Extremely high rigidity and moment load capacity. Excellent bidirectional thrust capacity. Used in heavy-duty spindles.

    Suffix: "QBC"

10. Quadruplex Face-to-Face (QFC ):

    Orientation: Two Face-to-Face pairs stacked together.

    Characteristics: Very high bidirectional thrust capacity. Lower rigidity/moment capacity than QBC. Higher thermal sensitivity.

    Suffix: "QFC"

11. Quadruplex Tandem-Back-to-Back (QBT ):

    Orientation: A Tandem pair stacked with a Back-to-Back pair.

    Characteristics: Combines very high unidirectional thrust (Tandem) with high rigidity/bidirectional moment capacity (DB).

    Suffix: "QBT"

12. Quadruplex Tandem-Face-to-Face (QFT ):

    Orientation: A Tandem pair stacked with a Face-to-Face pair.

    Characteristics: Combines very high unidirectional thrust (Tandem) with good bidirectional thrust capacity (DF).

    Suffix: "QFT"

13. Quadruplex Tandem (QT ):

    Orientation: Four bearings *all* in Tandem facing the same direction.

    Characteristics: Exceptionally high unidirectional thrust capacity. Minimal moment stiffness.

    Suffix: "QT"

14. Universal Quadruplex (QG ): Bearings ground for potential quadruplet use. Specific arrangement defined during mounting. Suffix: "QG"

IV. Quintuplet Configurations (Five Bearings):

Quintuplets represent the pinnacle for ultimate rigidity and load capacity, typically in massive spindles.

15. Quintuplex Back-to-Back (PBC ):

    Orientation: Standard configuration often involves multiple DB pairs stacked.

    Characteristics: Maximum possible rigidity and moment capacity.

    Suffix: "PBC" ("P" often denotes quintuplex in SKF codes)

16. Quintuplex Face-to-Face (PFC ):

    Orientation: Multiple DF pairs stacked.

    Characteristics: Maximum bidirectional thrust capacity.

    Suffix: "PFC"

17. Quintuplex Tandem-Back-to-Back (PBT ):

    Orientation: Combines Tandem pairs with DB pairs.

    Characteristics: Extreme unidirectional thrust combined with extreme rigidity.

    Suffix: "PBT"

18. Quintuplex Tandem-Face-to-Face (PFT ):

    Orientation: Combines Tandem pairs with DF pairs.

    Characteristics: Extreme unidirectional thrust combined with high bidirectional thrust.

    Suffix: "PFT"

19. Quintuplex Tandem (PT ):

    Orientation: Five bearings in Tandem.

    Characteristics: Maximum possible unidirectional thrust capacity.

    Suffix: "PT"

20. Universal Quintuplex (PG ): Bearings ground for potential quintuplet use. Suffix: "PG"

Mounting State Suffixes:

"U": Unmounted pair/set. Bearings are matched but not preloaded; user applies preload during mounting (e.g., "DBU", "TBTU").

"DU": Mounted and pre-adjusted unit. Factory-preloaded and ready for installation as a complete unit (spacers/locknuts included) ensuring preload is maintained (e.g., "DBDU", "QBCDU").

Critical Considerations for Complex Pairing

1.  Precision Spacers: Essential for maintaining correct distances between rings and achieving specified preload. Precision grinding is critical ("S" suffix often indicates spacer requirement).

2.  Thermal Management: Preloaded stacks generate significant heat. Advanced lubrication (oil jet) and cooling systems are mandatory, especially for heavy preload and high speeds.

3.  Manufacturer Specificity: Codes like "B" (FAG Back-to-Back) differ from "DB" (SKF). Precision classes (P4, P4A, P2) and specific preload classes (CA, GA) vary. Always use the manufacturer's technical documentation.

4.  Mounting Expertise: Installing and preloading complex sets requires specialized tools, procedures, and measurement techniques (dial indicators, load cells). Pre-set units ("DU") simplify installation.

5.  Load & Stiffness Analysis: Complex stacks significantly alter system stiffness and load distribution. Sophisticated engineering analysis is often required.

Conclusion

The pairing configuration of angular contact ball bearings (ACBBs) transforms them from simple components into sophisticated, application-specific systems. From the fundamental DB, DF, DT, and DG pairs to the highly complex TBT, QBC, and PBC stacks, each arrangement offers distinct advantages in rigidity, thrust capacity, moment resistance, and thermal behavior. Mastering the extensive suffix coding system ("DB", "DF", "DT", "DG", "TBT", "TFT", "TT", "TG", "QBC", "QFC", "QBT", "QFT", "QT", "QG", "PBC", "PFC", "PBT", "PFT", "PT", "PG", plus "U"/"DU" and preload codes) is essential for engineers specifying, installing, and maintaining high-performance machinery in industries like aerospace, precision manufacturing, robotics, and energy. Success hinges on meticulous attention to manufacturer specifications, precise preload control, thermal management, and expert installation practices tailored to the unique demands of each complex bearing arrangement.
